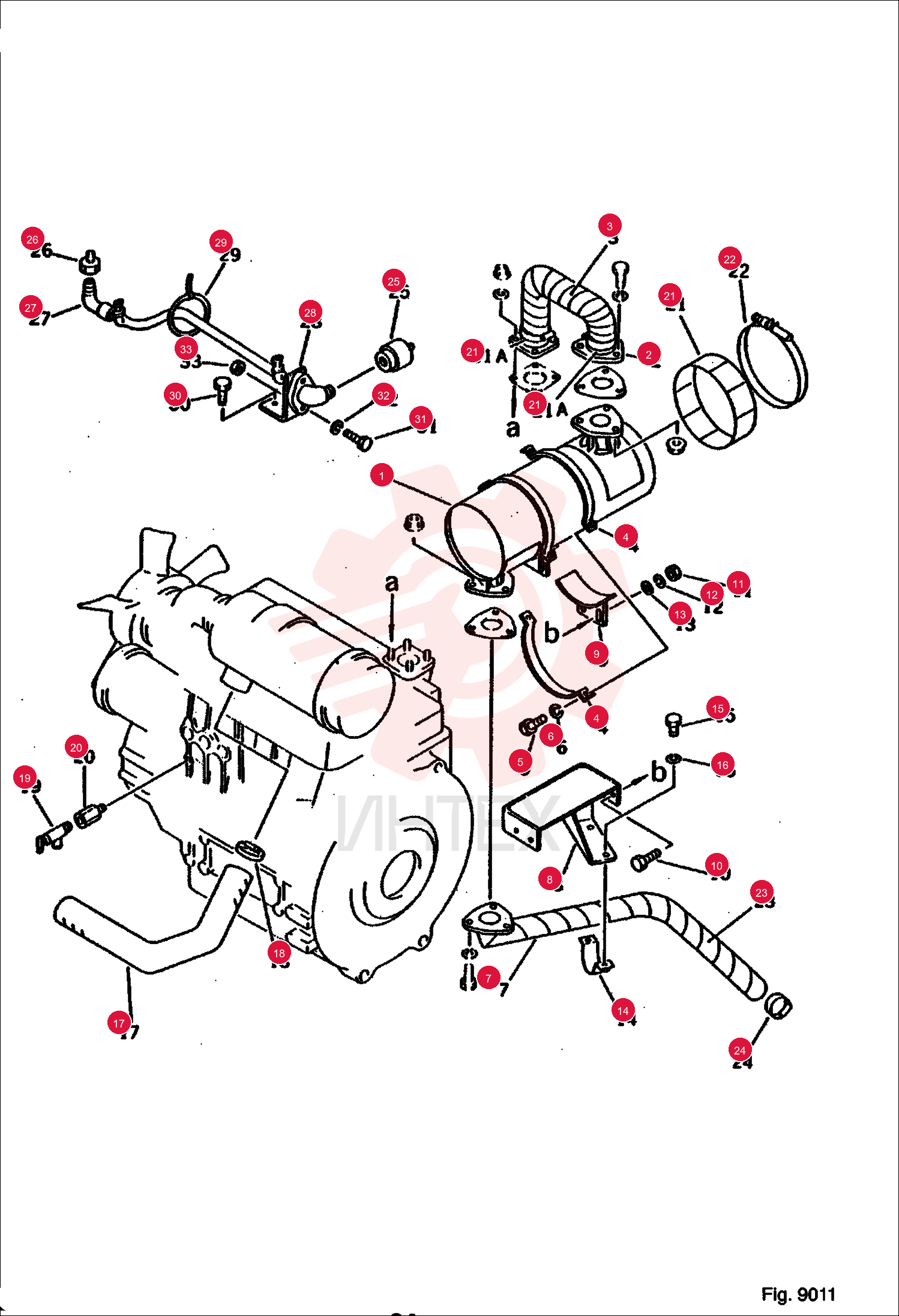

MUFFLER 6638522

MUFFLER 6638522

MUFFLER 6638522

1 6638522

  • 6638522 - MUFFLER

2 6638523

  • 6638523 - BAND

3 6638601

  • 6638601 - TAPE

4 6638527

  • 6638527 - CLAMP

5 6636960

  • 6636960 - BOLT

6 6637134

  • 6637134 - WASHER

7 6638607

  • 6638607 - PIPE

8 6638526

  • 6638526 - BRACKET

9 6638524

  • 6638524 - BRACKET

10 6636967

  • 6636967 - BOLT

11 6637108

  • 6637108 - NUT

12 6637135

  • 6637135 - WASHER

13 6637157

  • 6637157 - WASHER

14 6638525

  • 6638525 - CLAMP

15 6636966

  • 6636966 - BOLT

16 6637135

  • 6637135 - WASHER

17 6638608

  • 6638608 - HOSE

18 6637629

  • 6637629 - CLAMP

19 6639238

  • 6639238 - VALVE

20 6638600

  • 6638600 - NIPPLE

21 6648816

  • 6648816 - CLAMP

22 6642789

  • 6642789 - BAFFLE

23 6642114

  • 6642114 - CLAMP

24 6638962

  • 6638962 - TAPE

25 6637627

  • 6637627 - CLAMP

26 6637730

  • 6637730 - GAUGE
  • DU

27 6638602

  • 6638602 - NIPPLE

28 6637731

  • 6637731 - HOSE

29 6638603

  • 6638603 - BRACKET

30 6637682

  • 6637682 - BAND

31 6636958

  • 6636958 - BOLT

32 6636954

  • 6636954 - BOLT

33 6637133

  • 6637133 - WASHER

34 6637106

  • 6637106 - NUT
