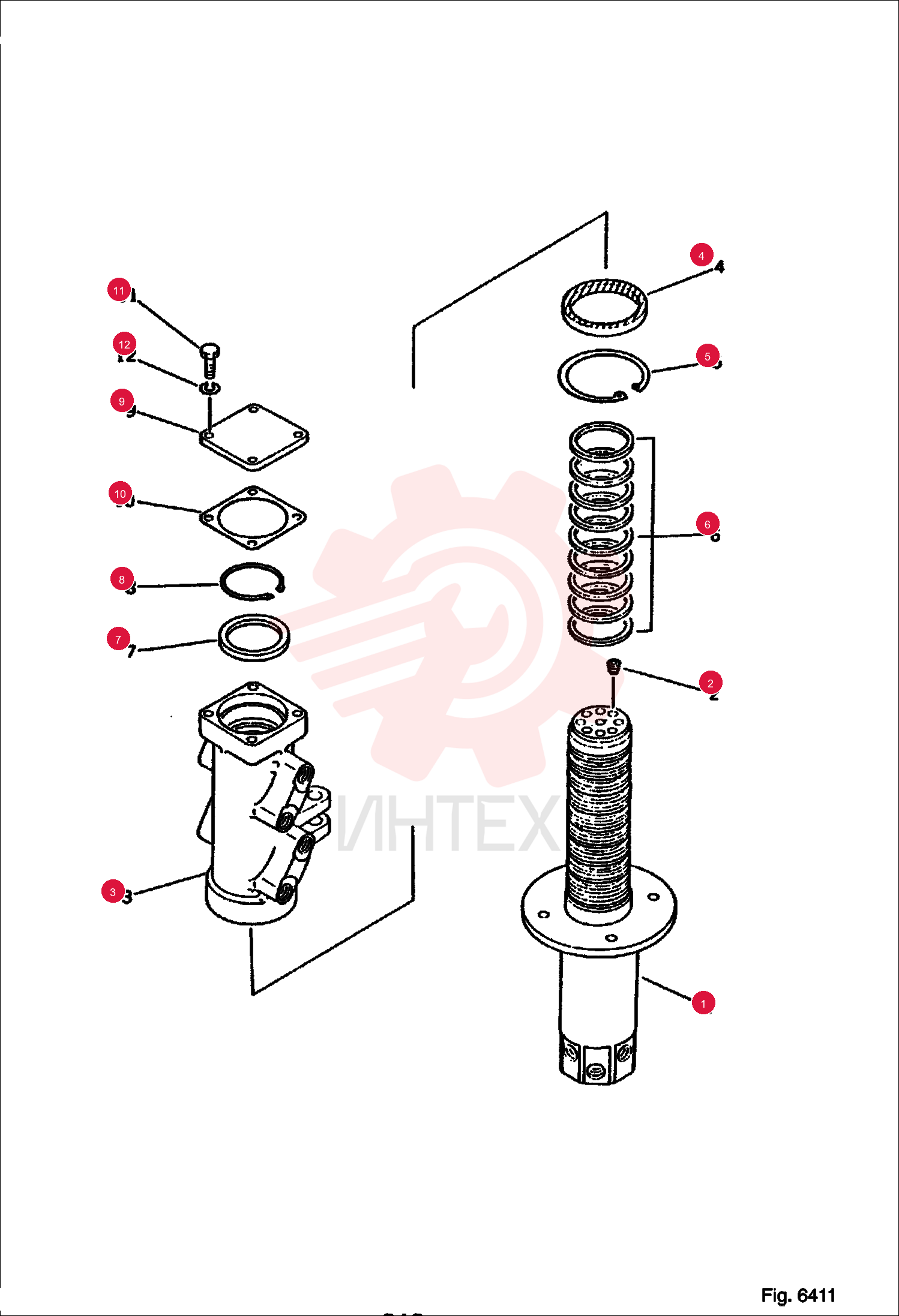

SWIVEL JO 6645805

SWIVEL JO 6645805

SWIVEL JO 6645805

1 6645805

  • 6645805 - SWIVEL JO

2 6640274

  • 6640274 - SHAFT

3 6640292

  • 6640292 - PLUG

4 6640280

  • 6640280 - SEAL

5 6637236

  • 6637236 - RING
  • SNAP

6 6640279

  • 6640279 - SEAL

7 6640278

  • 6640278 - RING

8 6637226

  • 6637226 - RING
  • SNAP

9 6640277

  • 6640277 - COVER

10 6640282

  • 6640282 - GASKET

11 6636968

  • 6636968 - BOLT

12 6637135

  • 6637135 - WASHER
