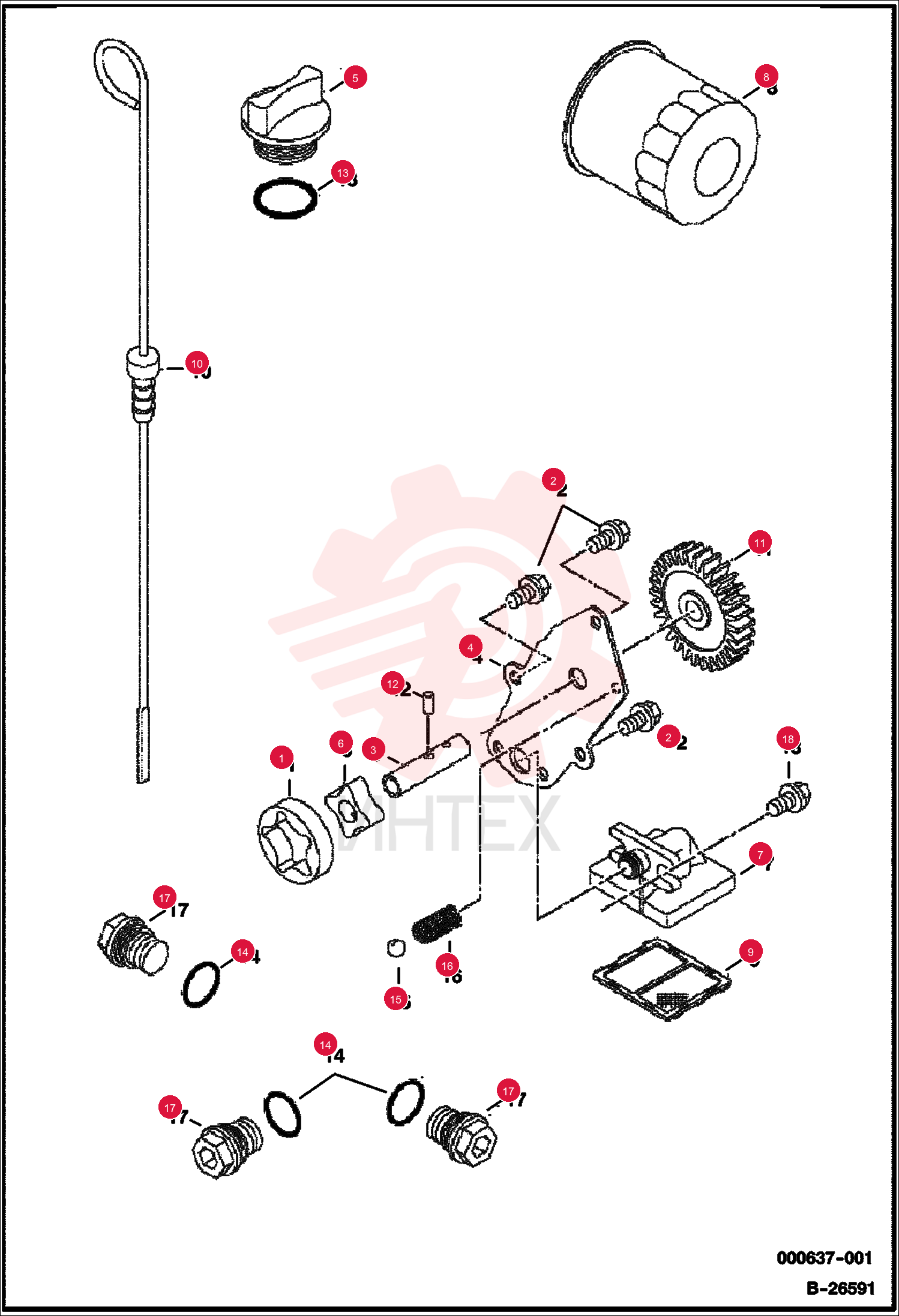

OIL PUMP AND ROTOR 101648203CC (1)

OIL PUMP AND ROTOR 101648203CC (1)

OIL PUMP AND ROTOR 101648203CC (1)

1 101648203CC

  • 101648203CC - OIL PUMP AND ROTOR
  • W/Ref. 6 - Was 101648202CC

2 29CM612

  • 29CM612 - BOLT
  • FLANGED

3 102997101CC

  • 102997101CC - FILLER CAP

4 103887901CC

  • 103887901CC - FILTER
  • OIL ENG
  • Was 1016467CC

5 102997701CC

  • 102997701CC - OIL GAUGE

6 102997801CC

  • 102997801CC - GEAR
  • NLA - Was 102997801CC

7 102998001CC

  • 102998001CC - O-RING

8 102998401CC

  • 102998401CC - O-RING

9 102998101CC

  • 102998101CC - DRAIN PLUG

10 103300301CC

  • 103300301CC - BOLT
