Bobcat
/
2200
/

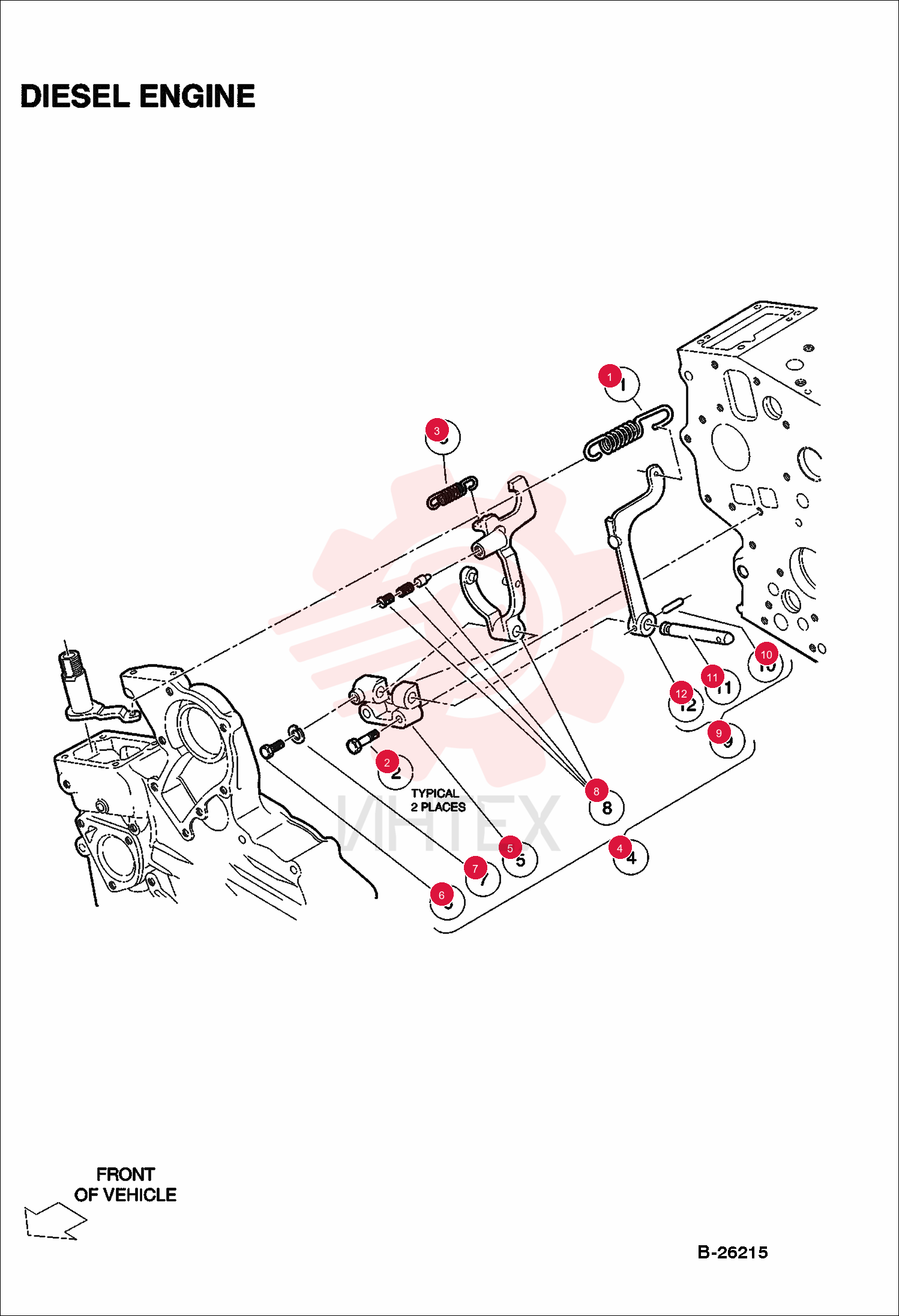

SPRING 102635101CC (2)

SPRING 102635101CC (2)

SPRING 102635101CC (2)

1 102635101CC

  • 102635101CC - SPRING

2 102636301CC

  • 102636301CC - BOLT
  • NLA - Was 102636301CC

3 102800201CC

  • 102800201CC - SPRING

4 102800301CC

  • 102800301CC - GOVERNOR FORK
  • W/Ref. 5-9

5 6670454

  • 6670454 - HOLDER
  • LEVER
  • Was 102636201CC

6 6599066

  • 6599066 - BOLT
  • Was 102636401CC

7 6670779

  • 6670779 - WASHER
  • Was 102636501CC

8 6670431

  • 6670431 - PIN
  • Was 102633601CC

9 6670453

  • 6670453 - SHAFT
  • Was 102636601CC
