Bobcat
/
2200
/

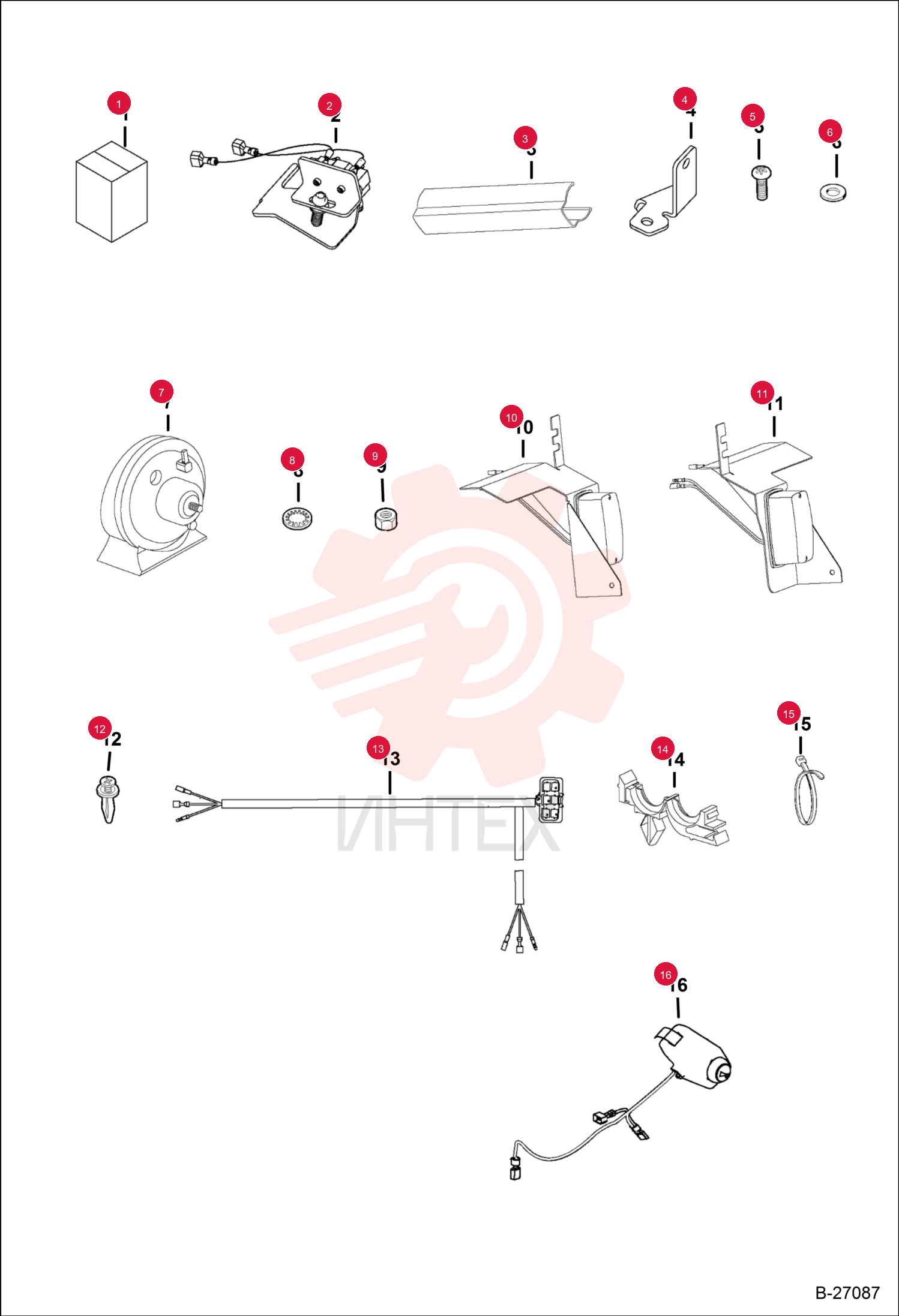

STD LIGHT PKG 102483201CC

STD LIGHT PKG 102483201CC

STD LIGHT PKG 102483201CC

1 102483201CC

  • 102483201CC - STD LIGHT PKG
  • NLA - Ref. 2-16 - Was 102483201CC

2 102711901CC

  • 102711901CC - BRAKE SWITCH ASSY

3 102529202CC

  • 102529202CC - WIRE COVER

4 102671101CC

  • 102671101CC - BRACKET
  • NLA - Was 102671101CC

5 102025801CC

  • 102025801CC - SCREW

6 1014306CC

  • 1014306CC - WASHER
  • 1/4" TYPE B FLAT

7 4029CC

  • 4029CC - HORN

8 102741801CC

  • 102741801CC - TAILLIGHT REAR
  • driver side

9 102741802CC

  • 102741802CC - TAILLIGHT REAR
  • passenger side

10 102967901CC

  • 102967901CC - SCREW
  • Was 102025701CC

11 102686901CC

  • 102686901CC - WIRE HARNESS
  • taillight

12 102615001CC

  • 102615001CC - CLIP

13 8639CC

  • 8639CC - TIE WRAP
  • 11" NYLON
