Bobcat
/
2200
/

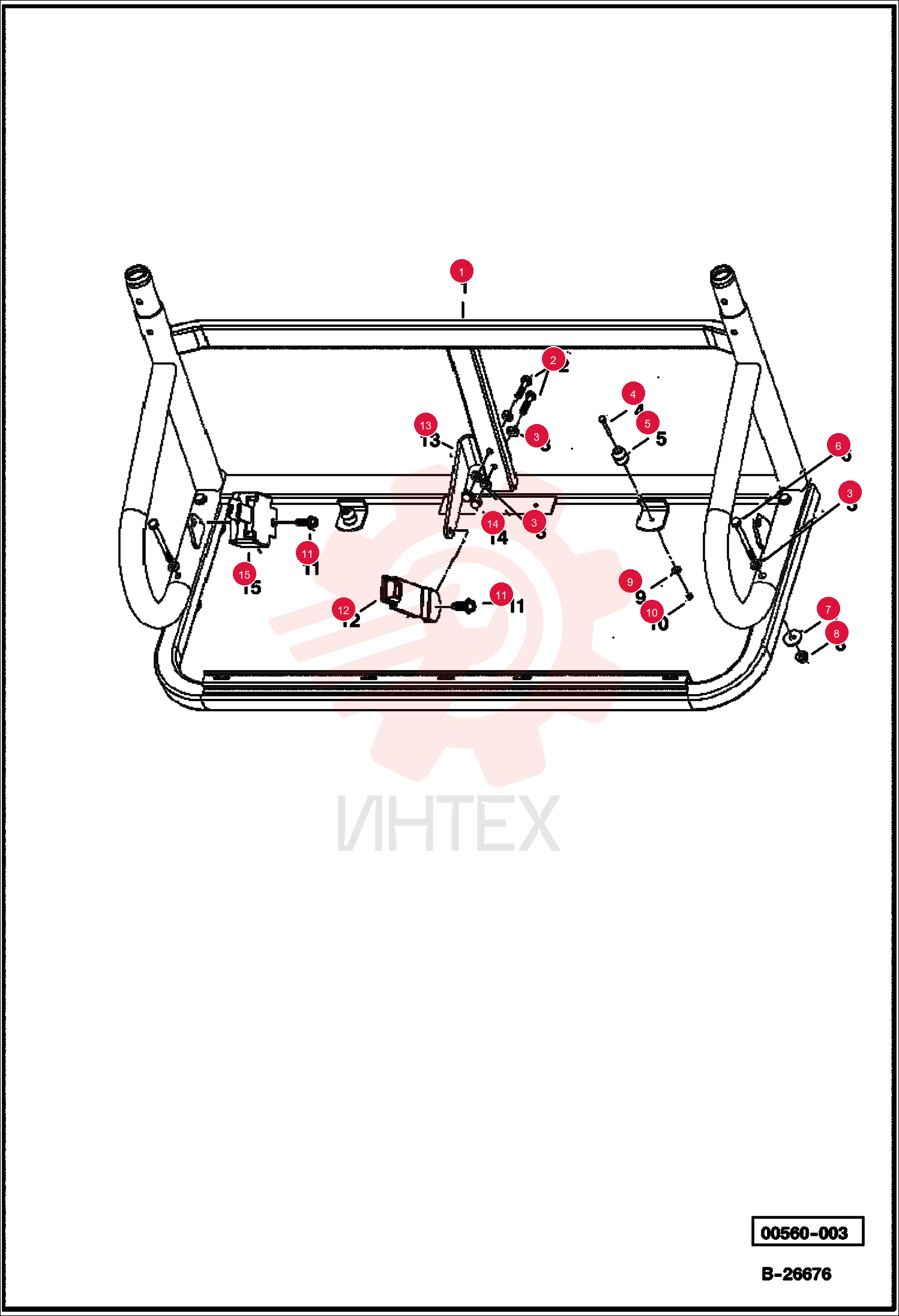

SUPPORT, SEAT 103361701CC

SUPPORT, SEAT 103361701CC

SUPPORT, SEAT 103361701CC

1 103361701CC

  • 103361701CC - SUPPORT
  • SEAT
  • Was 103244501CC

2 102732401CC

  • 102732401CC - BOLT

3 102718101CC

  • 102718101CC - WASHER

4 96742515CC

  • 96742515CC - SCREW

5 102059001CC

  • 102059001CC - SEAT HOLDER BASE

6 102491301CC

  • 102491301CC - BOLT
  • Was 102732301CC

7 102491501CC

  • 102491501CC - WASHER

8 102617201CC

  • 102617201CC - NUT

9 332CC

  • 332CC - WASHER
  • 1/4 TYPE A NARROW FLAT

10 101887601CC

  • 101887601CC - LOCKNUT
  • M6-1.00 NYLON INSERT

11 102671201CC

  • 102671201CC - SCREW

12 103529701CC

  • 103529701CC - BELT
  • SEAT
  • buckle - Was 102447601CC

13 103216401CC

  • 103216401CC - NUT
  • Was 102718201CC

14 103529801CC

  • 103529801CC - RETRACTOR
  • BELT SEAT
  • Was 102447602CC
