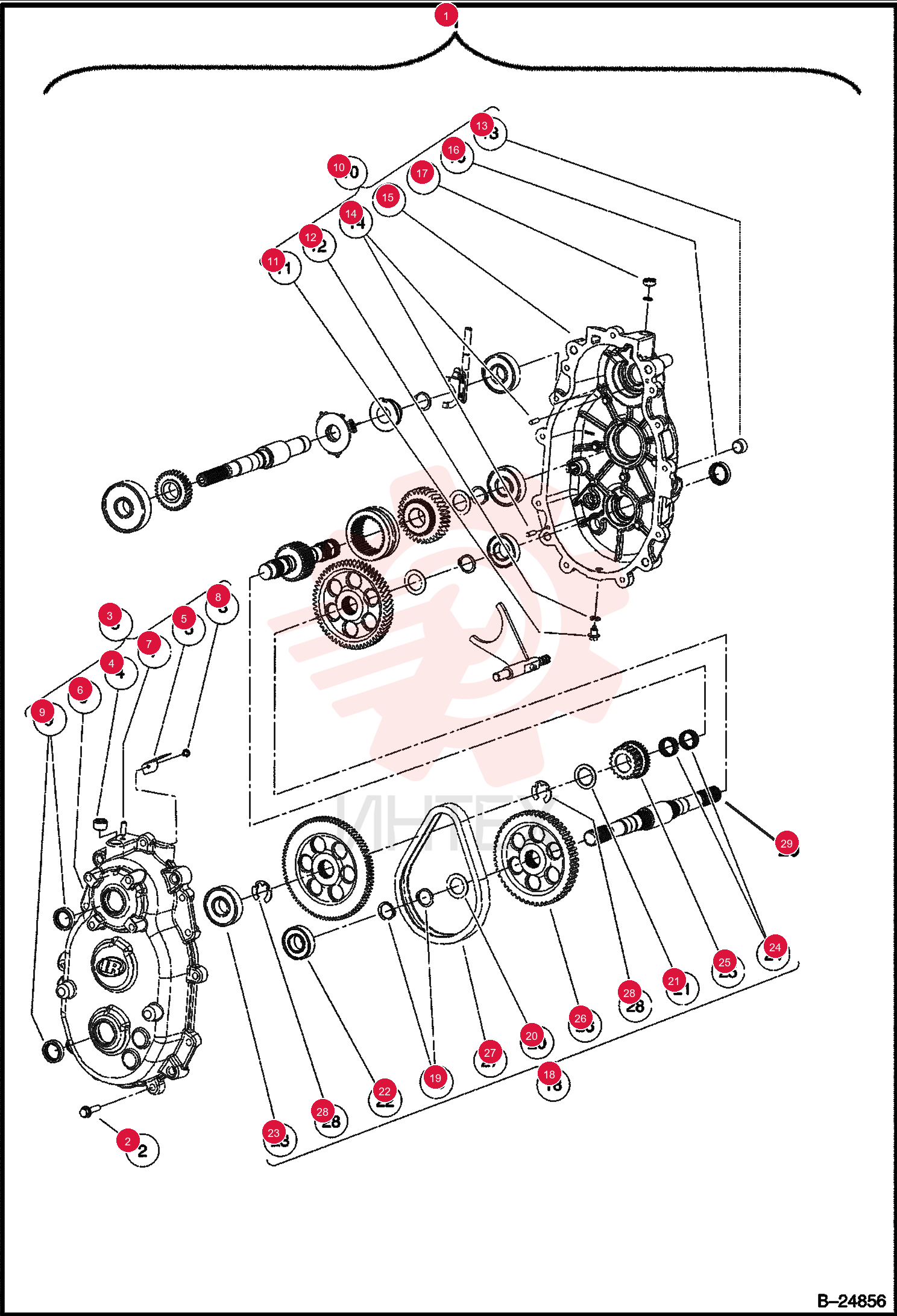

TRANSMISSION, COMPLETE ASSY 102369401CC (3)

TRANSMISSION, COMPLETE ASSY 102369401CC (3)

TRANSMISSION, COMPLETE ASSY 102369401CC (3)

1 102369401CC

  • 102369401CC - TRANSMISSION
  • COMPLETE ASSY
  • Assy - same transmission for gas & diesel - W/Ref. 2-18 also includes parts on B24857 & B24754

2 102693301CC

  • 102693301CC - SCREW

3 102764201CC

  • 102764201CC - REAR GEARCASE ASSY
  • W/Ref. 4-9

4 102694201CC

  • 102694201CC - PLUG SQUARE

5 102698301CC

  • 102698301CC - VENT TRANS

6 102699401CC

  • 102699401CC - SEAL

7 102693401CC

  • 102693401CC - PLUG

8 102693501CC

  • 102693501CC - WASHER

9 102694201CC

  • 102694201CC - PLUG SQUARE

10 102696101CC

  • 102696101CC - PIN DOWEL
  • NLA - Was 102696101CC

11 102699401CC

  • 102699401CC - SEAL

12 102721501CC

  • 102721501CC - SEAL LIP

13 102765201CC

  • 102765201CC - KIT REVERSE GEAR REPAIR
  • W/Ref. 19-28

14 102696201CC

  • 102696201CC - RING RETAINING EXT

15 102696501CC

  • 102696501CC - WASHER

16 102696701CC

  • 102696701CC - WASHER

17 102696801CC

  • 102696801CC - BEARING

18 102696901CC

  • 102696901CC - BEARING

19 102697101CC

  • 102697101CC - BEARING

20 102697101CC

  • 102697101CC - BEARING

21 102699701CC

  • 102699701CC - RING RETAINING

22 102698801CC

  • 102698801CC - SHAFT OUTPUT
