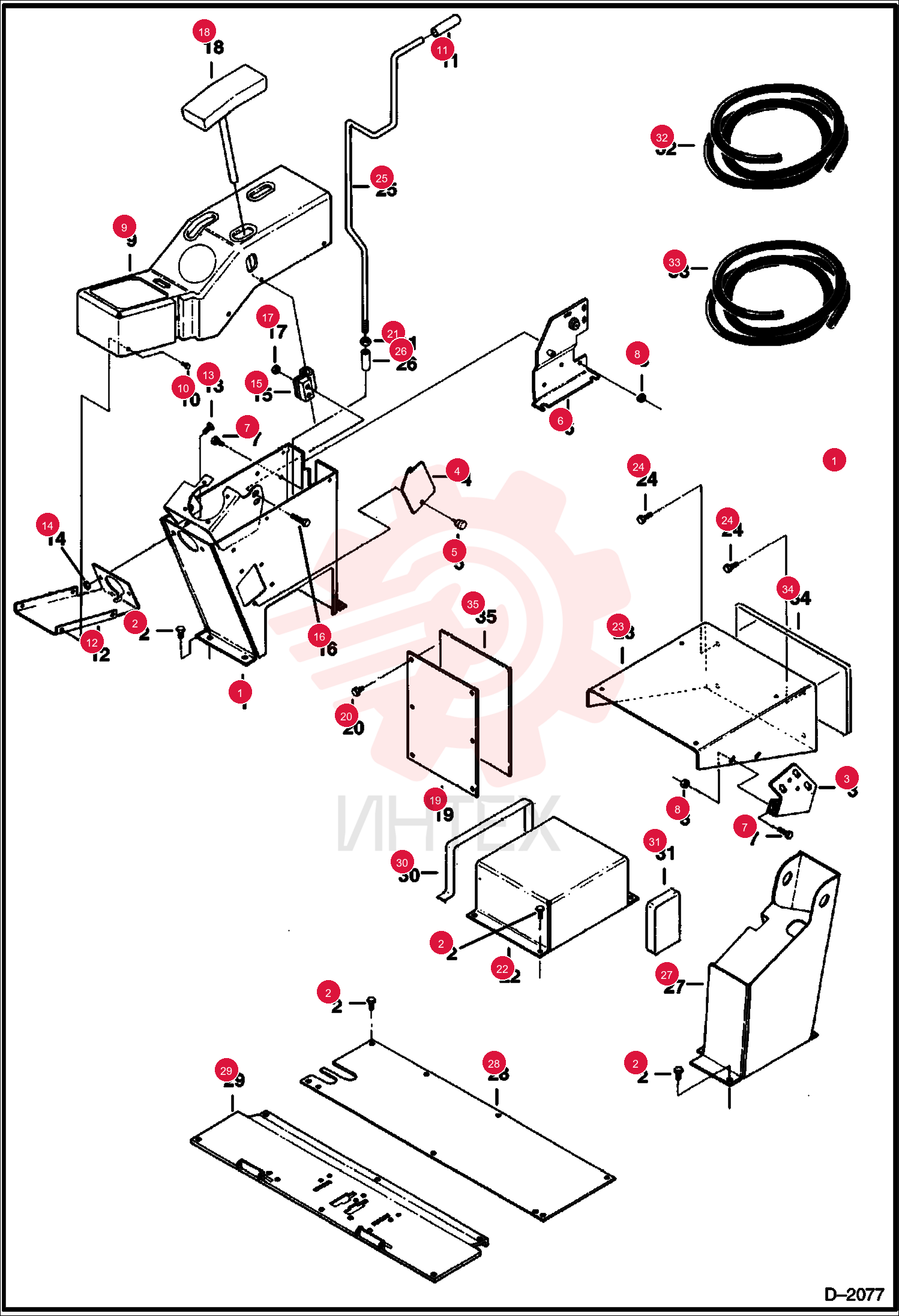

CONSOLE
1 6539785
- 6539785 - CONSOLE
- R.H.
2 6656151
- 6656151 - VALVE
- - control
3 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
- Was 1CM01030B
4 6537552
- 6537552 - BRACKET
5 6537544
- 6537544 - COVER
6 6631000
- 6631000 - THUMBSCRE
7 6537432
- 6537432 - BRACKET
- throttle & blade
8 29CM816
- 29CM816 - SCREW FLGD HEX CAP
- Was 1CM00816B
9 45DM8
- 45DM8 - NUT 10
- Was 1DM00008B
10 6596348
- 6596348 - COVER
- for ignition switch hole information - Was 6588771
11 29CM616
- 29CM616 - SCREW FLGD HEX CAP
- Was 1CM00616B
12 6537528
- 6537528 - BRACKET
- Gauge Panel
13 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
- Was 1CM01020B
14 1DM10
- 1DM10 - NUT
15 6537514
- 6537514 - MOUNT
- Arm Rest
16 1CM1045
- 1CM1045 - BOLT
17 49DM10
- 49DM10 - NUT
- Was 39DM00010B
18 6537510
- 6537510 - ARMREST ASSEMBLY
19 6535628
- 6535628 - PANEL
- Engine Access
20 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
- Was 1CM00820B
21 4DM12
- 4DM12 - NUT HEX
- Was 1DM12
22 6587618
- 6587618 - COVER
- Swing Motor - Was 6586944
23 6539788
- 6539788 - MOUNT
- seat - Was 6535509
24 29CM1030
- 29CM1030 - SCREW FLGD HEX CAP
- Was 1CM01030B
25 6537639
- 6537639 - ROD
- Swing Lock
26 6533957
- 6533957 - PIN
- Swing Lock
27 6534018
- 6534018 - CONSOLE
- L.H.
28 6537545
- 6537545 - PLATE
- Floorboard
29 6537491
- 6537491 - PLATE
- control mounting
30 6513152
- 6513152 - SEAL
- BULK/FT 25
- bulk - sold per foot
31 6587155
- 6587155 - INSULATION
32 6587616
- 6587616 - INSULATION
