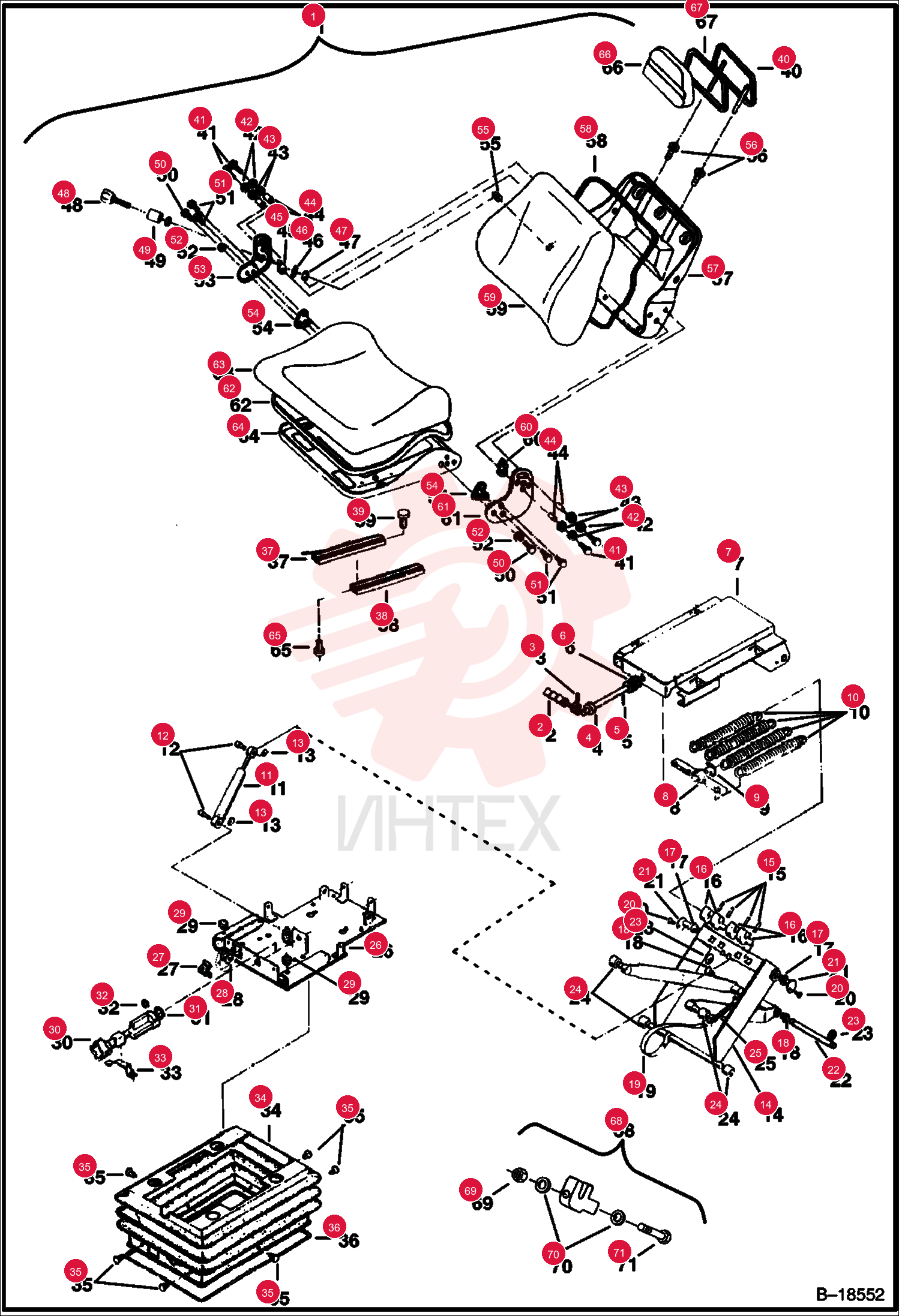

SEAT ASSEMBLY
1 6658850
- 6658850 - SEAT ASSEMBLY
- Complete - Ref. 2-67 - Cloth Covered
2 6659401
- 6659401 - HANDLE
- W/Ref. 3
3 6659402
- 6659402 - PIN
4 6675065
- 6675065 - SPINDLE
- Was 6659403
5 6659404
- 6659404 - PIN
- DOWEL
6 6659407
- 6659407 - BRACKET
7 6650467
- 6650467 - NUT
8 6659408
- 6659408 - SPRING
9 6659409
- 6659409 - SABSORBER
- W/Ref. 12 & 13
10 6650475
- 6650475 - BOLT
11 6650441
- 6650441 - WASHER
12 6659410
- 6659410 - ARM
- Suspension - W/Ref. 15-19
13 6659413
- 6659413 - BUSHING
14 6650488
- 6650488 - BUSHING
15 6659414
- 6659414 - GAUGE
- Weight Indicator
16 6659415
- 6659415 - SCREW
17 6659417
- 6659417 - SHAFT
18 6650440
- 6650440 - WASHER
19 6650464
- 6650464 - ROLLER
20 6650474
- 6650474 - SPRING
21 6650455
- 6650455 - GUIDE
22 6650460
- 6650460 - ROLLER
- Weight Indicator
23 6659419
- 6659419 - BUMPER
24 6659420
- 6659420 - H/REGULAT
- Height - W/Ref. 31-33
25 6659424
- 6659424 - BOOT
- Boot - W/Ref. 35-37
26 6650456
- 6650456 - HOLDING
27 6659425
- 6659425 - FRAME
28 6659426
- 6659426 - TRACK
- W/Adjuster
29 6659427
- 6659427 - TRACK
30 6659428
- 6659428 - SCREW
31 6659456
- 6659456 - HEAD REST
32 6659430
- 6659430 - BOLT
33 6659431
- 6659431 - WASHER
34 6659432
- 6659432 - WASHER
35 6659433
- 6659433 - SPACER
36 6659435
- 6659435 - WASHER
37 6659436
- 6659436 - NUT
38 6659437
- 6659437 - SPINDLE
- Adjustment
39 6659438
- 6659438 - SPACER
40 6659439
- 6659439 - BOLT
41 6659440
- 6659440 - BOLT
42 6650477
- 6650477 - WASHER
43 6659442
- 6659442 - PLATE
44 6659443
- 6659443 - BOLT
45 6659444
- 6659444 - BUSHING
46 6659445
- 6659445 - BACK REST
47 6668066
- 6668066 - TRIM
- Was 6659446
48 6659447
- 6659447 - CUSHION - CLOTH
49 6659449
- 6659449 - PLATE
50 6659450
- 6659450 - MOLDING
51 6659451
- 6659451 - CUSHION
- SEAT CLOTH
- Seat - cloth
52 6659452
- 6659452 - SEAT PAN
53 6659453
- 6659453 - SCREW
54 6666683
- 6666683 - RET KIT
- Includes items 69
- 70 &71 NLA - Was 6666683
55 1DM6
- 1DM6 - NUT
56 1EM60
- 1EM60 - WASHER
57 4CM630
- 4CM630 - BOLT
