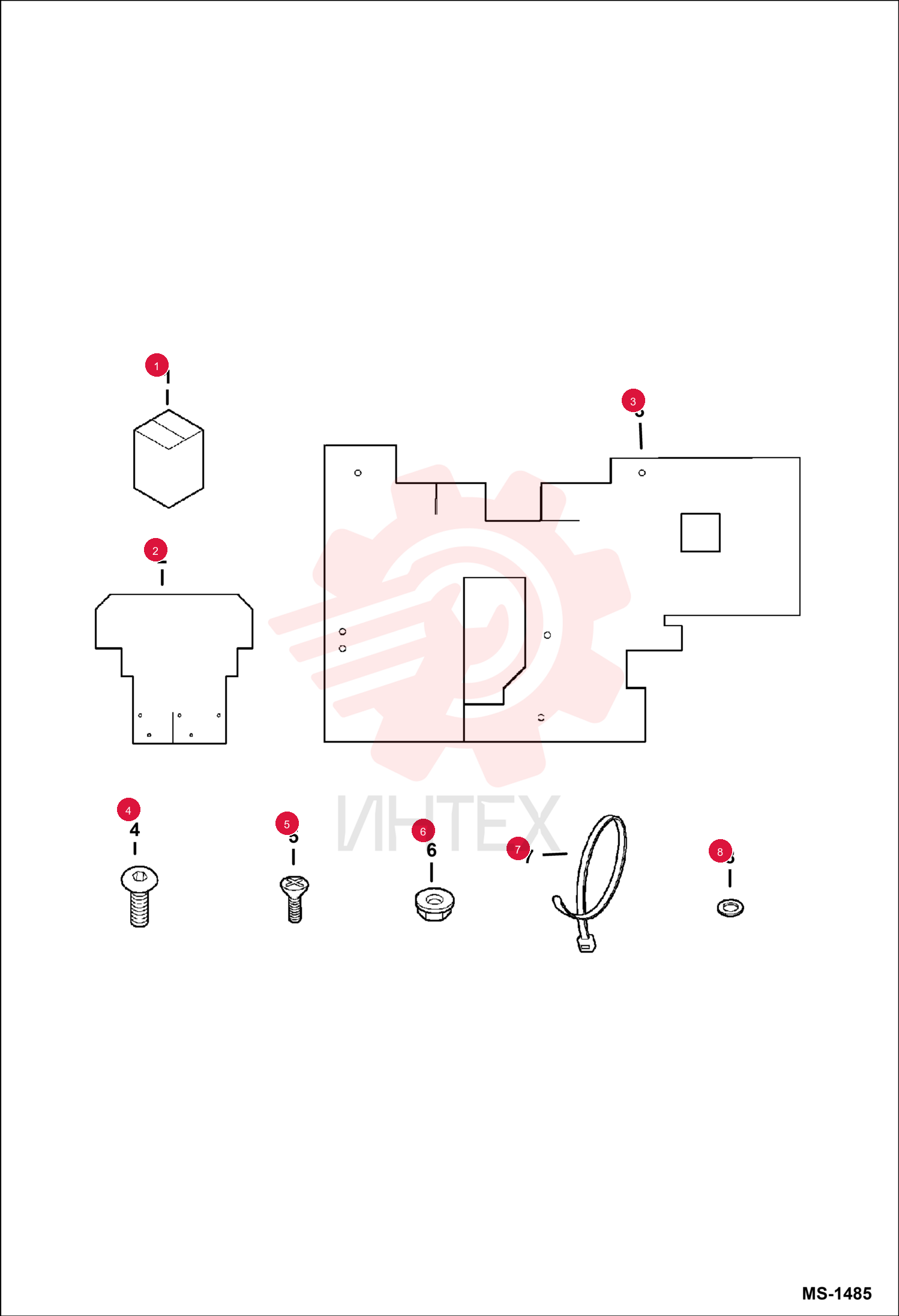

DASH LINER KIT 103361401CC

DASH LINER KIT 103361401CC

DASH LINER KIT 103361401CC

1 103361401CC

  • 103361401CC - DASH LINER KIT
  • W/Ref. 2-8 - for closing up the dash ( heat retention)

2 102297230CC

  • 102297230CC - SCREW

3 8639CC

  • 8639CC - TIE WRAP
  • 11" NYLON

4 332CC

  • 332CC - WASHER
  • 1/4 TYPE A NARROW FLAT
