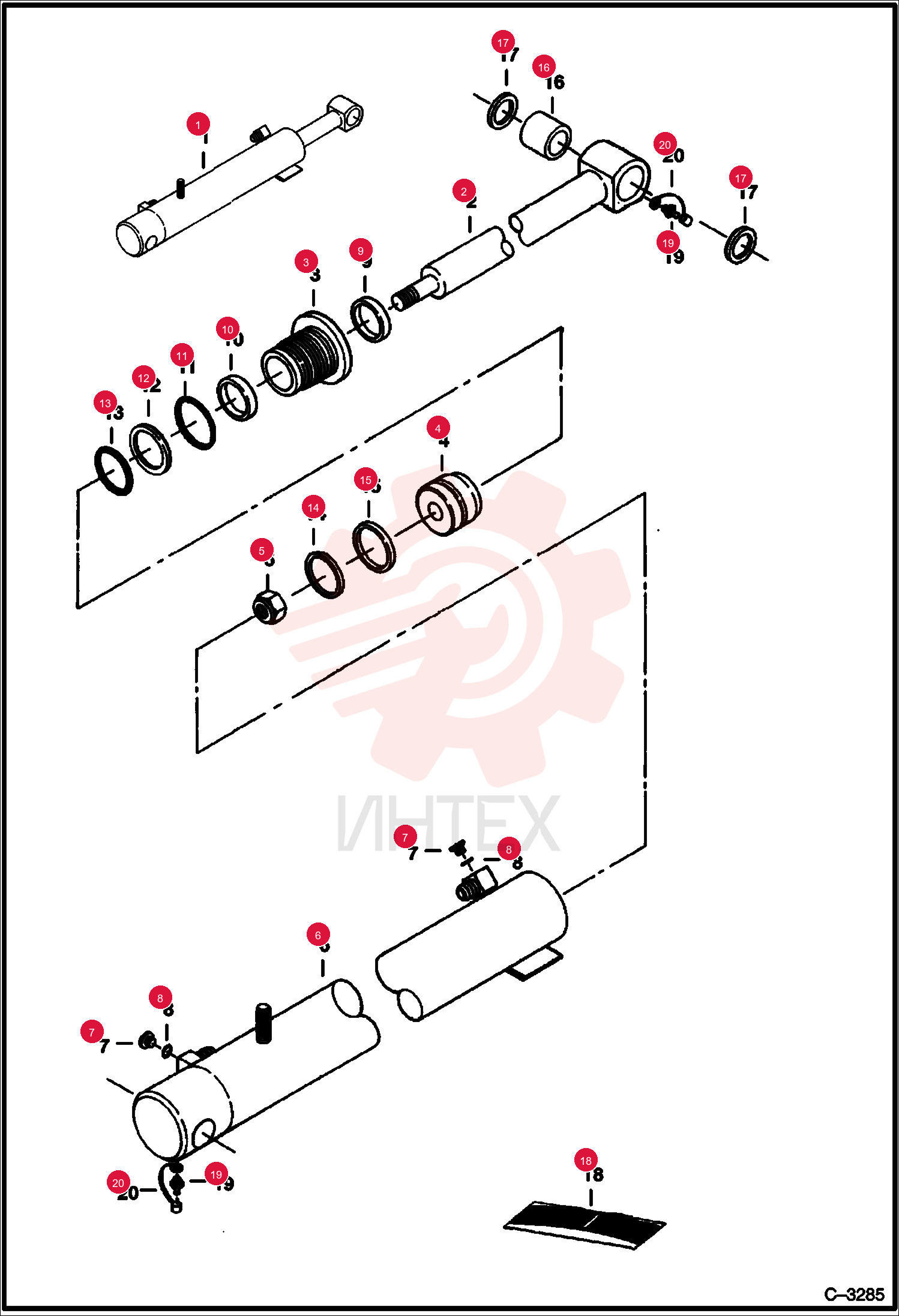

ROD
1 6537371
- 6537371 - ROD
- W/Ref. 16 & 17 - W/1''-14 UNF threads
2 6586570
- 6586570 - HEAD
- Was 6537360
3 6587574
- 6587574 - PISTON
- 1.002'' (25.45 mm) I.D. - Was 6537369
4 6587573
- 6587573 - PISTON
- 1.126'' (28.60 mm) I.D. - Was 6586760
5 86D16
- 86D16 - NUT
6 6810539
- 6810539 - NUT
- Was 6804592
7 90KV6
- 90KV6 - PLUG
- tapered boss face
8 79K6
- 79K6 - O RING 10
- for flat boss face
9 95K6
- 95K6 - O'RING
- for tapered boss face
10 6686999
- 6686999 - WIPER
- ROD CYL
- Was 6666544
11 6667327
- 6667327 - SEAL
- ROD
- Was NSS
12 82K236
- 82K236 - O-RING
- Was 58K000236B
13 73K234
- 73K234 - RING
- BACK-UP
- back-up - Was 80K234
14 54K40300
- 54K40300 - O-RING
- Was 58K234
15 54K30226
- 54K30226 - O-RING
- Was 25K30226
16 6513466
- 6513466 - PISTON RG
- Was NSS
17 6539220
- 6539220 - BUSHING
18 6652915
- 6652915 - SEAL
- OIL
19 6661051
- 6661051 - SEAL KIT
- Ref. 9 - for cyl. that use 1'' UNF Nut - Was 6537361
20 7137965
- 7137965 - SEAL KIT
- Ref. 5
- 9-15 & 6810539 - for cyl. that use 1.125'' UNF Nut- Was 6816533
21 10H25
- 10H25 - FTG GREASE STRAIGHT
22 6652943
- 6652943 - COVER
- grease fitting
