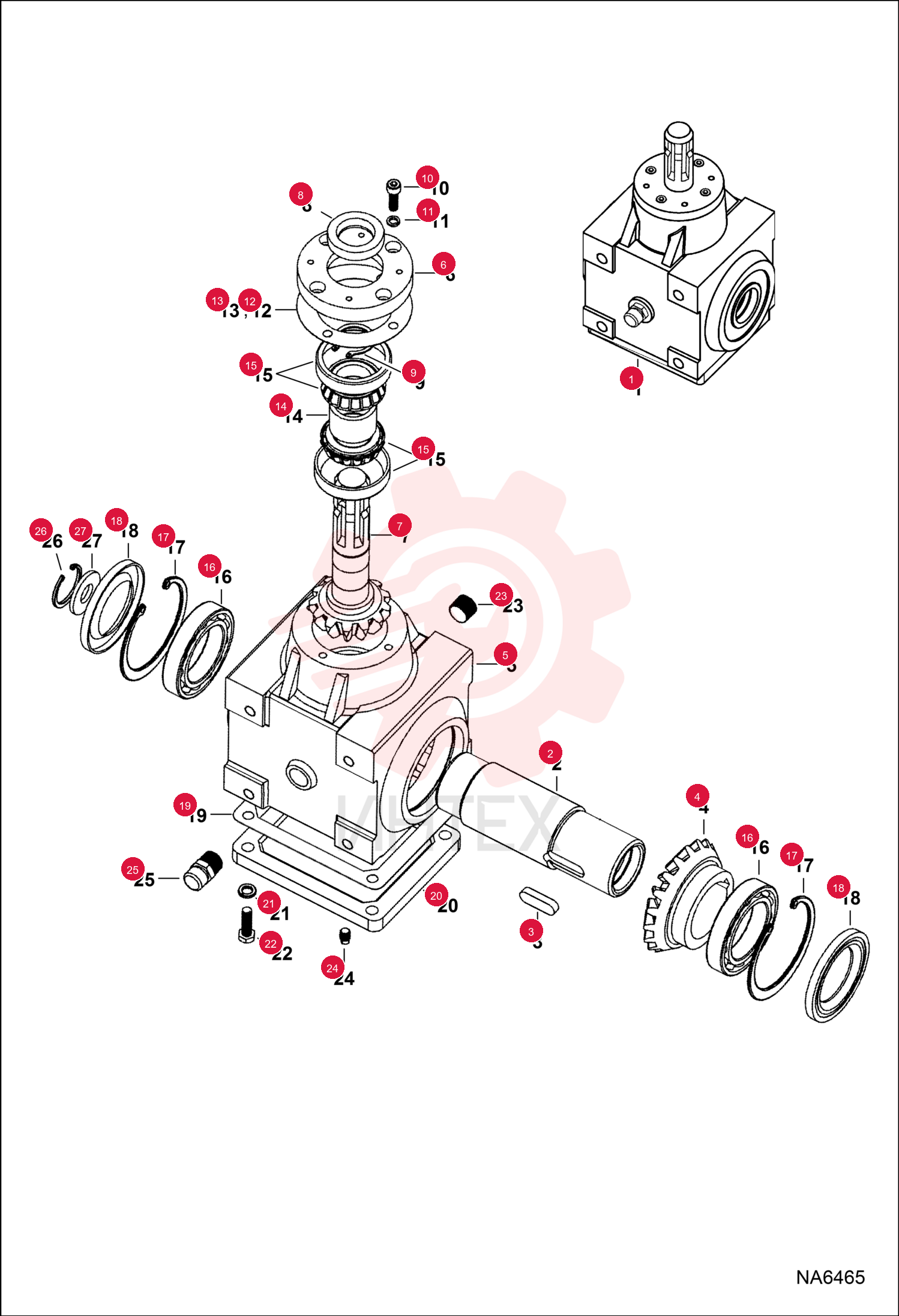

GEARBOX 7024482
1 7024482
- 7024482 - GEARBOX
- top - Ref. 2-27
2 7024504
- 7024504 - SHAFT
- OUTPUT
3 7024506
- 7024506 - KEY
- SHAFT
4 7024511
- 7024511 - GEAR
- BEVEL
- output
5 7024515
- 7024515 - HOUSING
- GEARBOX
6 7024578
- 7024578 - CAP
- SEALING
- input
7 7024580
- 7024580 - RING
- RETAINING
8 7024581
- 7024581 - BOLT
9 7024582
- 7024582 - WASHER
10 7024583
- 7024583 - GASKET
11 7024584
- 7024584 - GASKET
12 7024585
- 7024585 - SPACER
13 7024586
- 7024586 - BEARING
14 7024589
- 7024589 - SEAL
15 7024590
- 7024590 - GASKET
- rectangle
16 7024591
- 7024591 - CAP
- SPINDLE
17 7024592
- 7024592 - PLUG
- PIPE
- inner
18 7024593
- 7024593 - PLUG
- PIPE
- square head
19 7024505
- 7024505 - PIPE
- PRESSURE RELIEF
20 7024494
- 7024494 - RING
- SNAP
21 7024724
- 7024724 - WASHER
