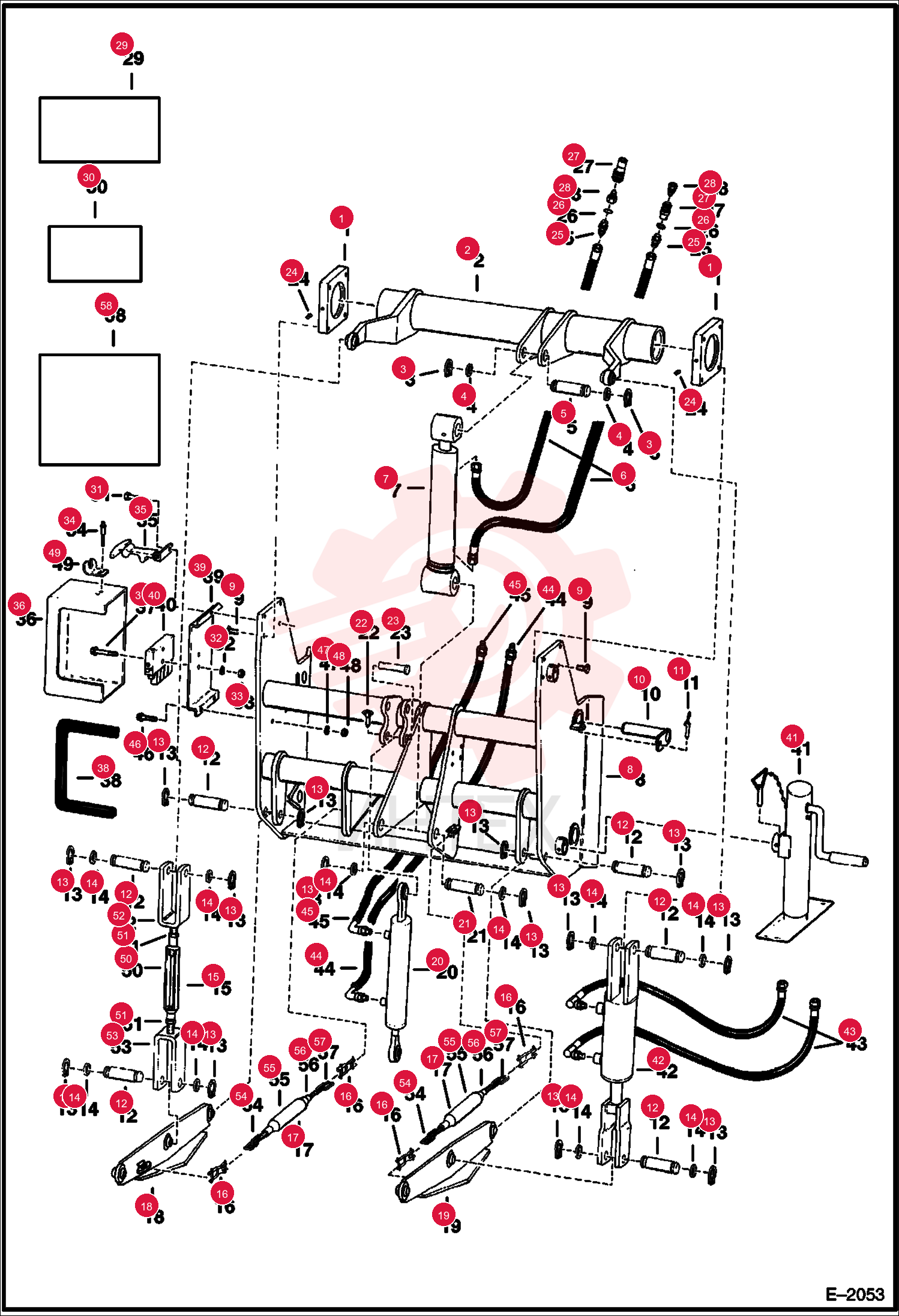

BLOCK 6586152 (2)
1 6586152
- 6586152 - BLOCK
2 6586138
- 6586138 - TUBE
3 6538285
- 6538285 - SNAP RG 5
4 6584872
- 6584872 - WASHER 5
5 6586153
- 6586153 - PIN
6 6530889
- 6530889 - HOSE
7 6529349
- 6529349 - CYLINDER
8 17C828
- 17C828 - BOLT
9 6586146
- 6586146 - PIN
10 6649496
- 6649496 - CLICK PIN
11 6586151
- 6586151 - PIN
12 1321168
- 1321168 - RING
13 742053
- 742053 - WASHER
14 6645240
- 6645240 - TURNBUCKL
- W/Ref. 50-53
15 6645234
- 6645234 - LINK
16 6645241
- 6645241 - TURNBUCKL
- W/Ref. 54-57
17 6586145
- 6586145 - LINK
- LH
18 6586142
- 6586142 - LINK
- RH
19 6658499
- 6658499 - CYLINDER
20 6561326
- 6561326 - PIN
21 6645236
- 6645236 - PIN
- SNAP
22 6645238
- 6645238 - PIN
23 10H25
- 10H25 - FTG GREASE STRAIGHT
24 743108
- 743108 - FITTING
25 79K8
- 79K8 - O RING 10
26 6583862
- 6583862 - DECAL
- WARNING
27 6531654
- 6531654 - DECAL
28 31C832
- 31C832 - SCREW FLGD HEX CAP
29 23E5
- 23E5 - L WASHER
30 61D5
- 61D5 - NUT HEX FINISHED GR5
31 6657353
- 6657353 - RIVET
32 7252462
- 7252462 - LATCH
- Was 1547283
33 1F308
- 1F308 - PIN
- COTTER
- if equipped
34 6658475
- 6658475 - COVER
35 17C552
- 17C552 - BOLT
36 6658477
- 6658477 - PLATE
- MOUNT
37 6658480
- 6658480 - CYLINDER
38 6658481
- 6658481 - HOSE
39 6658482
- 6658482 - HOSE
40 6658483
- 6658483 - HOSE
41 17C620
- 17C620 - BOLT
42 23E6
- 23E6 - WASHER
43 61D6
- 61D6 - NUT HEX FINISHED GR5
44 6652810
- 6652810 - TUBE
45 7D16
- 7D16 - NUT
46 6652812
- 6652812 - SCREW ASY
- R.H.
47 6652811
- 6652811 - SCREW ASSEMBLY
- L.H.
48 6652807
- 6652807 - SCREW ASSEMBLY
- L.H.
49 6652808
- 6652808 - TUBE
50 7D12
- 7D12 - NUT
51 6658209
- 6658209 - PULLEY
52 6539177
- 6539177 - DECAL
- installation
