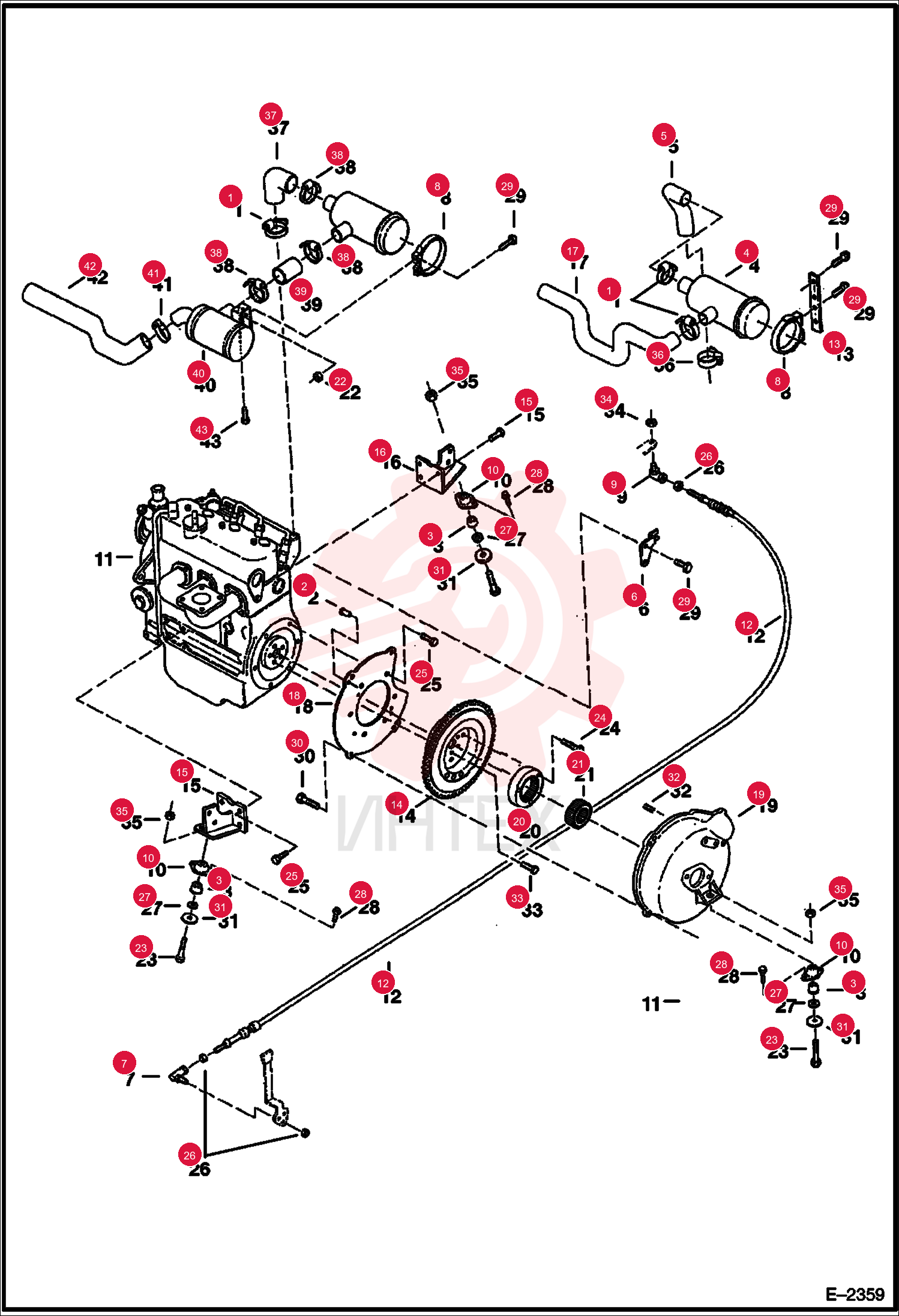

CLAMP
1 5HM53
- 5HM53 - CLAMP
- Was 6513595
2 6533138
- 6533138 - STUD
3 6804522
- 6804522 - SPACER
- Was 6537468
4 905282
- 905282 - AIR CLNR
- Air - Was 6555551
5 6628999
- 6628999 - BRACKET
- Throttle
6 6630661
- 6630661 - JOINT
- BALL
7 6633630
- 6633630 - MOUNTING
8 6644965
- 6644965 - BALL JOINT
9 6653764
- 6653764 - MOUNT
- Also order Spacer 6804522 - (1) per mount for S/N 562315578 & Below
- for S/N 562315579 & Above order the Mount only
10 6670000
- 6670000 - CABLE
11 6800014
- 6800014 - STRAP
- Air Cleaner
12 6800424
- 6800424 - GEAR
- Ring
13 6804875
- 6804875 - FLYWHEEL
- Was 6800421
14 6800484
- 6800484 - MOUNT
- Front Engine
15 6800488
- 6800488 - MOUNT
- Rear Engine
16 6801090
- 6801090 - HOSE
- Air Intake
17 6801352
- 6801352 - PLATE
18 6801353
- 6801353 - HOUSING
19 6850028
- 6850028 - COUPLER
- Rubber Coupler
20 6850038
- 6850038 - HUB
- COUPLER
- Pump
21 86D8
- 86D8 - NUT PRETRQ HEX LOCK
- Was 1CM00816B
22 1CM1060
- 1CM1060 - BOLT
23 3GM1040
- 3GM1040 - BOLT
24 5CM1020
- 5CM1020 - SCREW FL THD HEX CAP
25 14D10
- 14D10 - NUT HEX MACH SCREW
26 15EM100
- 15EM100 - WASHER
27 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self Tapping
28 29CM816
- 29CM816 - SCREW FLGD HEX CAP
29 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
- Was 49DM00010B
30 872229
- 872229 - WASHER
- Was 872228
31 21JM816
- 21JM816 - PIN
32 6661636
- 6661636 - BOLT
- Was 6655557
33 61D4
- 61D4 - NUT 5
34 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
35 5HM47
- 5HM47 - CLAMP
36 6804344
- 6804344 - HOSE
37 5HM55
- 5HM55 - CLAMP
38 6804346
- 6804346 - HOSE
39 6672769
- 6672769 - MUFFLER
- air intake silencer
40 5HM58
- 5HM58 - CLAMP
41 6804343
- 6804343 - HOSE
42 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
