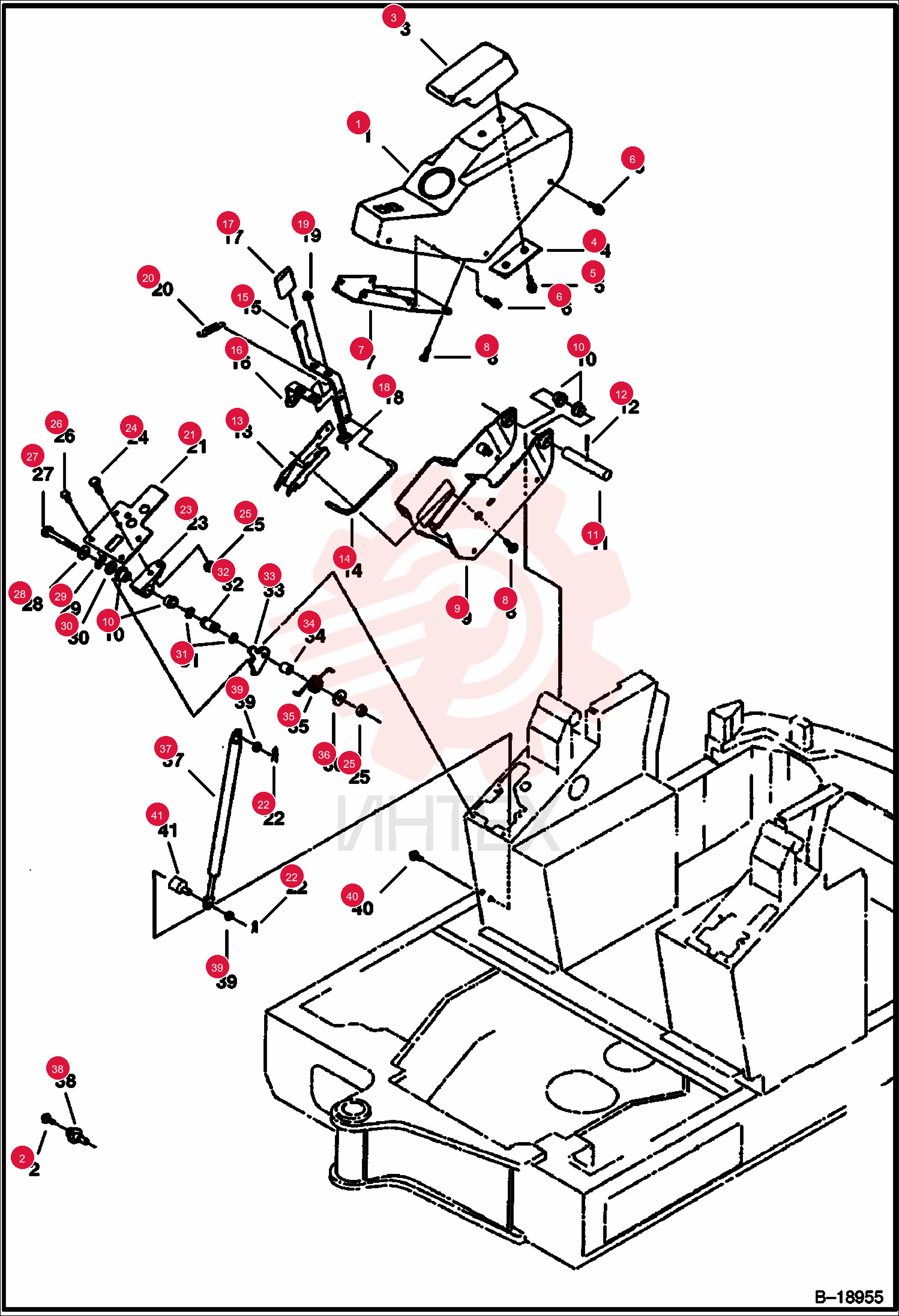

COVER
1 6800210
- 6800210 - COVER
- for ignition switch hole information - R.H. Console - Was 6596345
2 29CM816
- 29CM816 - SCREW FLGD HEX CAP
3 6587157
- 6587157 - ARMREST
4 6587158
- 6587158 - PLATE
- Armrest Retainer
5 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
6 6587499
- 6587499 - SCREW
- Phillips Head
7 6589675
- 6589675 - SCREW
- Self Tapping Torx Head
8 6586847
- 6586847 - COVER
9 4CM816
- 4CM816 - SCREW HEX HD 8.8
- Was 1CM816
10 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self Tapping Flanged Head
11 6589377
- 6589377 - CONSOLE
12 6536801
- 6536801 - BUSHING
13 6586849
- 6586849 - PIN
14 14J1820
- 14J1820 - PIN
15 6586850
- 6586850 - BRACKET
- Console Latch
16 6586854
- 6586854 - ROD
- Console Release
17 6589384
- 6589384 - LEVER
- Console Release
18 6586855
- 6586855 - LEVER
- Console Release
19 6587078
- 6587078 - SUPPORT
- Release Lever
20 6589383
- 6589383 - SUPPORT
- Release Lever
21 6586856
- 6586856 - KNOB
22 21CM820
- 21CM820 - BOLT
23 42DM8
- 42DM8 - NUT
24 6563128
- 6563128 - SPRING
25 6594859
- 6594859 - PLATE
- RH latch - Was 6587030
26 13JM20025
- 13JM20025 - COTTERPIN
27 6537481
- 6537481 - MOUNT
- Pivot
28 1CM1025
- 1CM1025 - BOLT
29 49DM10
- 49DM10 - NUT
30 4CM612
- 4CM612 - BOLT
- Was 1CM612
31 6589675
- 6589675 - SCREW
- Self Tapping Torx Head
32 1CM1080
- 1CM1080 - BOLT
33 27E6
- 27E6 - WASHER HARDEN PLAIN
34 6536803
- 6536803 - WASHER
- Wave Spring
35 6536802
- 6536802 - WASHER
36 58K015
- 58K015 - O-RING 10
37 6536545
- 6536545 - SLEEVE
38 6586853
- 6586853 - LATCH
- Console Hold Down
39 6587357
- 6587357 - BUSHING
40 6586868
- 6586868 - SPRING
41 17EM100
- 17EM100 - WASHER
42 6655965
- 6655965 - SPRING
- Gas Spring
43 6586967
- 6586967 - PIVOT
- Gas Spring W/2 Bolt Mounting
44 15EM100
- 15EM100 - WASHER
45 29CM1016
- 29CM1016 - SCREW FLANGE HEX CAP
46 6589879
- 6589879 - PIVOT
- Gas Spring W/1 Bolt Mounting
