321.0
/

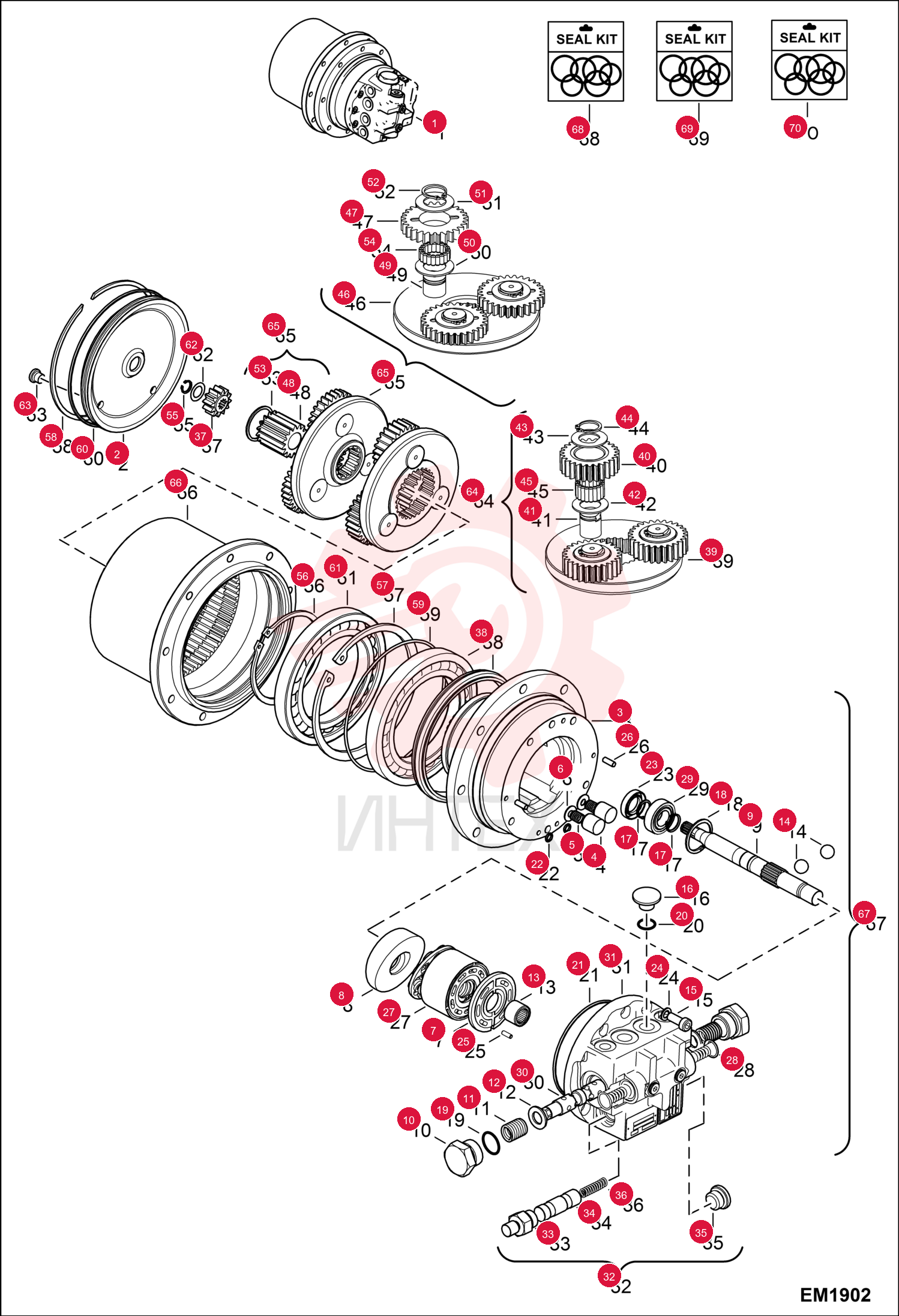

MOTOR DRIVE

MOTOR DRIVE

MOTOR DRIVE

1 6688447

  • 6688447 - MOTOR DRIVE
  • W/Ref. 2-67

2 6688096

  • 6688096 - COVER

3 6688098

  • 6688098 - HUB

4 6688099

  • 6688099 - PISTON

5 6688100

  • 6688100 - SPRING

6 6688101

  • 6688101 - WASHER

7 6693117

  • 6693117 - SWASH PLATE 9-15 DEGREES
  • 9°-15°

8 6688103

  • 6688103 - SHAFT

9 6667783

  • 6667783 - PLUG
  • W/Ref. 19 - Was 6668104

10 6667784

  • 6667784 - SPRING
  • Was 6688105

11 6667781

  • 6667781 - BEARING

12 6688107

  • 6688107 - BALL

13 6688108

  • 6688108 - BOLT

14 6693118

  • 6693118 - PLASTIC PLUG 9/16"UNF

15 6667756

  • 6667756 - SNAP RING

16 6688109

  • 6688109 - RING

17 6667777

  • 6667777 - O-RING

18 6692863

  • 6692863 - ORING

19 6667779

  • 6667779 - O-RING

20 6667774

  • 6667774 - SEAL

21 6667788

  • 6667788 - WASHER

22 6667782

  • 6667782 - DOWEL PIN

23 6688111

  • 6688111 - PIN

24 6667778

  • 6667778 - PISTON
  • MOTOR TRAVEL
  • Was 6688112

25 6693053

  • 6693053 - SHOCKPROOF VALVE

26 6688114

  • 6688114 - BEARING

27 6688115

  • 6688115 - VALVE

28 7245682

  • 7245682 - MOTOR
  • TRAVEL
  • Was 6688116

29 6688117

  • 6688117 - VALVE
  • W/Ref. 33-36

30 6667752

  • 6667752 - GEAR

31 6667754

  • 6667754 - BEARING
  • W/ front seal

32 6693116

  • 6693116 - PIN

33 6667757

  • 6667757 - WASHER

34 6667758

  • 6667758 - WASHER

35 6667759

  • 6667759 - SNAP RING

36 6667760

  • 6667760 - BEARING

37 6693059

  • 6693059 - PLANETARY CARRIER

38 6693062

  • 6693062 - PLANET GEAR

39 6667753

  • 6667753 - GEAR

40 6693115

  • 6693115 - PIN

41 6667757

  • 6667757 - WASHER

42 6667758

  • 6667758 - WASHER

43 6667759

  • 6667759 - SNAP RING

44 6667764

  • 6667764 - SNAP RING

45 6667763

  • 6667763 - BEARING

46 6688118

  • 6688118 - RING

47 6667765

  • 6667765 - SNAP RING

48 6667767

  • 6667767 - SNAP RING

49 6658401

  • 6658401 - O-RING
  • Was 6667768

50 6667768

  • 6667768 - O-RING
  • Was 6667769 - Was 6658401

51 6667770

  • 6667770 - BEARING

52 6688119

  • 6688119 - KIT

53 6676161

  • 6676161 - PLUG
  • W/ O-ring

54 6667792

  • 6667792 - GEAR ASSEMBLY
  • W/Ref. 39-45

55 6693119

  • 6693119 - PLANETARY GEAR SET 6.75
  • W/Ref. 46-54

56 6667748

  • 6667748 - HOUSING

57 6693058

  • 6693058 - HYDRAULIK MOTOR MORV 14
  • 72/8
  • 70
  • W/Ref. 3-31

58 6688120

  • 6688120 - KIT O-RING
  • basic - W/Ref. 19-23
  • 59-60

59 6688121

  • 6688121 - KIT
  • major rebuild - W/Ref. 19-23
  • 38
  • 59-60

60 7310948

  • 7310948 - KIT PLUG
