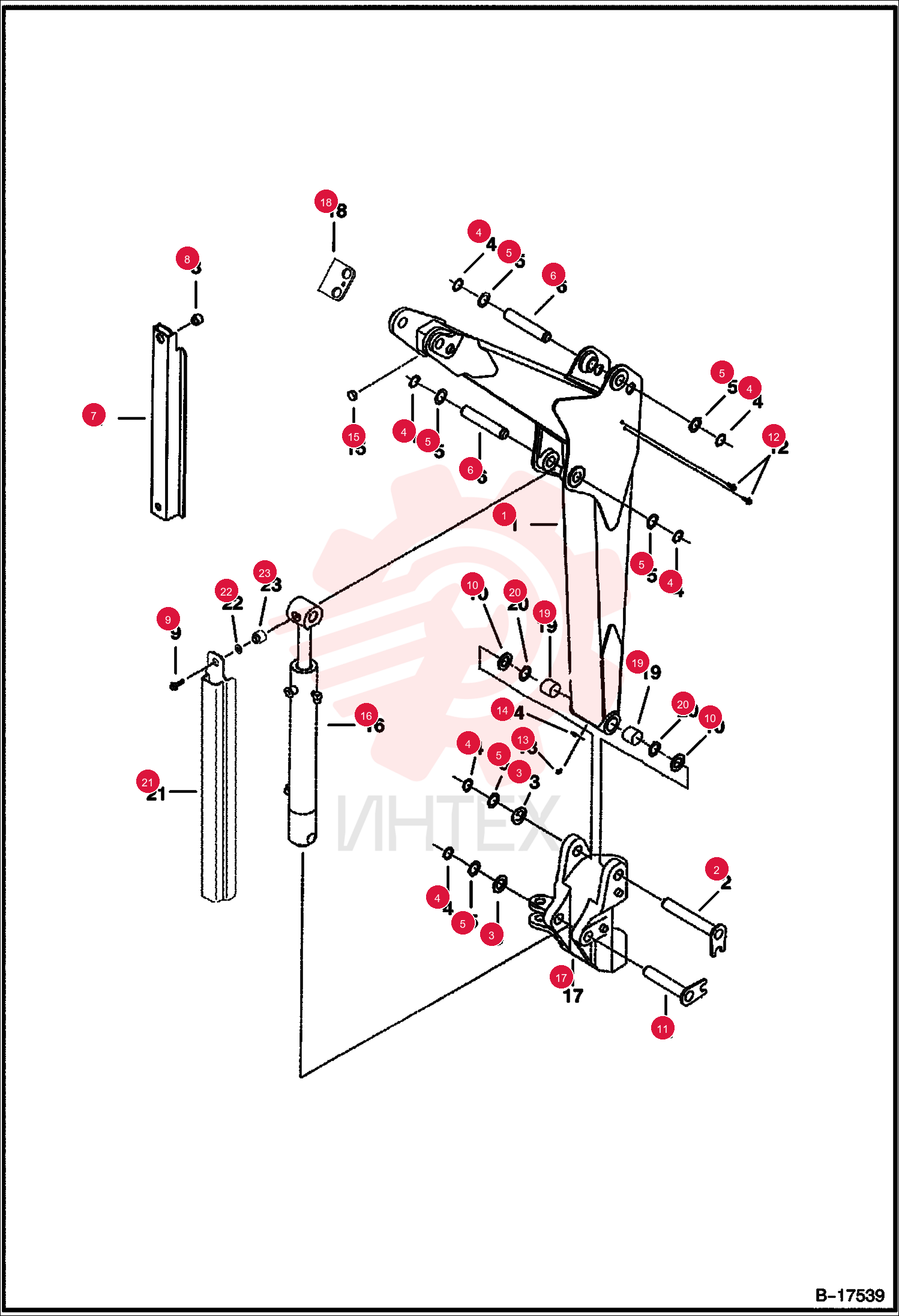

BOOM
1 6802224
- 6802224 - BOOM
- W/Ref. 19
2 6589092
- 6589092 - PIN
3 1EM270
- 1EM270 - WASHER
4 6512132
- 6512132 - SNAP RING
5 6589699
- 6589699 - WASHER
6 6589067
- 6589067 - PIN
7 6587472
- 6587472 - SPACER
- Use W/Ref. 7 (NLA/ 6596493 shield)
8 59CM1035
- 59CM1035 - SCREW HEX FLG HD CAP
9 6533856
- 6533856 - SHIM 5
10 6589643
- 6589643 - PIN
11 29CM820
- 29CM820 - SCREW FLNGE HEX CAP
12 10H25
- 10H25 - FTG GREASE STRAIGHT
13 6652943
- 6652943 - COVER
- grease fitting
14 6597572
- 6597572 - BUMPER
15 6589353
- 6589353 - BRACKET
- Welded on the boom
16 6802217
- 6802217 - BUSHING
- PRESS FIT
- Use W/Ref. 1 (6802224 boom) - 44
- 5 mm (1.75") long
17 6587765
- 6587765 - BUSHING
- PRESS FIT
- Use W/Ref. 1 (NLA/ 6589136 boom) - 39
- 75 mm ( 1.56") long
18 6653534
- 6653534 - SEAL
- OIL 5
19 7130862
- 7130862 - SHIELD
20 7135076
- 7135076 - SPRING WASHER
- Use W/Ref. 21
21 7131110
- 7131110 - SPACER
- Use W/Ref. 21
