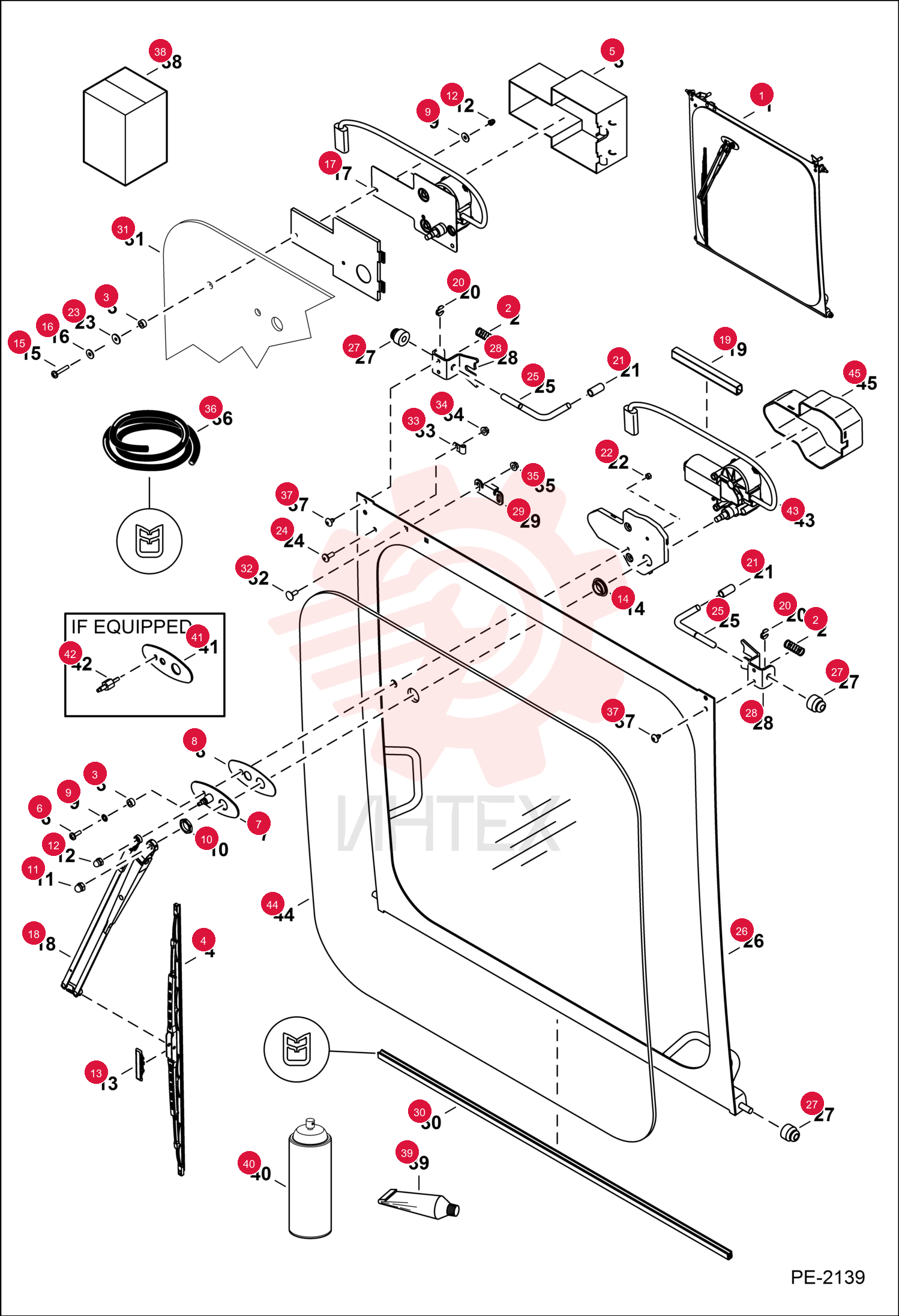

WINDOW, CAB FRONT
1 6816165
- 6816165 - WINDOW
- CAB FRONT
- assy
2 6610082
- 6610082 - SPRING
3 6664085
- 6664085 - BUSHING NYLON
4 7147359
- 7147359 - BLADE
- WIPER WINDOW
- Use W/Ref. 18 (NLA 6680180 arm) & Ref. 7
5 7188372
- 7188372 - BLADE
- WIPER WINDOW
- Use W/Ref. 18 (7234015 arm)
- Ref. 41 & 42
6 6677836
- 6677836 - COVER
- Was 6677836
7 6677837
- 6677837 - BOLT
8 6677839
- 6677839 - GASKET
9 6677841
- 6677841 - WASHER
10 6677842
- 6677842 - NUT
11 6677843
- 6677843 - NUT
12 6677844
- 6677844 - NUT
13 6677844
- 6677844 - NUT
14 6677845
- 6677845 - ADAPTER
- Use W/NLA blade
15 6677847
- 6677847 - GROMMET
16 6678198
- 6678198 - BOLT
17 6678739
- 6678739 - WASHER M5 FLAT
18 6679476
- 6679476 - MOTOR
- WIPER
19 6640699
- 6640699 - CONNECTOR METRI PACK
- electrical connector
20 7234015
- 7234015 - ARM
- WIPER
- Use W/Ref. 4 (7188372 blade)
- 41 & 42
21 6680971
- 6680971 - RETAINER
22 6681651
- 6681651 - RING
- RETAINER
23 6681652
- 6681652 - CAP PLUG
24 4DM5
- 4DM5 - NUT HEXAGON M5
25 6801059
- 6801059 - WASHER NEOPRENE
26 6803202
- 6803202 - SCREW
27 6812413
- 6812413 - PIN
28 6813028
- 6813028 - ROLLER
29 6814423
- 6814423 - BRACKET LATCH
30 7178840
- 7178840 - BRACKET
- LATCH
- Was 6816437
31 21CM616
- 21CM616 - SCREW
32 30H10
- 30H10 - CLIP
33 43DM6
- 43DM6 - NUT FLANGED HEX
34 51DM6
- 51DM6 - NUT HX THDLK PREAPPL
35 6682492
- 6682492 - EDGE TRIM BULK/FT
- bulk - sold per foot
36 6589675
- 6589675 - SCREW
37 7110442
- 7110442 - KIT
- WINDOW
- front window install - Also Order Ref. 39 & 40
38 7230824
- 7230824 - ADHESIVE
- NON-PRIMER
- 0
- 31 L (10.5 oz) - Was 6808882
39 7101512
- 7101512 - BUMPER
40 7102017
- 7102017 - WINDOW
41 6903848ENUS
- 6903848ENUS - INSTRUCTIONS
- Was 6903848
42 7110861
- 7110861 - CLEANER
- not in kit - Order separately
43 7009047
- 7009047 - PLATE
- Use W/Ref. 18 (7234015 arm)
- Ref. 4 (7188372 blade)
- & 42
44 7188373
- 7188373 - SWIVEL
- PLATE ASSY
- Use W/Ref. 11 (7234015 arm)
- Ref. 25 (7188372 blade)
- & 31 - Was 7255629
45 6684139
- 6684139 - MOTOR
- WIPER
46 6640699
- 6640699 - CONNECTOR METRI PACK
- electrical connector
47 6685140
- 6685140 - COVER
