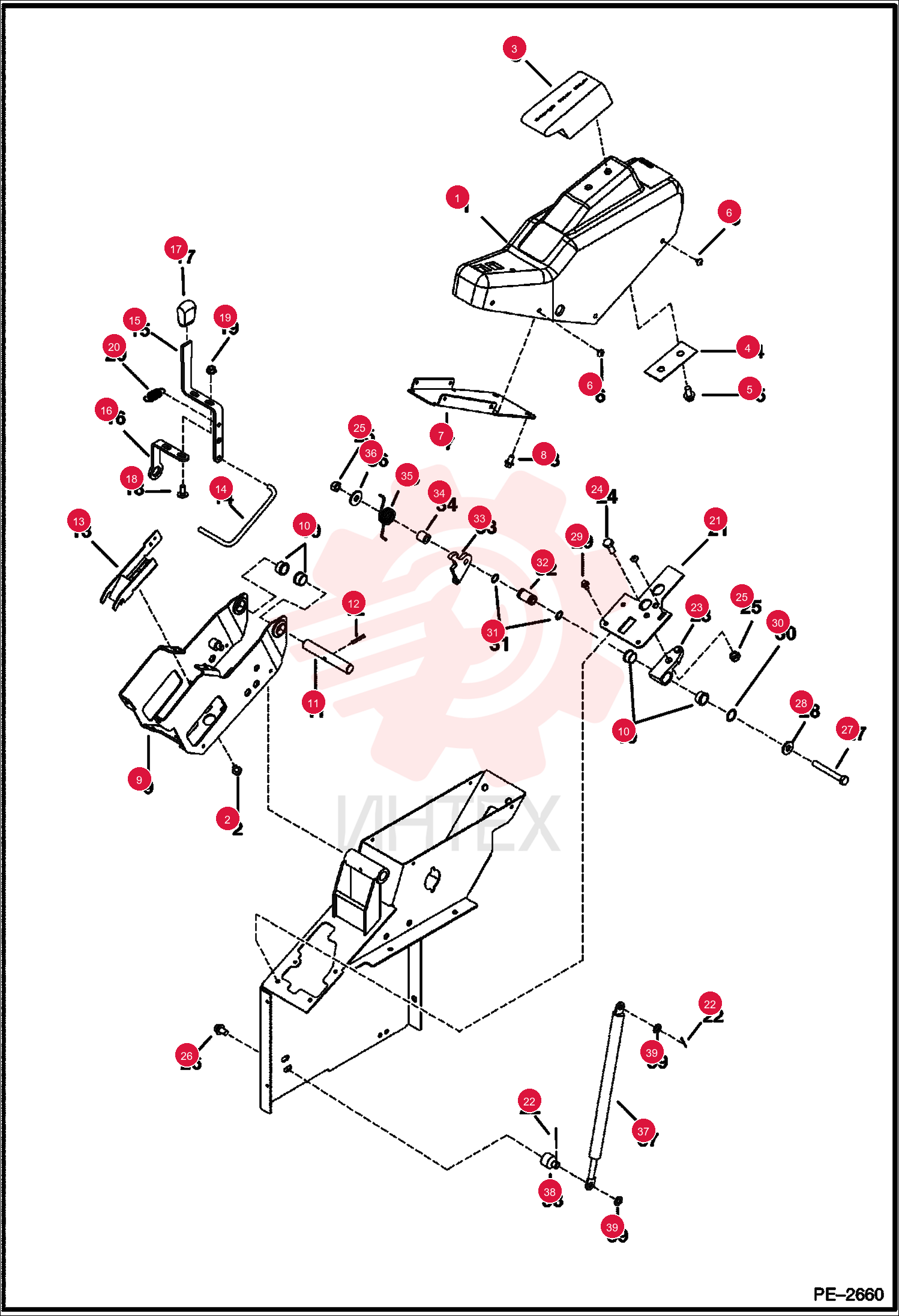

BOLT
1 29CM812
- 29CM812 - BOLT
2 6587157
- 6587157 - ARMREST
3 6587158
- 6587158 - PLATE
- Armrest Retainer
4 29CM1020
- 29CM1020 - SCREW HEX 10MMX20MM
5 6589675
- 6589675 - SCREW
- Self Tapping Torx Head
6 6586847
- 6586847 - COVER
7 26GM8016
- 26GM8016 - SCREW SELF TAPPING
- Self Tapping Flanged Head
8 6589377
- 6589377 - CONSOLE
9 6536801
- 6536801 - BUSHING
10 6586849
- 6586849 - PIN
11 14J1820
- 14J1820 - PIN
12 6586850
- 6586850 - BRACKET
- Console Latch
13 6586854
- 6586854 - ROD
- Console Release
14 6589384
- 6589384 - LEVER
- Console Release
15 6589383
- 6589383 - SUPPORT
- Release Lever
16 6586856
- 6586856 - KNOB
17 21CM820
- 21CM820 - BOLT
18 43DM8
- 43DM8 - NUT FLANGED HEX
19 6563128
- 6563128 - SPRING
20 6594859
- 6594859 - PLATE
- RH latch
21 13JM20025
- 13JM20025 - COTTERPIN
22 6537481
- 6537481 - MOUNT
- Pivot
23 1CM1025
- 1CM1025 - BOLT
24 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
25 29CM1016
- 29CM1016 - SCREW FLANGE HEX CAP
26 1CM1080
- 1CM1080 - BOLT
27 27E6
- 27E6 - WASHER HARDEN PLAIN
28 6810157
- 6810157 - SCREW
29 6536802
- 6536802 - WASHER
30 58K015
- 58K015 - O-RING 10
31 6536545
- 6536545 - SLEEVE
32 6586853
- 6586853 - LATCH
- Console Hold Down
33 6587357
- 6587357 - BUSHING
34 6586868
- 6586868 - SPRING
35 17EM100
- 17EM100 - WASHER
36 6655965
- 6655965 - SPRING
- Gas Spring
37 6589879
- 6589879 - PIVOT
- Gas Spring
38 15EM100
- 15EM100 - WASHER
