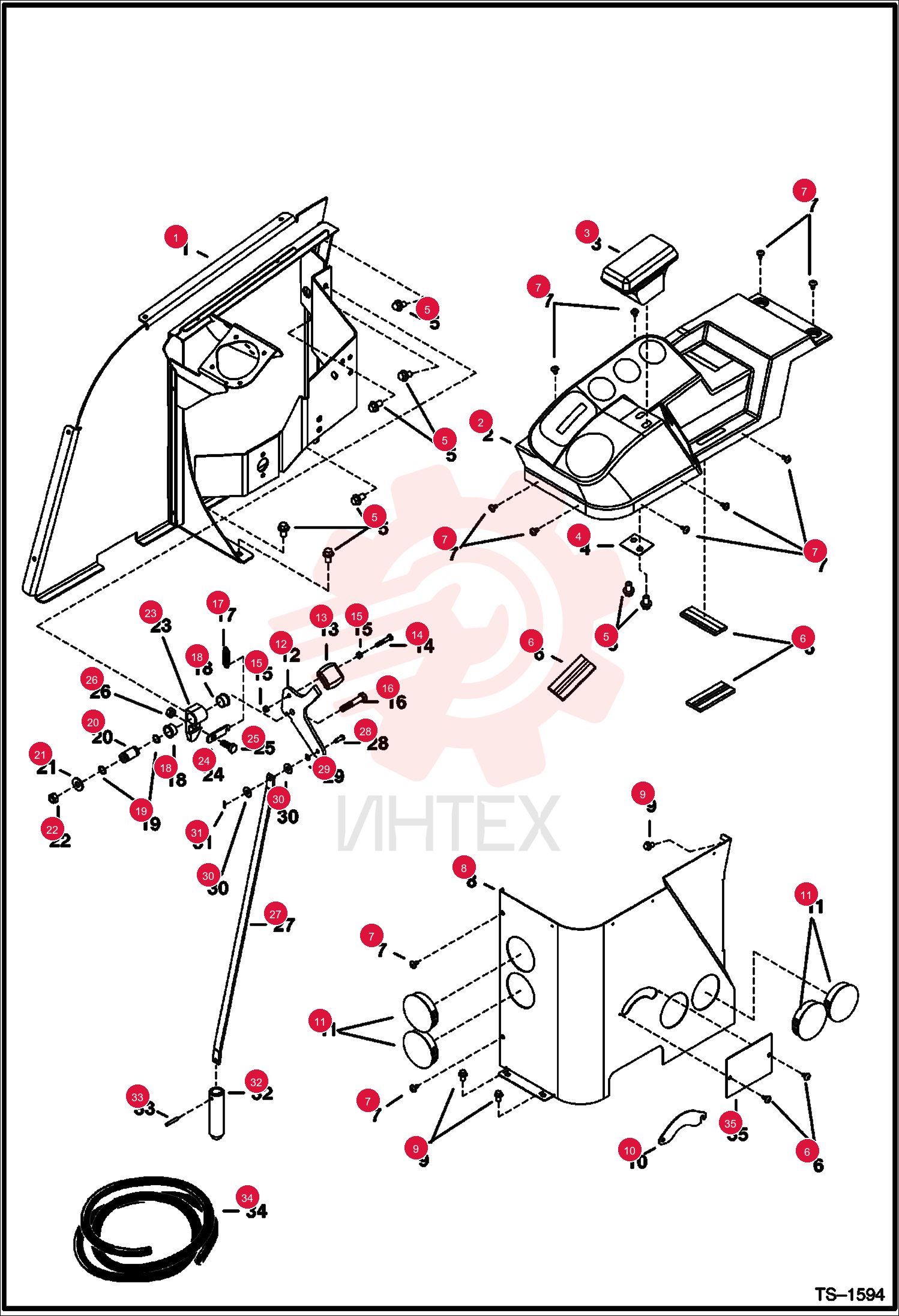

CONSOLE
1 6802545
- 6802545 - CONSOLE
- R.H.
2 6803195
- 6803195 - COVER
- Include Decals
3 6801672
- 6801672 - SUPPORT
4 6802644
- 6802644 - PLATE
5 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
6 6589675
- 6589675 - SCREW
7 6804330
- 6804330 - PANEL
- Also Order Ref. 35 - Was 6801129
8 26GM8016
- 26GM8016 - SCREW SELF TAPPING
9 6802617
- 6802617 - COVER
- Early machines only - See Ref. 35
10 6670864
- 6670864 - PLUG
11 6802655
- 6802655 - LEVER
12 6803199
- 6803199 - HANDLE
13 1CM640
- 1CM640 - SCREW HEX CAP
14 1DM6
- 1DM6 - NUT
- Was 4DM6
15 1CM1055
- 1CM1055 - BOLT
16 6804271
- 6804271 - SPRING
17 6536801
- 6536801 - BUSHING
18 58K015
- 58K015 - O-RING 10
19 6536545
- 6536545 - SLEEVE
20 27E6
- 27E6 - WASHER HARDEN PLAIN
21 53DM10
- 53DM10 - NUT HX THDLK PREAPPL
22 6537481
- 6537481 - MOUNT
23 6804248
- 6804248 - PLATE
24 1CM1025
- 1CM1025 - BOLT
25 4DM10
- 4DM10 - NUT HEX
26 6803363
- 6803363 - LINK
27 2F4051
- 2F4051 - PIN
28 9EM60
- 9EM60 - WASHER
29 27E4
- 27E4 - WASHER
30 1F216
- 1F216 - PIN
31 6803382
- 6803382 - PIN
- Swing Lock
32 14J1820
- 14J1820 - PIN
- Roll
33 7001454
- 7001454 - SEAL
- BULK/FT
- bulk - sold per foot - Was 6803188
34 6802666
- 6802666 - COVER
- can be used in place of Ref. 10 if new mtg holes are drilled
