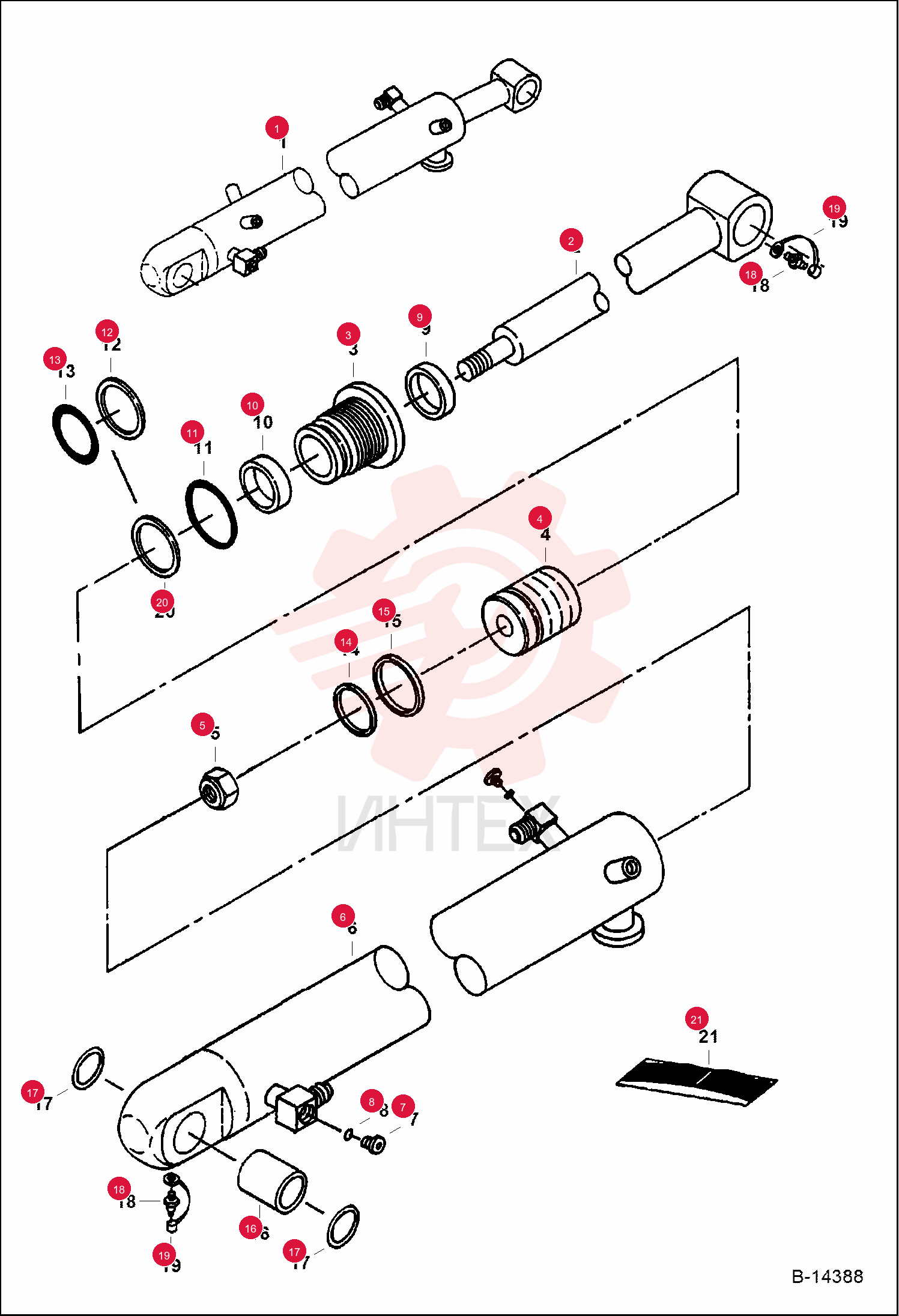

CYLINDER, BOOM
1 6810495
- 6810495 - CYLINDER
- BOOM
- W/Ref. 2 - 15 - Also order Ref.
2 6810500
- 6810500 - SHAFT
- ROD CYL
3 6804427
- 6804427 - HEAD
- CYL LIFT
4 6809345
- 6809345 - PISTON
5 6810539
- 6810539 - NUT
6 6808337
- 6808337 - TUBE
- Also order Ref. 16 & (2) 17
7 6812171
- 6812171 - PLUG
- W/Ref. 8 - flat boss face - hex head
8 99K6
- 99K6 - O-RING
- tapered boss face
9 75K6
- 75K6 - O-RING
- flat boss face
10 6687000
- 6687000 - WIPER ROD
- Was 6669268
11 6669267
- 6669267 - SEAL
12 54K40300
- 54K40300 - O-RING
- Was 58K234
13 73K232
- 73K232 - RING
- BACK-UP
- back-up - Was 80K232
14 54K40224
- 54K40224 - O-RING
- Was 25K40224
15 54K30218
- 54K30218 - 0-RING
- Was 25K30218
16 947088
- 947088 - RING
- BACK-UP
- piston
17 6808271
- 6808271 - BUSHING
18 6652915
- 6652915 - SEAL
- OIL
- dust
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 6652943
- 6652943 - COVER
- grease fitting
21 7137939
- 7137939 - KIT
- SEAL
- Ref. 5 & 9-15 - Was 6816536
