Bobcat
/
325.0
/

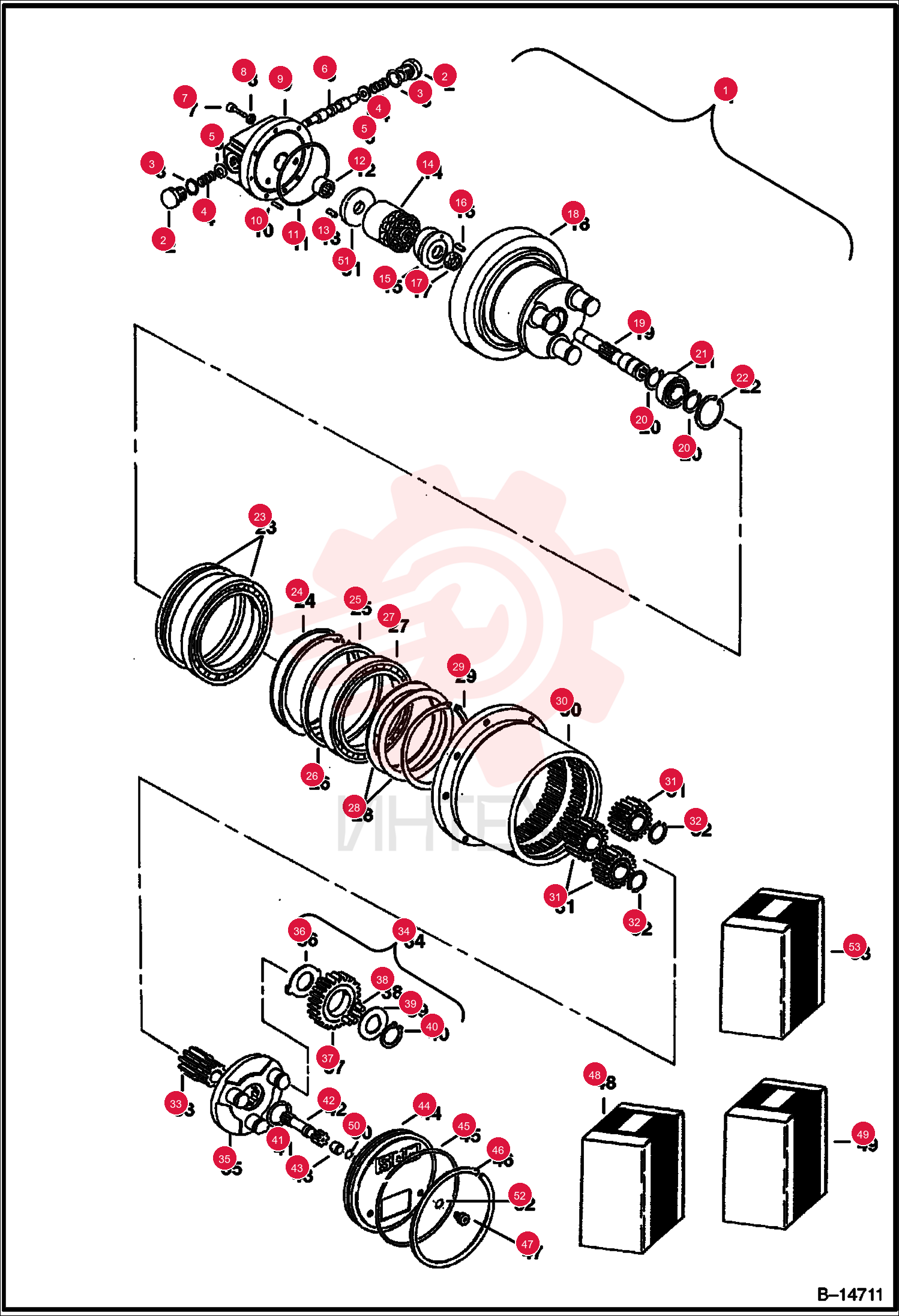

MOTOR, DRIVE HYD

MOTOR, DRIVE HYD

MOTOR, DRIVE HYD

1 6668135

  • 6668135 - MOTOR
  • DRIVE HYD
  • W/Ref. 2-48 & 50-52

2 6667777

  • 6667777 - O-RING

3 6667784

  • 6667784 - SPRING

4 6698694

  • 6698694 - SPOOL
  • VALVE
  • Was 6667786

5 6688108

  • 6688108 - BOLT
  • Was 6667787

6 6667788

  • 6667788 - WASHER

7 6669109

  • 6669109 - COVER

8 6688111

  • 6688111 - PIN
  • Was 6667780

9 6667779

  • 6667779 - O-RING

10 6667781

  • 6667781 - BEARING

11 6667782

  • 6667782 - DOWEL PIN

12 6667778

  • 6667778 - PISTON
  • MOTOR TRAVEL

13 6669126

  • 6669126 - SWASHPLATE
  • Swash

14 6667776

  • 6667776 - DOWEL PIN

15 6669125

  • 6669125 - SEAL

16 6669094

  • 6669094 - HOUSING

17 6669127

  • 6669127 - SHAFT

18 6669130

  • 6669130 - SNAP RING

19 6669124

  • 6669124 - BEARING

20 6669131

  • 6669131 - SNAP RING

21 6669101

  • 6669101 - BEARING
  • W/SEAL
  • W/Seal

22 6669108

  • 6669108 - O-RING

23 6669105

  • 6669105 - SNAP RING

24 6669100

  • 6669100 - SPACER

25 6669110

  • 6669110 - BEARING
  • MOTOR DRIVE

26 6669122

  • 6669122 - SHIM
  • 0
  • 9 mm thick

27 6669123

  • 6669123 - SHIM
  • 0
  • 95 mm thick

28 6693533

  • 6693533 - SHIM KIT

29 6669121

  • 6669121 - SHIM
  • 0
  • 4 mm thick

30 6669120

  • 6669120 - SHIM
  • 0
  • 3 mm thick

31 6693533

  • 6693533 - SHIM KIT

32 6669119

  • 6669119 - SHIM
  • 0
  • 2 mm thick

33 6669104

  • 6669104 - SNAP RING

34 6669096

  • 6669096 - HOUSING

35 6669097

  • 6669097 - GEAR
  • MOTOR SPRING
  • W/Bearing

36 6669102

  • 6669102 - SNAP RING

37 6669098

  • 6669098 - GEAR

38 6669263

  • 6669263 - CARR.ASY
  • W/Ref. 33 & 35 - 40

39 6669261

  • 6669261 - CARRIER

40 6669260

  • 6669260 - WASHER

41 6669262

  • 6669262 - GEAR

42 6669118

  • 6669118 - NDL BEAR.
  • needle - (18) needed for each gear

43 6669112

  • 6669112 - WASHER

44 6669117

  • 6669117 - SNAP RING

45 6669103

  • 6669103 - SNAP RING

46 6669259

  • 6669259 - GEAR
  • SHAFT

47 6667747

  • 6667747 - SPACER

48 6669093

  • 6669093 - COVER
  • Uses plug & rubber o-ring

49 6669107

  • 6669107 - O-RING

50 6669106

  • 6669106 - SNAP RING

51 6667771

  • 6667771 - PLUG
  • w/metal washer Ref. 52

52 6676161

  • 6676161 - PLUG
  • w/rubber o-ring Ref. 52

53 6669129

  • 6669129 - SEAL KIT
  • includes Ref. 3
  • 11
  • 17
  • 24
  • & 45

54 6669128

  • 6669128 - SEAL KIT
  • includes Ref. 48 & Ref. 23

55 6669597

  • 6669597 - SHIM
  • .0007 inch (0
  • 2mm) thick

56 6669598

  • 6669598 - SHIM
  • .012 inch (0
  • 3mm) thick

57 6669599

  • 6669599 - SHIM
  • .019 inch (0
  • 5mm) thick

58 6671929

  • 6671929 - KIT
  • SHIM
  • kit

59 7308583

  • 7308583 - KIT UNIVERSAL PLUG

60 6675272

  • 6675272 - WASHER
  • metal

61 7310948

  • 7310948 - KIT PLUG
