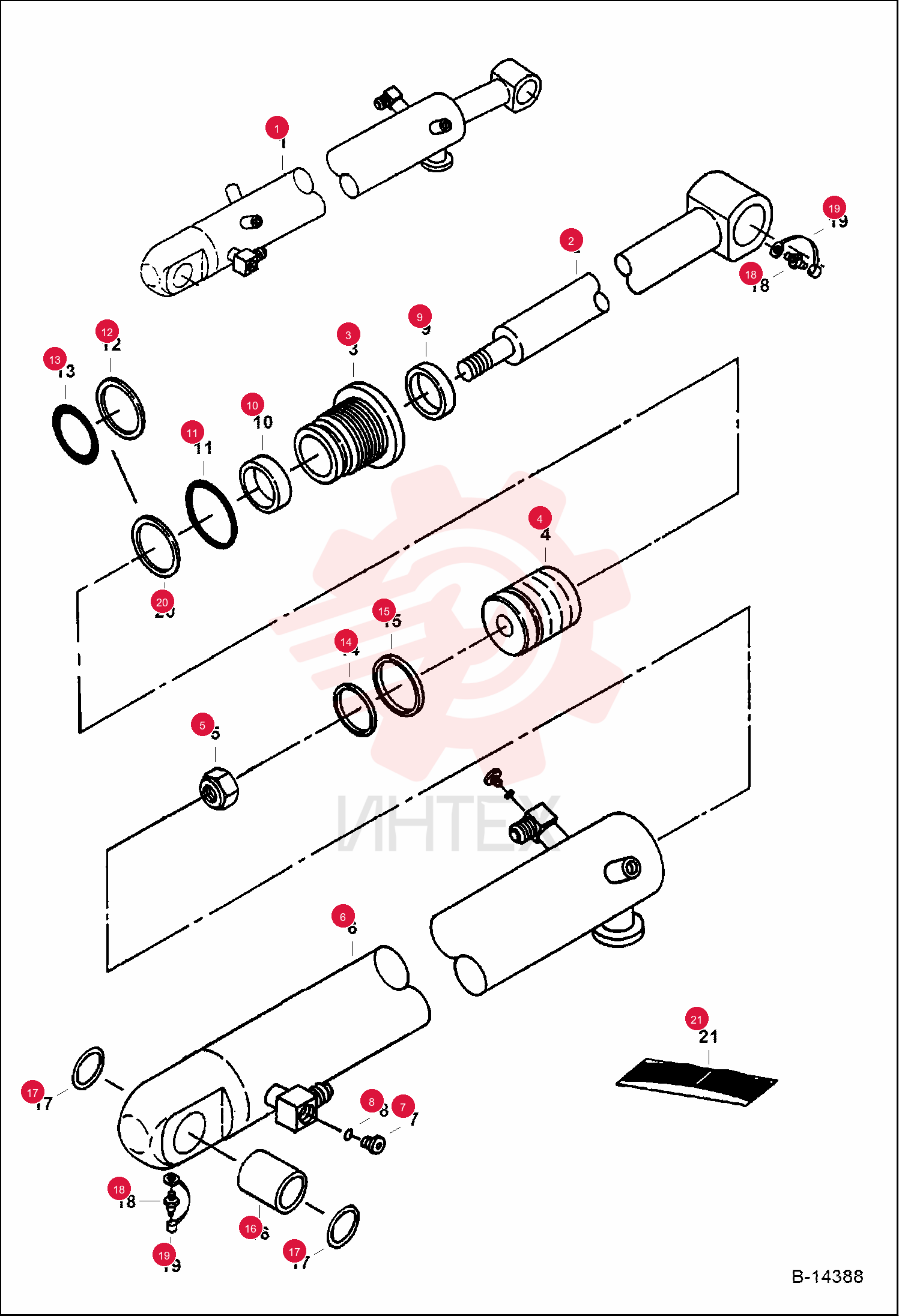

CYLINDER, BOOM
1 6810441
- 6810441 - CYLINDER
- BOOM
- W/Ref. 2-15 - Was 6807086
2 6810442
- 6810442 - ROD
- Was 6807085
3 6586718
- 6586718 - HEAD
- CYL TILT
- Was 7214661
4 6595702
- 6595702 - PISTON
5 6810539
- 6810539 - NUT
- Was 6804592
6 6803772
- 6803772 - HOUSING
- W/Ref. 7
- 8 - Also Order Ref. 16 & (2) Ref. 20
7 47K5
- 47K5 - PLUG
- W/Ref. 8
8 79K6
- 79K6 - O RING 10
9 6690707
- 6690707 - WIPER
- ROD CYL
- Was 6665086
10 6667326
- 6667326 - SEAL
- rod
11 54K60212
- 54K60212 - O-RING
- Was 25K60212
12 73K232
- 73K232 - RING
- BACK-UP
- Was 80K332
13 54K40224
- 54K40224 - O-RING
- Was 25K40224
14 54K30210
- 54K30210 - O-RING
- Was 25K30210
15 6516229
- 6516229 - SEAL
- PISTON
16 6596488
- 6596488 - BUSHING
- 1.77 O.D. - Use W/Cylinder 6595679
17 6803678
- 6803678 - BUSHING
- 1.57 O.D. - Use W/Cylinder 6803696
- 6807086 & 6810441
18 6652915
- 6652915 - SEAL
- OIL
- Dust
- Use W/Cylinder 6803696 and Housing 6803772 only
19 10H25
- 10H25 - FTG GREASE STRAIGHT
20 6652943
- 6652943 - COVER
- grease fitting
21 6817517
- 6817517 - KIT
- SEAL
- Ref. 9-15 - Was 6804610
