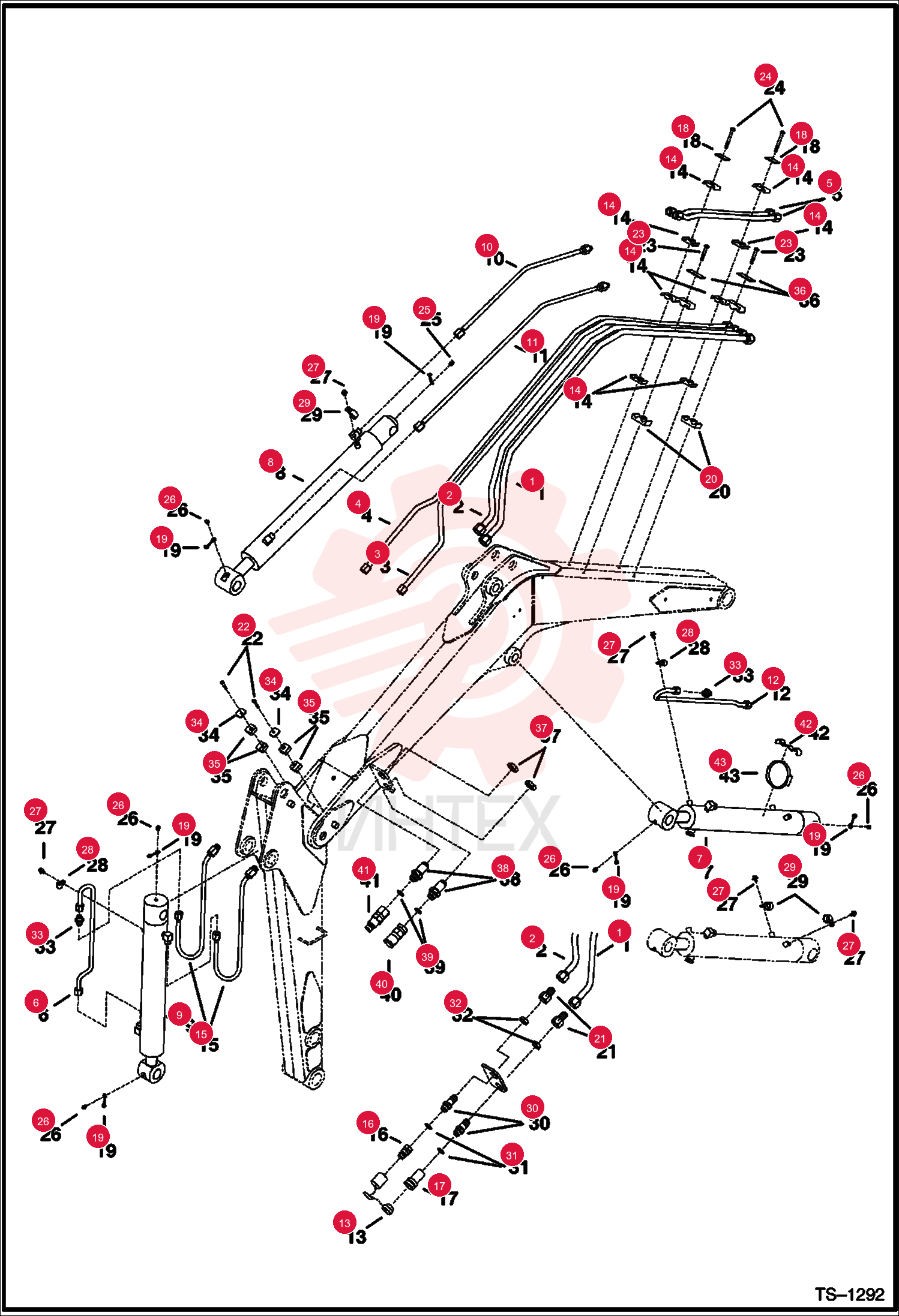

TUBE 6595938 (1)
1 6595938
- 6595938 - TUBE
- - Use W/poppet couplers & Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
2 6628644
- 6628644 - TUBELINE
- - Use W/flush face couplers & Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
3 7139953
- 7139953 - TUBELINE
- - Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)
4 6595939
- 6595939 - TUBE
- - Use W/poppet couplers - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
5 6628645
- 6628645 - TUBELINE
- - Use W/ flush face couplers & Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)
6 7139954
- 7139954 - TUBELINE
- - Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)
7 6596691
- 6596691 - TUBE
8 6596693
- 6596693 - TUBE
9 6595942
- 6595942 - TUBE
10 6595943
- 6595943 - TUBE
11 6800131
- 6800131 - HOSE
12 6800132
- 6800132 - HOSE
13 6596710
- 6596710 - TUBE
14 6513709
- 6513709 - CAP AND PLUG
- Coupler
15 6577697
- 6577697 - CLAMP
- Was 6701893
16 6800133
- 6800133 - HOSE
- For Standard Arm
17 6803910
- 6803910 - HOSE
- For Long Arm
18 6598757
- 6598757 - COUPLER
- POPPET MALE
- straight
19 6598758
- 6598758 - COUPLER FF FEMALE
- straight
20 48K16
- 48K16 - O RING 10
21 6652521
- 6652521 - PLATE
22 6652943
- 6652943 - COVER
- grease fitting
23 6592506
- 6592506 - CLAMP
- Was 6659498
24 6660224
- 6660224 - ADAPTER
25 1CM640
- 1CM640 - SCREW HEX CAP
26 1CM860
- 1CM860 - BOLT
27 1CM870
- 1CM870 - BOLT
28 12H15
- 12H15 - FTG GREASE 90
- 90 degree
29 10H25
- 10H25 - FTG GREASE STRAIGHT
30 29CM812
- 29CM812 - BOLT
31 30H30
- 30H30 - CLIP
32 30H45
- 30H45 - CLIP
33 45K7
- 45K7 - CONNECTR
- Use W/poppet couplers
34 79K10
- 79K10 - O RING 10
- Use W/poppet couplers
35 86F7
- 86F7 - NUT 5
- Use W/poppet couplers
36 87F6
- 87F6 - UNION HYDR LARGE HEX
37 6665102
- 6665102 - COVER
38 6666920
- 6666920 - CLAMP
- HALF
39 6592507
- 6592507 - PLATE
40 86F8
- 86F8 - NUT 5
- Use W/flush face couplers
41 45K8
- 45K8 - ADAPTOR
- bulkhead - Use W/flush face Couplers - Was 45KN00008B
42 97K12
- 97K12 - O-RING
- 37 degree - Flared End
43 97K12
- 97K12 - O-RING
- flared end
44 6812823
- 6812823 - ADAPTER
- flat boss face - includes W/Ref. 39
45 99K12
- 99K12 - O-RING
- Tapered boss face
46 79K12
- 79K12 - O RING 10
- Use W/flush face couplers - flat boss face
47 7246790EF
- 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD
48 7246790
- 7246790 - COUPLER FF FEM 1/2
- - straight - Was 6672960
49 7246777EF
- 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE
50 7246777
- 7246777 - COUPLER
- FF MALE
- - straight - Was 6674688
51 6806461
- 6806461 - CLAMP
52 42H56
- 42H56 - CLAMP
