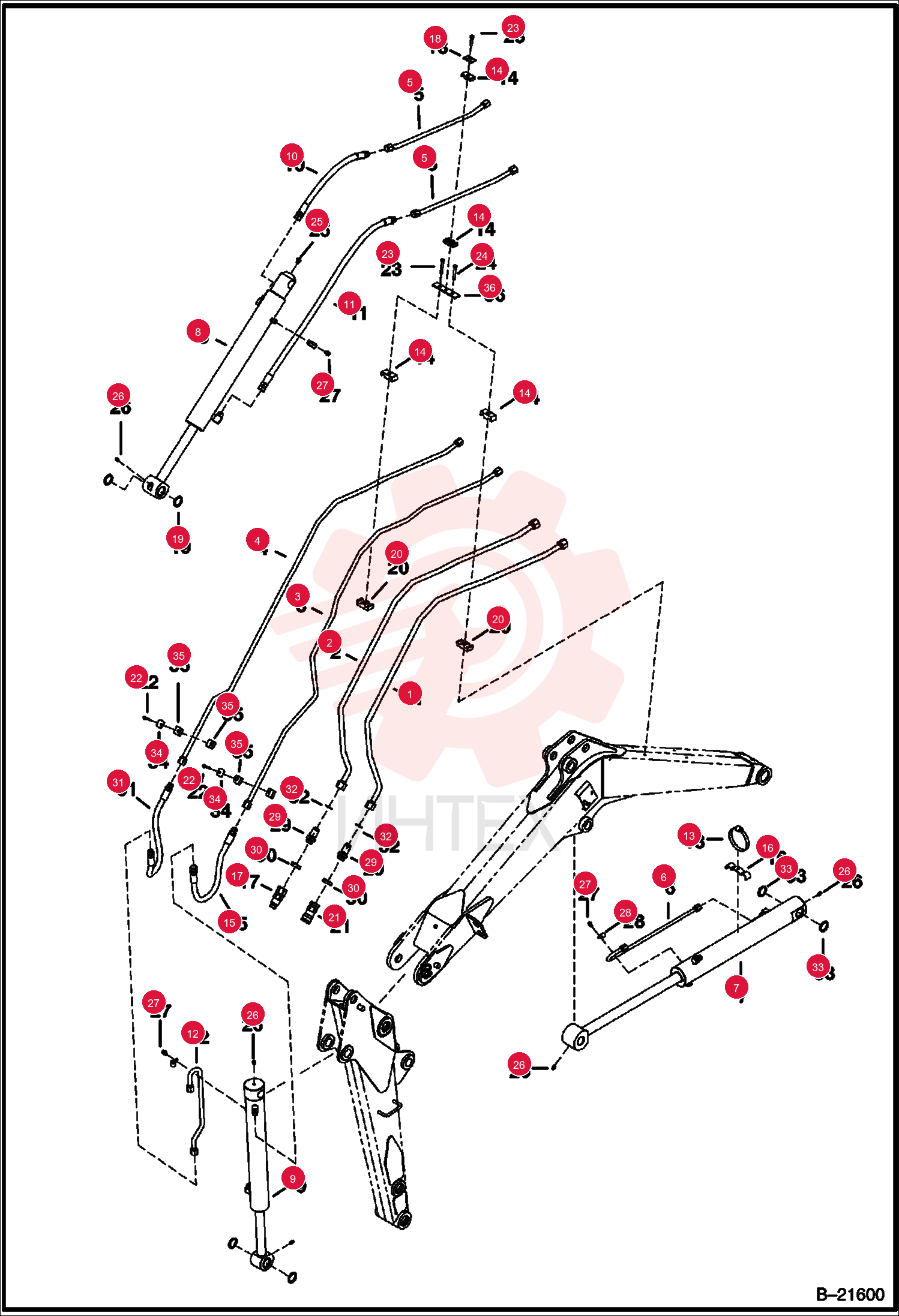

TUBELINE 6628644 (1)

TUBELINE 6628644 (1)

TUBELINE 6628644 (1)

1 6628644

  • 6628644 - TUBELINE
  • - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)

2 6812961

  • 6812961 - TUBE
  • - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm) - Was 6810667

3 7139953

  • 7139953 - TUBELINE
  • - Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)

4 6628645

  • 6628645 - TUBELINE
  • - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm)

5 6812962

  • 6812962 - TUBE
  • - Use W/aux bracket 6628560 2.95" (74.9 mm) x 4.72" (119.9 mm) - Was 6810668

6 7139954

  • 7139954 - TUBELINE
  • - Use W/aux bracket 6597688 3.86" (98 mm) x 4.95" (125.8 mm)

7 6596691

  • 6596691 - TUBE

8 6810590

  • 6810590 - TUBE

9 6810591

  • 6810591 - TUBE

10 6596693

  • 6596693 - TUBE

11 6595942

  • 6595942 - TUBE

12 6810669

  • 6810669 - TUBE

13 6596710

  • 6596710 - TUBE
  • Was 6595943

14 6810228

  • 6810228 - HOSE
  • Was 6800131

15 6808703

  • 6808703 - HOSE
  • Was 6800132

16 6808955

  • 6808955 - TUBE
  • Was 6596710

17 42H56

  • 42H56 - CLAMP

18 6577697

  • 6577697 - CLAMP
  • Was 6701893

19 6816626

  • 6816626 - HOSE
  • For Standard Arm - Was 6628363

20 6803909

  • 6803909 - HOSE
  • For Long Arm - Was 6808705

21 6806461

  • 6806461 - CLAMP

22 48K16

  • 48K16 - O RING 10

23 7246777EF

  • 7246777EF - COUPLER FF CONN UNDER PRESS 1/2-3/4 SAE

24 7246777

  • 7246777 - COUPLER
  • FF MALE
  • - straight - Was 6674688

25 6652521

  • 6652521 - PLATE

26 6652943

  • 6652943 - COVER
  • grease fitting

27 6592506

  • 6592506 - CLAMP
  • Was 6659498

28 6677985

  • 6677985 - CLAMP

29 6677985

  • 6677985 - CLAMP

30 7246790

  • 7246790 - COUPLER FF FEM 1/2
  • - straight - Was 6672960

31 7246790EF

  • 7246790EF - COUPLER FF FEMALE 1/2 BDY 3/4 SAE THREAD

32 1CM640

  • 1CM640 - SCREW HEX CAP

33 1CM860

  • 1CM860 - BOLT

34 1CM870

  • 1CM870 - BOLT

35 12H15

  • 12H15 - FTG GREASE 90
  • 90 degree

36 10H25

  • 10H25 - FTG GREASE STRAIGHT

37 29CM812

  • 29CM812 - BOLT

38 30H30

  • 30H30 - CLIP

39 97K12

  • 97K12 - O-RING
  • flared end

40 6812823

  • 6812823 - ADAPTER
  • bulkhead - W/Ref. 30 - flat boss

41 79K12

  • 79K12 - O RING 10
  • Flat boss face

42 99K12

  • 99K12 - O-RING
  • Tapered boss face

43 6809573

  • 6809573 - HOSE
  • for long arm

44 6539418

  • 6539418 - HOSE
  • for standard arm - Was 6628675

45 86F8

  • 86F8 - NUT 5
  • Use W/flush face couplers

46 6652915

  • 6652915 - SEAL
  • OIL
  • dust

47 6665102

  • 6665102 - COVER

48 6666920

  • 6666920 - CLAMP
  • HALF

49 6592507

  • 6592507 - PLATE

50 6592507

  • 6592507 - PLATE

51 6810670

  • 6810670 - PLATE
  • COVER

52 6810670

  • 6810670 - PLATE
  • COVER
