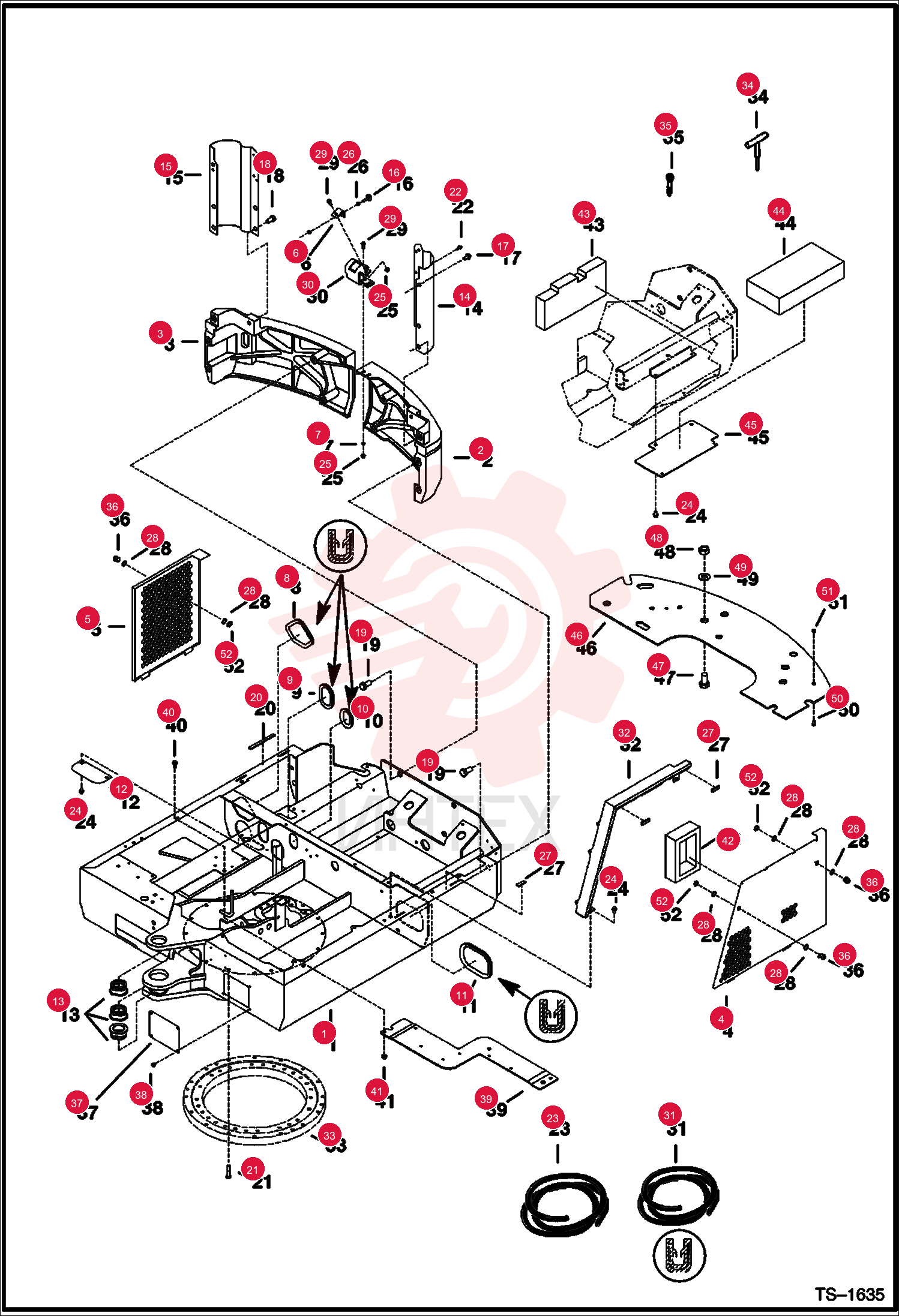

UPPERSTRUCTURE
1 6803336
- 6803336 - UPPERSTRUCTURE
- Upperstructure
2 6588239
- 6588239 - COUNTERWEIGHT
- L.H.
3 6588241
- 6588241 - CNTM WGHT
- R.H.
4 6801012
- 6801012 - PANEL
- Side
- L.H. - Was 6588611
5 6589626
- 6589626 - COVER
- Side
- R.H. - Locking
6 6804078
- 6804078 - BRACKET
7 10EM80
- 10EM80 - WASHER
8 6596723
- 6596723 - COVER
9 6589322
- 6589322 - BUSHING
- PRESS FIT
10 6587895
- 6587895 - BUMPER
- L.H.
11 6588131
- 6588131 - BUMPER
- R.H.
12 6655399
- 6655399 - BUMPER
13 29CM1225
- 29CM1225 - BOLT
14 1CM1630
- 1CM1630 - BOLT
15 1CM2040
- 1CM2040 - BOLT
16 7CM1260
- 7CM1260 - BOLT
17 26GM8016
- 26GM8016 - SCREW SELF TAPPING
18 26GM10020
- 26GM10020 - SCREW HEX THRDRLG
19 43DM8
- 43DM8 - NUT FLANGED HEX
20 61D5
- 61D5 - NUT HEX FINISHED GR5
21 6536802
- 6536802 - WASHER
22 29CM825
- 29CM825 - SCREW HEX HD W/F 8.8
23 6589060
- 6589060 - BRACKET
- latch - rear door
24 6654139
- 6654139 - MOULDING BULK/FT
- sold per foot
25 6628677
- 6628677 - ANGLE
26 6655124
- 6655124 - RING
- SLEW
27 6586494
- 6586494 - PIN
- Alignment - Service Tool for Aligning Swing Bearing When a Disassembled Upperstructure has been removed from Under- Carriage
28 6535902
- 6535902 - BOLT
- Alignment - Service Tool for Aligning Swing Bearing when an Assembled Upperstructure has been removed from Under- Carriage
29 6674389
- 6674389 - LOCK
- Was 6661695
30 6587458
- 6587458 - KEY CAP FUEL 2
31 6800002
- 6800002 - PLATE
- Access
32 26GM8013
- 26GM8013 - BOLT
33 6803380
- 6803380 - SUPPORT
- Support - Was 6628826
34 29CM1025
- 29CM1025 - SCREW FLGD HEX CAP
- Was 29CM01020B
35 43DM10
- 43DM10 - NUT FLANGED HEX
36 6803390
- 6803390 - INSULATION
37 6803862
- 6803862 - INSULATION
38 6803861
- 6803861 - INSULATION
39 6803886
- 6803886 - PLATE
40 6807155
- 6807155 - PLATE
- Counterweight - 328
- 2" thick 334 lbs.
41 17C660
- 17C660 - BOLT
- Use W/6807155 Plate
42 17C680
- 17C680 - BOLT
43 61D16
- 61D16 - LCKNUT
44 28E16
- 28E16 - WASHER
45 17C648
- 17C648 - SCREW HEX CAP
46 61D6
- 61D6 - NUT HEX FINISHED GR5
47 6675843
- 6675843 - NUT
