328.0
/

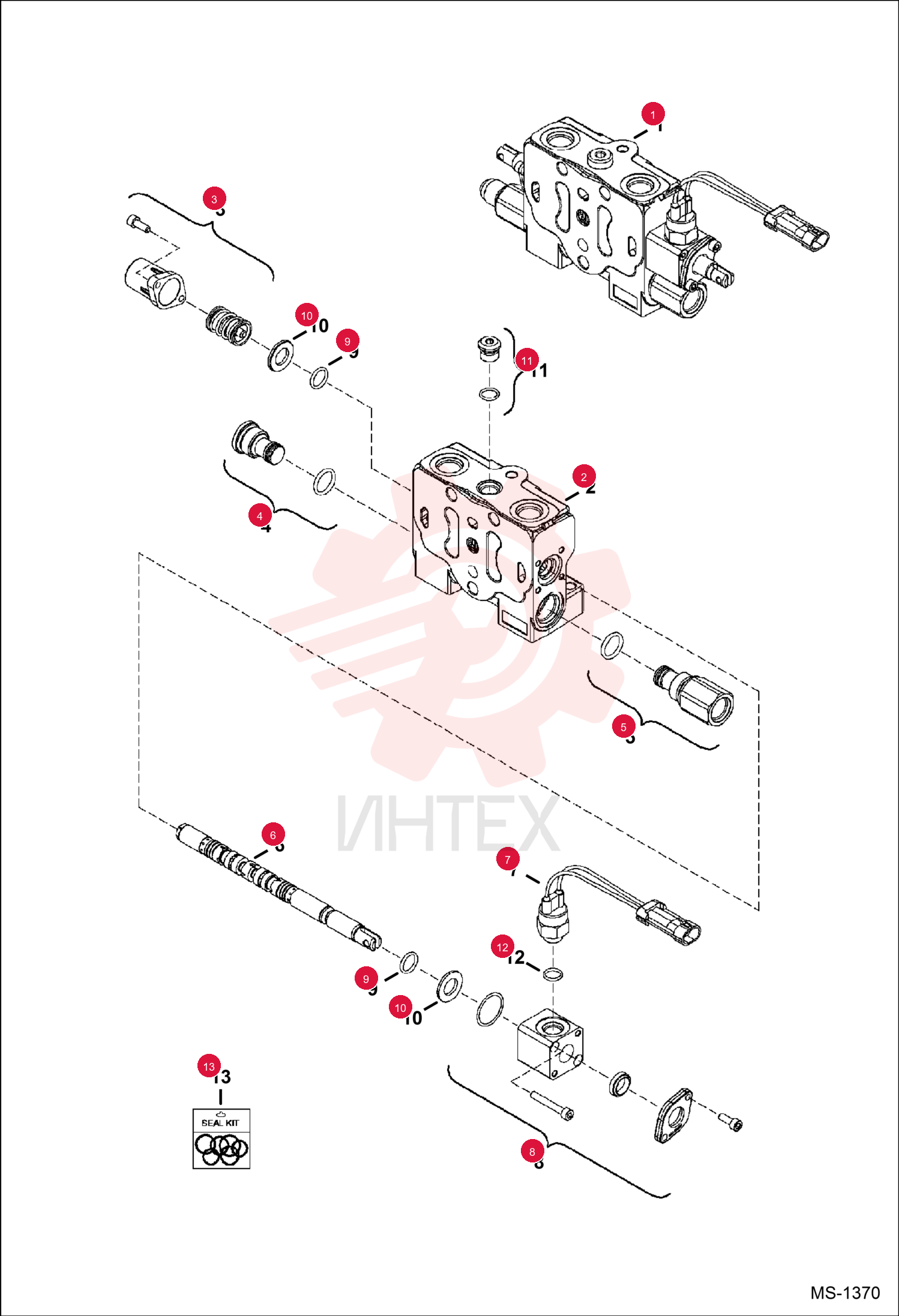

VALVE RT TRAVEL 6680118 (1)

VALVE RT TRAVEL 6680118 (1)

VALVE RT TRAVEL 6680118 (1)

1 6680118

  • 6680118 - VALVE RT TRAVEL
  • section - W/Ref. 2-12 - Was 6680018 (FFI/FI)

2 6680068

  • 6680068 - KIT
  • CAP
  • control

3 6680057

  • 6680057 - PLUG ASSEMBLY
  • assy.

4 6680092

  • 6680092 - VALVE
  • LOCK LOAD
  • assy.

5 6679913

  • 6679913 - SWITCH
  • assy.

6 6679889

  • 6679889 - SWITCH
  • Was 6680072

7 6680094

  • 6680094 - O-RING

8 6680095

  • 6680095 - WASHER

9 6680093

  • 6680093 - PLUG ASSEMBLY
  • assy.

10 6679605

  • 6679605 - O-RING

11 6680052

  • 6680052 - KIT
  • SEAL
