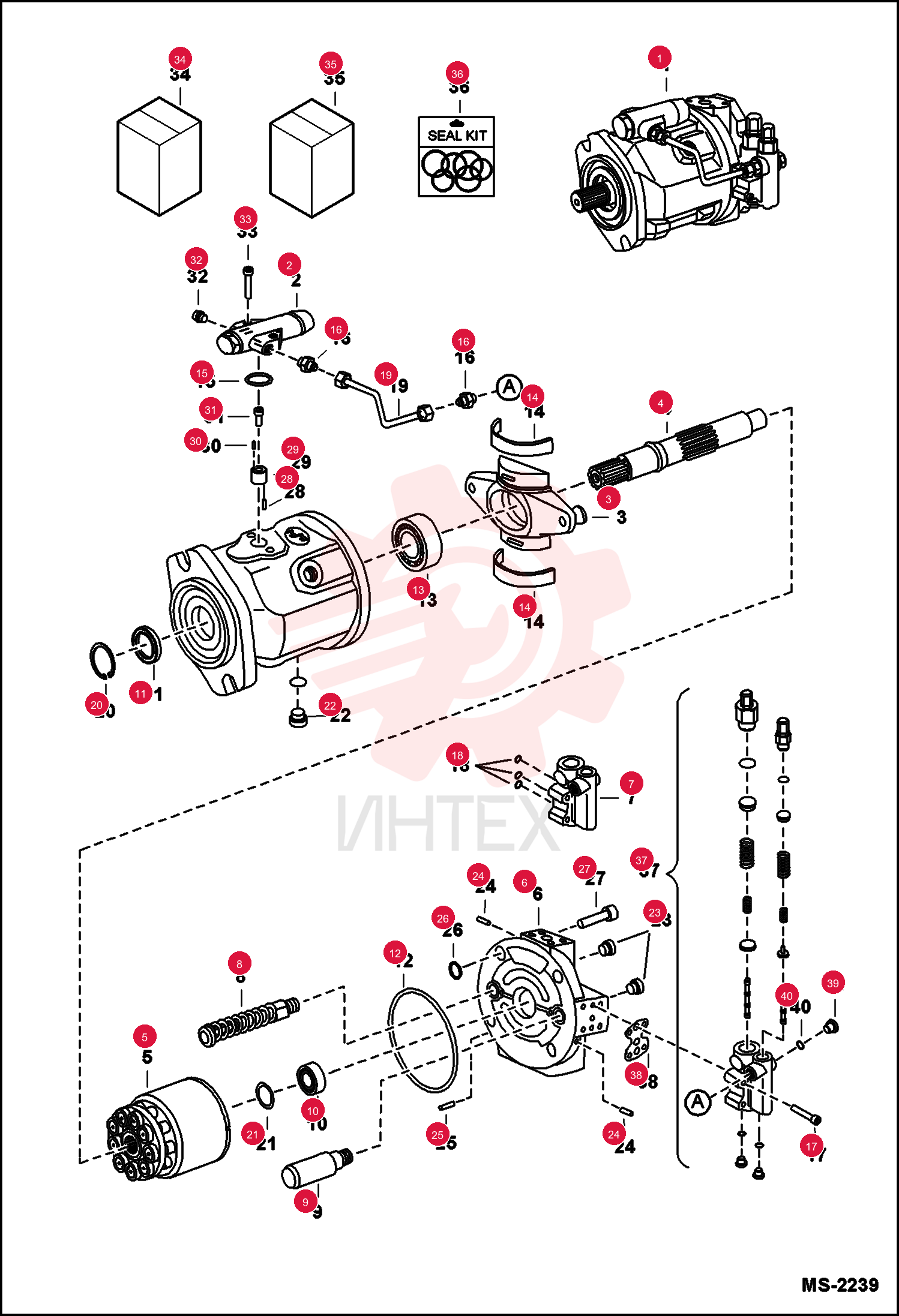

PUMP 6689769REM

PUMP 6689769REM

PUMP 6689769REM

1 6689769REM

  • 6689769REM - PUMP

2 6689769

  • 6689769 - PUMP

3 6693358

  • 6693358 - SPRING SET

4 6686768

  • 6686768 - VALVE
  • does not include spring seat - Also Order 6679148 spring & 6679149 spring - Was 6690572

5 6690573

  • 6690573 - SWASHPLATE ASSY

6 6686747

  • 6686747 - SHAFT DRIVE

7 6672220

  • 6672220 - ASSY
  • BLOCK
  • Ws 6690574

8 6690575

  • 6690575 - PORT PLATE

9 6671783

  • 6671783 - PLUG
  • goes in the X port - Was 6686767

10 6686770

  • 6686770 - O-RING

11 6672255

  • 6672255 - BOLT
  • Was 6691489

12 6686776

  • 6686776 - PIPE
  • W/Ref. 16 - Was 6692547

13 6691458

  • 6691458 - RING
  • Was 6692550

14 6691449

  • 6691449 - SHIM
  • adjusting

15 6686757

  • 6686757 - PLUG
  • W/ o-ring - Was 6692551

16 6671787

  • 6671787 - O-RING

17 6682879

  • 6682879 - PIN
  • break-off - Was 6688039

18 6672235

  • 6672235 - DOWEL PIN
  • dowel - Was 6691462

19 6692552

  • 6692552 - SCREW

20 6692553

  • 6692553 - PIN
  • spring

21 6676391

  • 6676391 - CARRIER
  • Was 6692554

22 6676393

  • 6676393 - PIN
  • spring - Was 6692555

23 6688518

  • 6688518 - BOLT
  • Was 6692556

24 6692557

  • 6692557 - PLUG
  • W/ o-ring - Was 6692557

25 6692558

  • 6692558 - SCREW

26 6690576

  • 6690576 - STROKING UNITS
  • W/Ref. 8-9

27 6690577

  • 6690577 - BEARING KIT
  • W/Ref. 10
  • 13-14

28 6686695

  • 6686695 - SEAL KIT
  • W/Ref. 11-12
  • 18
  • 23 & 26

29 7001950

  • 7001950 - CONTROL
  • Use W/gasket - must replace gasket each time controller is removed

30 6691519

  • 6691519 - GASKET
  • one time use - must replace when controller is removed

31 6691491

  • 6691491 - PLUG
  • W/Ref. 40
