337.0
/

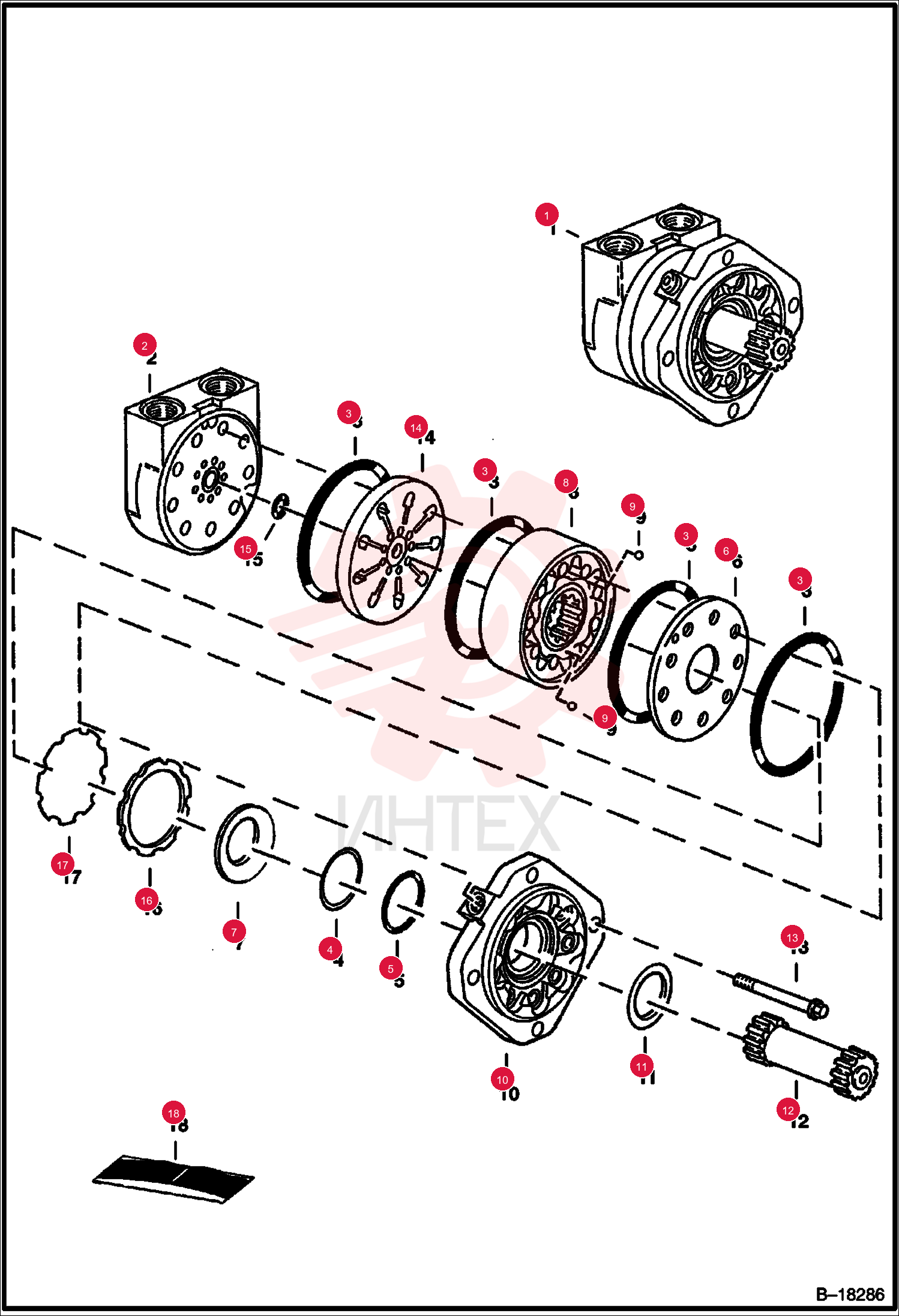

MOTOR, SWING 6672743

MOTOR, SWING 6672743

MOTOR, SWING 6672743

1 6672743

  • 6672743 - MOTOR
  • SWING
  • Assy. - W/Ref. 2- 17 - Eaton #1570031003

2 6673726

  • 6673726 - END CAP

3 6668075

  • 6668075 - SEAL

4 6673727

  • 6673727 - PLATE
  • Balance

5 6673728

  • 6673728 - GEROLER

6 6651542

  • 6651542 - BALL
  • STEEL

7 6673729

  • 6673729 - FLANGE

8 6513520

  • 6513520 - SEAL

9 6673730

  • 6673730 - DRIVE
  • Was 6663730

10 6673731

  • 6673731 - BOLT

11 6668091

  • 6668091 - VALVE
  • PLATE

12 6668092

  • 6668092 - O-RING

13 6668198

  • 6668198 - KIT
  • SEAL
  • Ref. 3-5
  • 11 & 15-17 - Seal Kit include more parts than are Use W/this application
