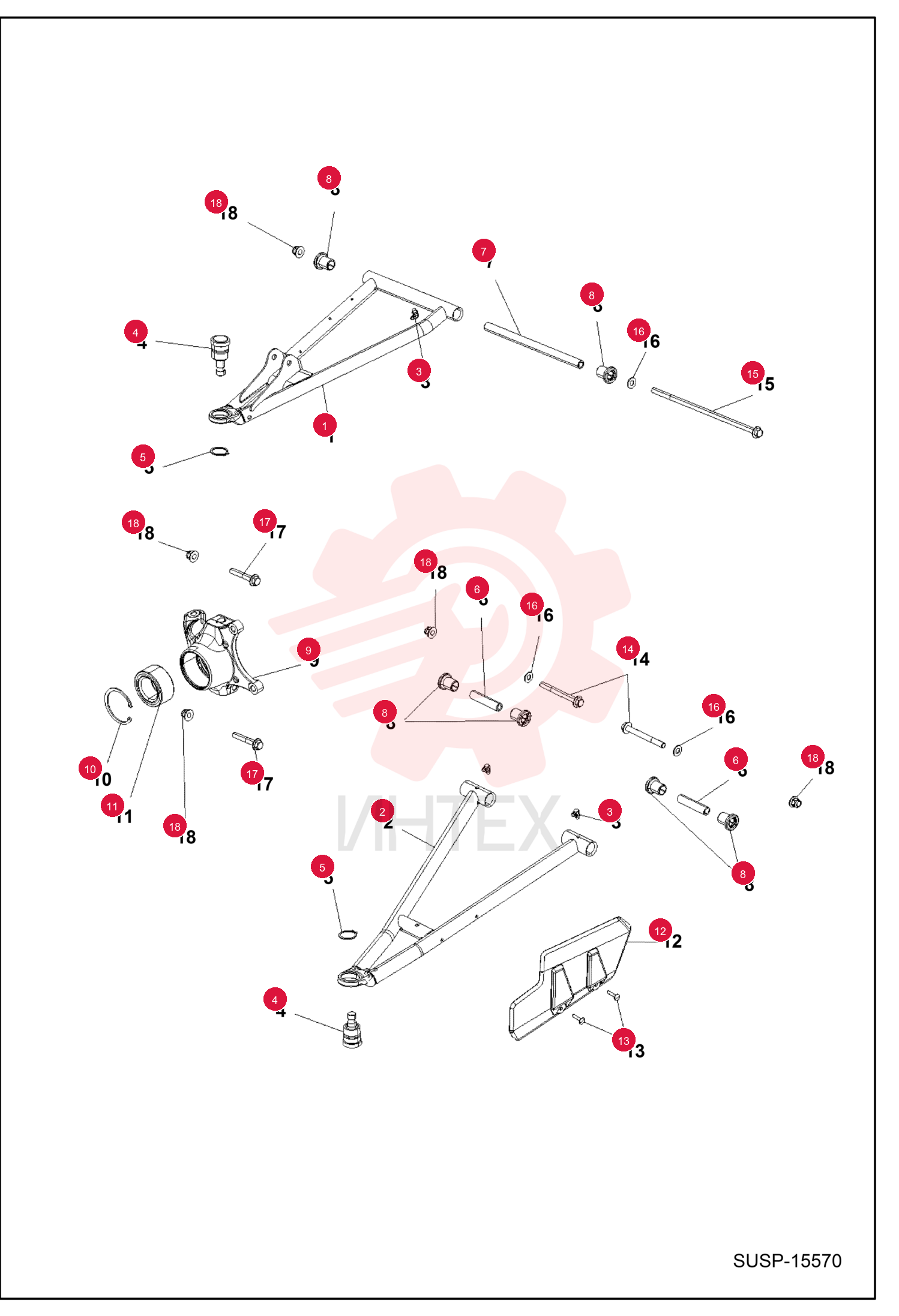

A-ARM 7258771 (2)

A-ARM 7258771 (2)

A-ARM 7258771 (2)

1 7258771

  • 7258771 - A-ARM
  • LH

2 7258367

  • 7258367 - A-ARM
  • RH

3 7027783

  • 7027783 - A-ARM
  • FRONT LOWER LH

4 7027784

  • 7027784 - A-ARM
  • FRONT LOWER RH

5 12H25

  • 12H25 - FITTING

6 7252945

  • 7252945 - BALL JOINT

7 7016583

  • 7016583 - RING
  • RETAINER
  • EXTERNAL
  • 1.188

8 7252946

  • 7252946 - TUBE
  • PIVOT

9 7252947

  • 7252947 - TUBE
  • PIVOT

10 7252948

  • 7252948 - BUSHING
  • ARM CONTROL

11 7281867

  • 7281867 - BEARING
  • CARRIER
  • RH - Was 7257137

12 7281866

  • 7281866 - BEARING
  • CARRIER
  • LH

13 7267383

  • 7267383 - RING
  • RETAINING

14 7027620

  • 7027620 - BEARING
  • BALL SEALED

15 7027853

  • 7027853 - SHIELD
  • CV FRT LH

16 7027854

  • 7027854 - SHIELD
  • CV FRT RH

17 7027760

  • 7027760 - RIVET

18 7023118

  • 7023118 - SCREW

19 7027740

  • 7027740 - SCREW

20 7025509

  • 7025509 - WASHER
  • FLAT

21 7025495

  • 7025495 - BOLT
  • FLANGE

22 7016518

  • 7016518 - NUT
