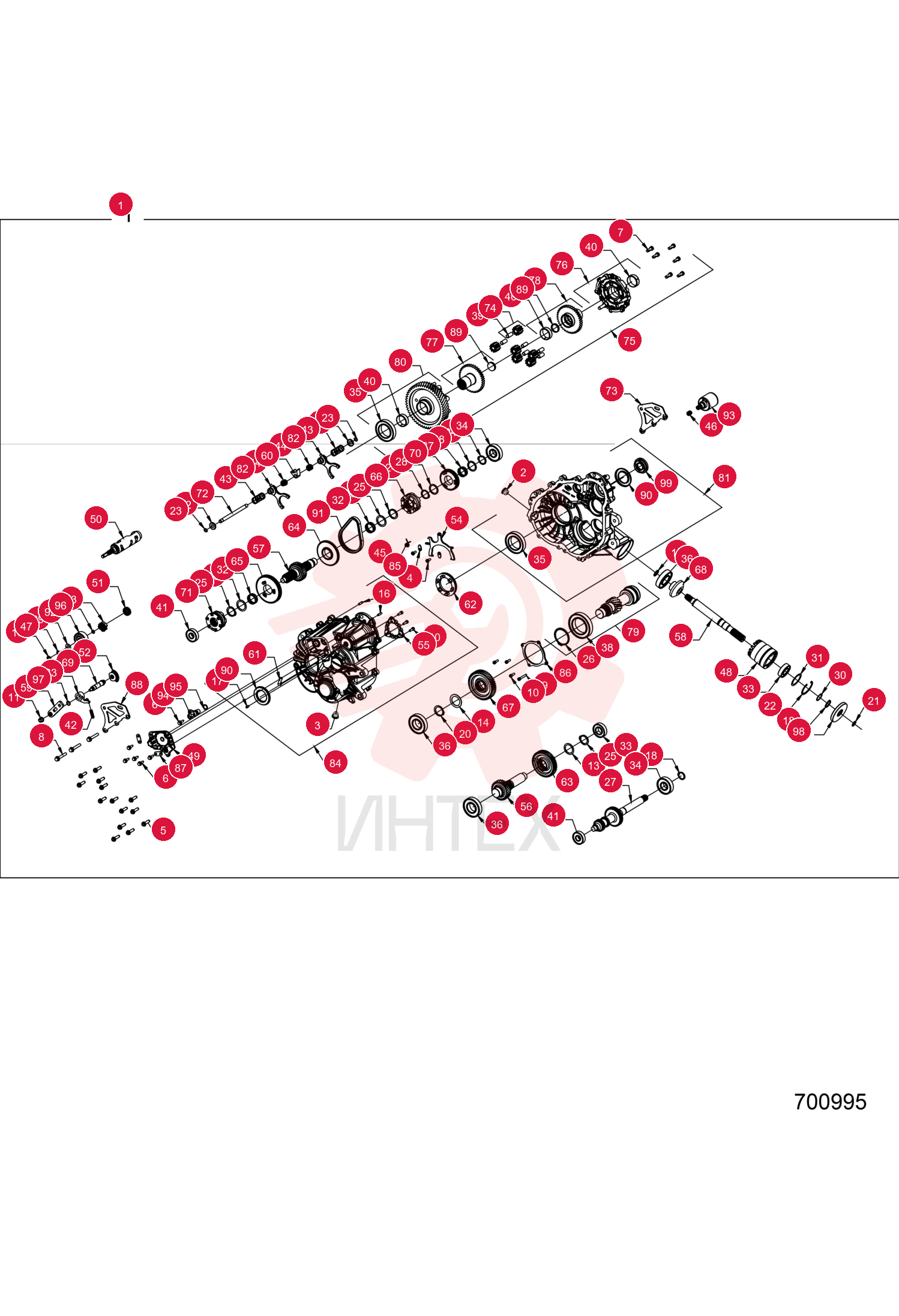

GEARCASE MAIN ASSEMBLY 7257108 (1)
1 7257108
- 7257108 - GEARCASE MAIN ASSEMBLY
- W/ Ref. 2-99
2 7017639
- 7017639 - PLUG
- SKT HD 1SO 6149 M18 X 1.5
3 7017640
- 7017640 - PLUG
- SKT HEAD W/MAG M18X1.5
4 7017678
- 7017678 - SCREW
5 7017682
- 7017682 - SCREW
6 7027569
- 7027569 - SCREW
7 7027567
- 7027567 - SCREW
8 7027570
- 7027570 - SCREW
9 7027571
- 7027571 - SCREW
10 7027590
- 7027590 - SCREW
11 7027572
- 7027572 - NUT
- LOCK
12 7017765
- 7017765 - WASHER
- CUP
13 7027573
- 7027573 - WASHER
14 7027574
- 7027574 - WASHER
15 7027575
- 7027575 - WASHER
16 7017620
- 7017620 - PIN
- DOWEL
- 6 X 20
17 7027709
- 7027709 - SPRING
- PIN SLOTTED
18 7017652
- 7017652 - RING
- SNAP
19 7017660
- 7017660 - RING
- RETAINING
20 7017653
- 7017653 - RING
- RETAINING
21 7017656
- 7017656 - RING
- RETAINING EXTERNAL SHR-66
22 7017657
- 7017657 - RING
- RETAINING INTERNAL 2.047
23 7017661
- 7017661 - RING
- RETAINING
24 7027559
- 7027559 - RING
- RETAINING
25 7027576
- 7027576 - RING
- RETAINING EXTERNAL
26 7027577
- 7027577 - RING
- RETAINING
27 7281852
- 7281852 - SHAFT
- INPUT
28 7027557
- 7027557 - WASHER
- THRUST
29 7017763
- 7017763 - WASHER
- THRUST
30 7017709
- 7017709 - SHIM
- 1.180 X .995
31 7017711
- 7017711 - SHIM
- 2.040 OD X 1.630 ID
32 7027555
- 7027555 - BEARING
- NEEDLE
33 7017441
- 7017441 - BEARING
34 7017443
- 7017443 - BEARING
35 7027556
- 7027556 - BEARING
- BALL
36 7017456
- 7017456 - BEARING
- BALL
37 7027558
- 7027558 - BEARING
- NEEDLE
38 7027578
- 7027578 - BEARING
- BALL
39 7027560
- 7027560 - BEARING
- PLAIN
40 7027561
- 7027561 - BEARING
- PLAIN
41 7017447
- 7017447 - BEARING
- BALL
42 7017730
- 7017730 - SPRING
- COMP
43 7017732
- 7017732 - SPRING
- COMP
44 7017731
- 7017731 - SPRING
- COMP
45 7017724
- 7017724 - SPRING
- TORSION RETURN
46 7017726
- 7017726 - SPRING
- COMP 54 OD X .44ID X .05
47 7027589
- 7027589 - WASHER
- SPRING
48 7017744
- 7017744 - TUBE
- SNORKLE MACH
49 7017497
- 7017497 - COVER
- GEARCASE
50 7027614
- 7027614 - DRUM
- SHIFT
51 7017540
- 7017540 - GEAR
- SECTOR 16T
52 7017541
- 7017541 - GEAR
- SECTOR 31T-CUT TO 11T
53 7281898
- 7281898 - DETENT
54 7027613
- 7027613 - FORK
- SHIFT
55 7255817
- 7255817 - PLATE
- FACE
56 7027579
- 7027579 - SHAFT
- IDLER 29T
57 7258434
- 7258434 - SHAFT
- REVERSE
58 7027598
- 7027598 - SHAFT
- OUTPUT FRONT
59 7027615
- 7027615 - BELLCRANK
60 7017495
- 7017495 - COLLAR
- SHIFT
61 7017745
- 7017745 - TUBE
- VENT 90-1/4" HOSE
62 7017516
- 7017516 - KNUCKLE
- DOG ENGAGEMENT
63 7258438
- 7258438 - GEAR
64 7258302
- 7258302 - SPROCKET
65 7027580
- 7027580 - GEAR
- LOW 67T
66 7027581
- 7027581 - KNUCKLE
- ENGAGEMENT DOG
67 7027582
- 7027582 - GEAR
- STAGE 3 46T
68 7027583
- 7027583 - GEAR
- 13T
69 7027584
- 7027584 - SHAFT
- SHIFT
70 7281875
- 7281875 - GEAR
71 7258305
- 7258305 - COLLAR
- PARK
72 7255814
- 7255814 - SHAFT
73 7258306
- 7258306 - BRACKET
- MOUNTING
74 7017411
- 7017411 - GEAR
- SUB ASSY
75 7027593
- 7027593 - DIFF
- LOCKING
- 7
- 35
- 39
- 40
- 74
- 76-78
- 80
- 89
76 7027596
- 7027596 - COVER
- DIFF
77 7027594
- 7027594 - GEAR
- SIDE 39T
78 7027595
- 7027595 - GEAR
- SIDE 39T
79 7027591
- 7027591 - GEAR PINION
80 7027597
- 7027597 - GEAR
- 53T
81 7258307
- 7258307 - ASSY
- CASE LH
- W/ Ref. 2
- 35
- 99
- (1) of 99
82 7027612
- 7027612 - FORK
- SHIFT ASSY
83 7027611
- 7027611 - PAWL
- ROLLER
84 7258308
- 7258308 - CASE ASSEMBLY RH
- W/ Ref. 3
- 10
- 16
- 17
- 55
- 61
- (1) of 90
85 7027565
- 7027565 - RETAINER
- FORK
86 7027585
- 7027585 - COVER
- BEARING
87 7027592
- 7027592 - BRACKET
- HARNESS WIRE
88 7258310
- 7258310 - BRACKET
- MOUNTING
89 7027562
- 7027562 - PLUG
- EXPANSION
90 7027566
- 7027566 - SEAL
- SHAFT
91 7017484
- 7017484 - CHAIN
- SILENT
92 7027762
- 7027762 - SWITCH
- ROTARY
93 7027618
- 7027618 - SOLENOID
94 7248188
- 7248188 - SENSOR
- TRANS SPEED
95 7017616
- 7017616 - O-RING
96 7255815
- 7255815 - O-RING
97 7255816
- 7255816 - O-RING
98 7017695
- 7017695 - SEAL
- TRIPLE LIP 25X80X10
99 7017688
- 7017688 - SEAL
