Bobcat
/
3400
/

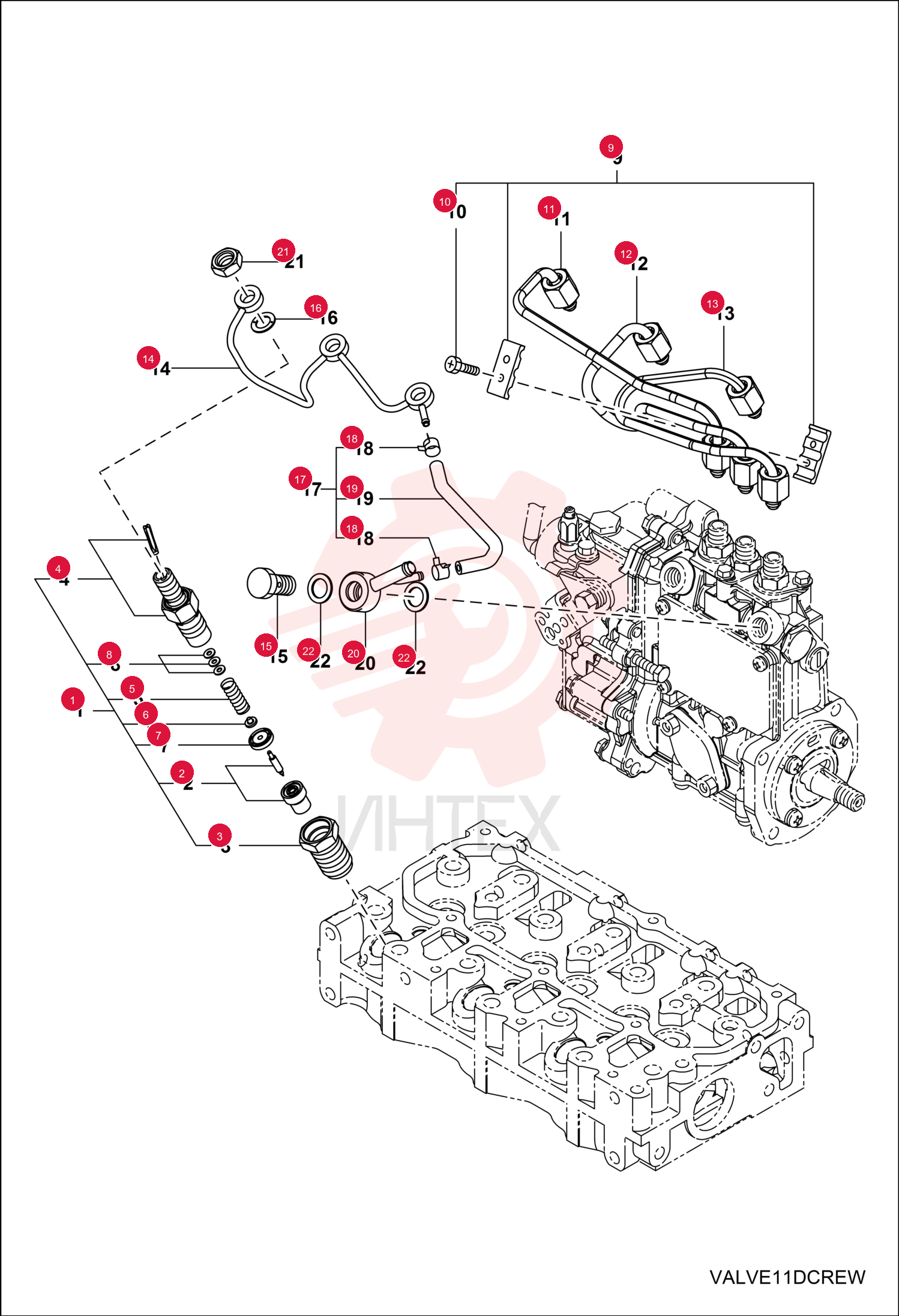

INJECTOR, FUEL ASSY 7028448 (2)

INJECTOR, FUEL ASSY 7028448 (2)

INJECTOR, FUEL ASSY 7028448 (2)

1 7028448

  • 7028448 - INJECTOR
  • FUEL ASSY
  • Ref. 2-8 - Was 7018570

2 7018571

  • 7018571 - NOZZLE

3 7018572

  • 7018572 - NUT

4 7018573

  • 7018573 - HOLDER
  • NOZZLE ASSY

5 7018574

  • 7018574 - SPRING
  • NOZZLE

6 7018575

  • 7018575 - SEAT
  • SPRING

7 7018576

  • 7018576 - SPACER
  • VALVE STOP

8 7018577

  • 7018577 - KIT
  • SHIM

9 7018578

  • 7018578 - RETAINER
  • PIPE
  • W/Ref. 10

10 7018579

  • 7018579 - BOLT

11 7018580

  • 7018580 - PIPE
  • FUEL INJ

12 7018581

  • 7018581 - PIPE
  • FUEL INJ

13 7018582

  • 7018582 - PIPE
  • FUEL INJ

14 7018583

  • 7018583 - PIPE
  • RETURN ASSY

15 7018584

  • 7018584 - BOLT

16 7018585

  • 7018585 - GASKET
  • RETURN

17 7018587

  • 7018587 - CLIP
  • HOSE

18 7018588

  • 7018588 - PIPE
  • RETURN FUEL

19 7018589

  • 7018589 - JOINT

20 7018590

  • 7018590 - NUT

21 7018560

  • 7018560 - WASHER
