Bobcat
/
3400
/

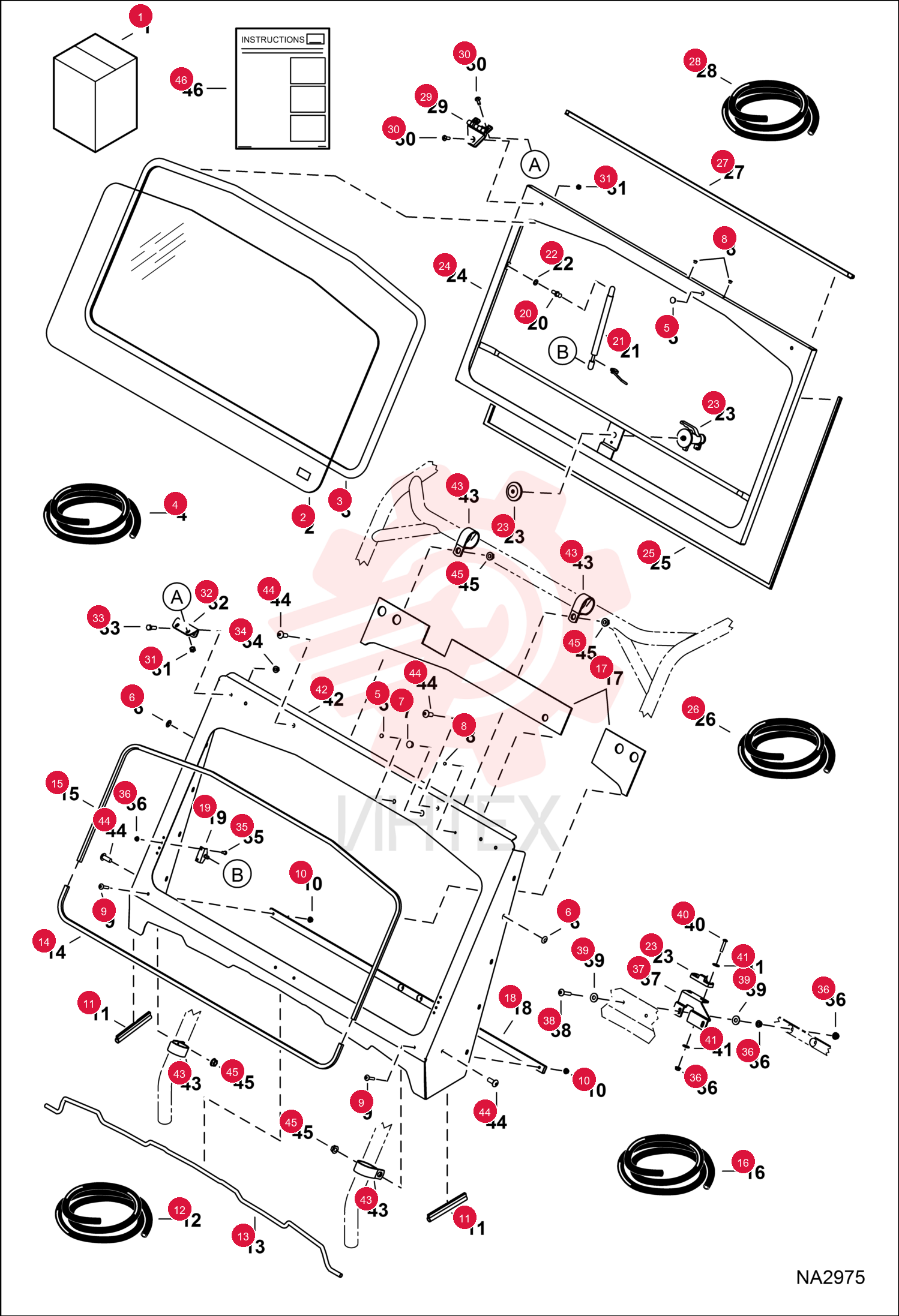

KIT, WINDSHIELD TIP 7227828 (1)

KIT, WINDSHIELD TIP 7227828 (1)

KIT, WINDSHIELD TIP 7227828 (1)

1 7227828

  • 7227828 - KIT
  • WINDSHIELD TIP
  • Ref. 2-43

2 7021663

  • 7021663 - WINDOW
  • CAB FRONT

3 7021723

  • 7021723 - SEAL WINDOW BULK/FT
  • bulk - sold per foot

4 7021709

  • 7021709 - PLUG

5 7021710

  • 7021710 - PLUG

6 7021714

  • 7021714 - PLUG

7 7021711

  • 7021711 - PLUG

8 7021694

  • 7021694 - SCREW

9 7021701

  • 7021701 - NUT FLANGE

10 7021728

  • 7021728 - SEAL WINDOW
  • BULK/FT
  • bulk - sold per foot

11 7021726

  • 7021726 - TRIM
  • EDGE
  • bulk - sold per foot

12 7021683

  • 7021683 - INSULATION
  • cut to fit

13 7021731

  • 7021731 - TUBE STRUCTURAL

14 7021645

  • 7021645 - BRACKET

15 7021646

  • 7021646 - STUD
  • BALL

16 7021661

  • 7021661 - GAS SPRING

17 7021739

  • 7021739 - WASHER
  • Was 4E5

18 7021751

  • 7021751 - HANDLE
  • assy W/striker

19 7021743

  • 7021743 - FRAME
  • WINDSHIELD

20 7021716

  • 7021716 - SEAL BULK WINDOW
  • bulk - sold per foot

21 7021729

  • 7021729 - SEAL BULK WINDOW
  • bulk - sold per foot

22 7021674

  • 7021674 - HINGE
  • WINDOW

23 7021697

  • 7021697 - SCREW

24 7021704

  • 7021704 - NUT
  • LOCK

25 7021687

  • 7021687 - MOUNT
  • HINGE

26 7021671

  • 7021671 - BOLT
  • Was 1CM825

27 7021702

  • 7021702 - NUT
  • Was 43DM8

28 7021691

  • 7021691 - SCREW

29 7021700

  • 7021700 - NUT
  • Was 43DM5

30 7021688

  • 7021688 - MOUNT
  • STRIKER

31 7021694

  • 7021694 - SCREW

32 7021736

  • 7021736 - WASHER
  • Was 25E13

33 7021693

  • 7021693 - SCREW

34 7021735

  • 7021735 - WASHER
  • Was 25E10

35 7021706

  • 7021706 - PANEL
  • WINDSHIELD

36 7021649

  • 7021649 - CLAMP

37 7021690

  • 7021690 - SCREW

38 43DM10

  • 43DM10 - NUT FLANGED HEX

39 6990595

  • 6990595 - INSTRUCTIONS
