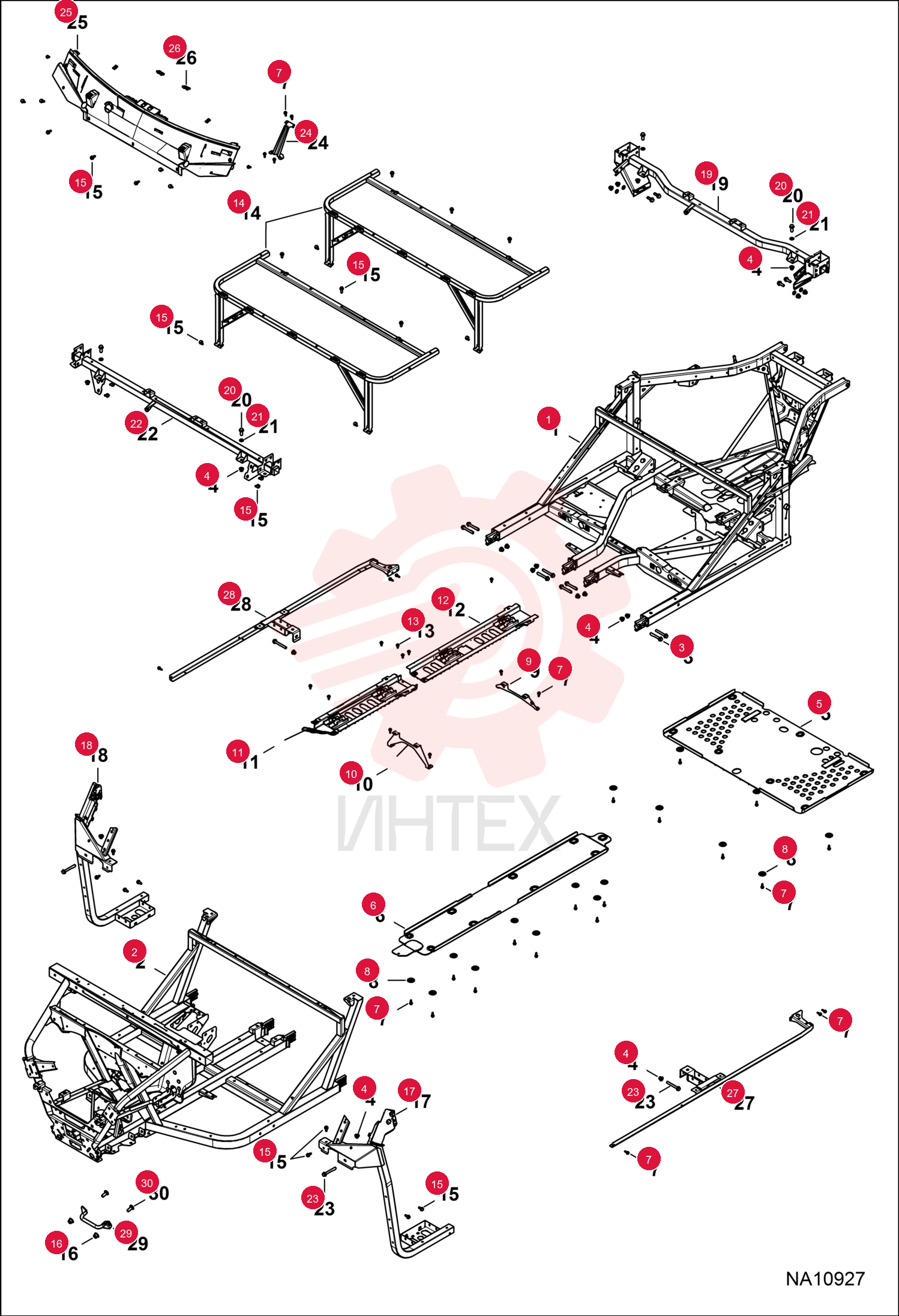

FRAME MAIN 7308661 (1)

FRAME MAIN 7308661 (1)

FRAME MAIN 7308661 (1)

1 7308661

  • 7308661 - FRAME MAIN

2 7308650

  • 7308650 - FRAME FRONT

3 7258980

  • 7258980 - BOLT

4 7016518

  • 7016518 - NUT

5 7258981

  • 7258981 - PLATE
  • SKID

6 7258976

  • 7258976 - PLATE
  • SKID

7 7016645

  • 7016645 - SCREW

8 7016753

  • 7016753 - WASHER

9 7258281

  • 7258281 - BRACKET

10 7258982

  • 7258982 - BRACKET

11 7258282

  • 7258282 - PANEL

12 7258983

  • 7258983 - TRAY
  • ROUTING

13 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

14 7258283

  • 7258283 - FRAME

15 7016175

  • 7016175 - BOLT

16 7016520

  • 7016520 - NUT

17 7308607

  • 7308607 - SUPPORT FLOOR LH BLACK

18 7308609

  • 7308609 - SUPPORT FLOOR RH BLACK

19 7257103

  • 7257103 - SUPPORT

20 7016642

  • 7016642 - SCREW

21 7025509

  • 7025509 - WASHER
  • FLAT

22 7261020

  • 7261020 - SUPPORT

23 7025497

  • 7025497 - BOLT
  • FLANGE

24 7258285

  • 7258285 - BRACKET
  • CENTERING

25 7252830

  • 7252830 - SUPPORT
  • WINDOW

26 7023820

  • 7023820 - NUT

27 7258977

  • 7258977 - BRACKET
  • SUPPORT

28 7258978

  • 7258978 - BRACKET
  • SUPPORT

29 7025526

  • 7025526 - HOOK
  • TOW

30 7024089

  • 7024089 - BOLT
  • CARRIAGE
