Bobcat
/
3400XL
/

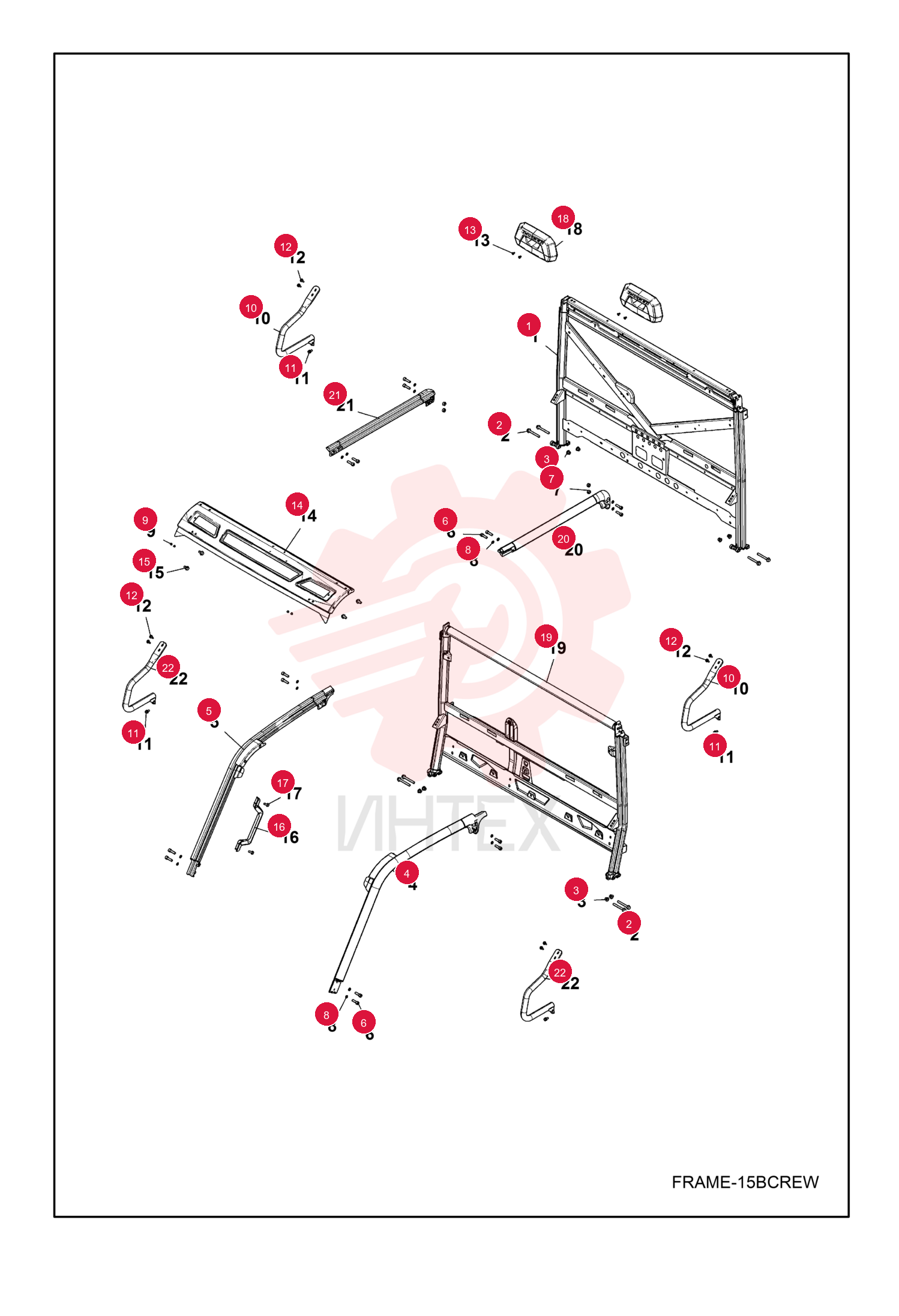

FRAME 7280798 (1)

FRAME 7280798 (1)

FRAME 7280798 (1)

1 7280798

  • 7280798 - FRAME

2 7261021

  • 7261021 - FRAME

3 7025497

  • 7025497 - BOLT
  • FLANGE

4 7016518

  • 7016518 - NUT

5 7258970

  • 7258970 - FRAME
  • CAB FRONT LH

6 7258971

  • 7258971 - FRAME
  • CAB FRONT RH

7 7258275

  • 7258275 - SCREW

8 7025506

  • 7025506 - NUT
  • LOCK

9 7258276

  • 7258276 - WASHER

10 7258277

  • 7258277 - PLUG

11 7252825

  • 7252825 - BOLSTER
  • HIP RH

12 7025485

  • 7025485 - BOLT
  • FLANGE

13 7024692

  • 7024692 - BOLT

14 7027759

  • 7027759 - RIVET

15 7025544

  • 7025544 - PLATE
  • MOUNTING WINDSHIELD

16 7016169

  • 7016169 - BOLT

17 7252826

  • 7252826 - HANDLE
  • GRIP

18 7016175

  • 7016175 - BOLT

19 7016423

  • 7016423 - FLANGE
  • HEADREST
  • BLK

20 7257098

  • 7257098 - FRAME

21 7258972

  • 7258972 - FRAME
  • CAB REAR LH

22 7258973

  • 7258973 - FRAME
  • CAB REAR RH

23 7258974

  • 7258974 - BOLSTER
  • HIP FRONT
