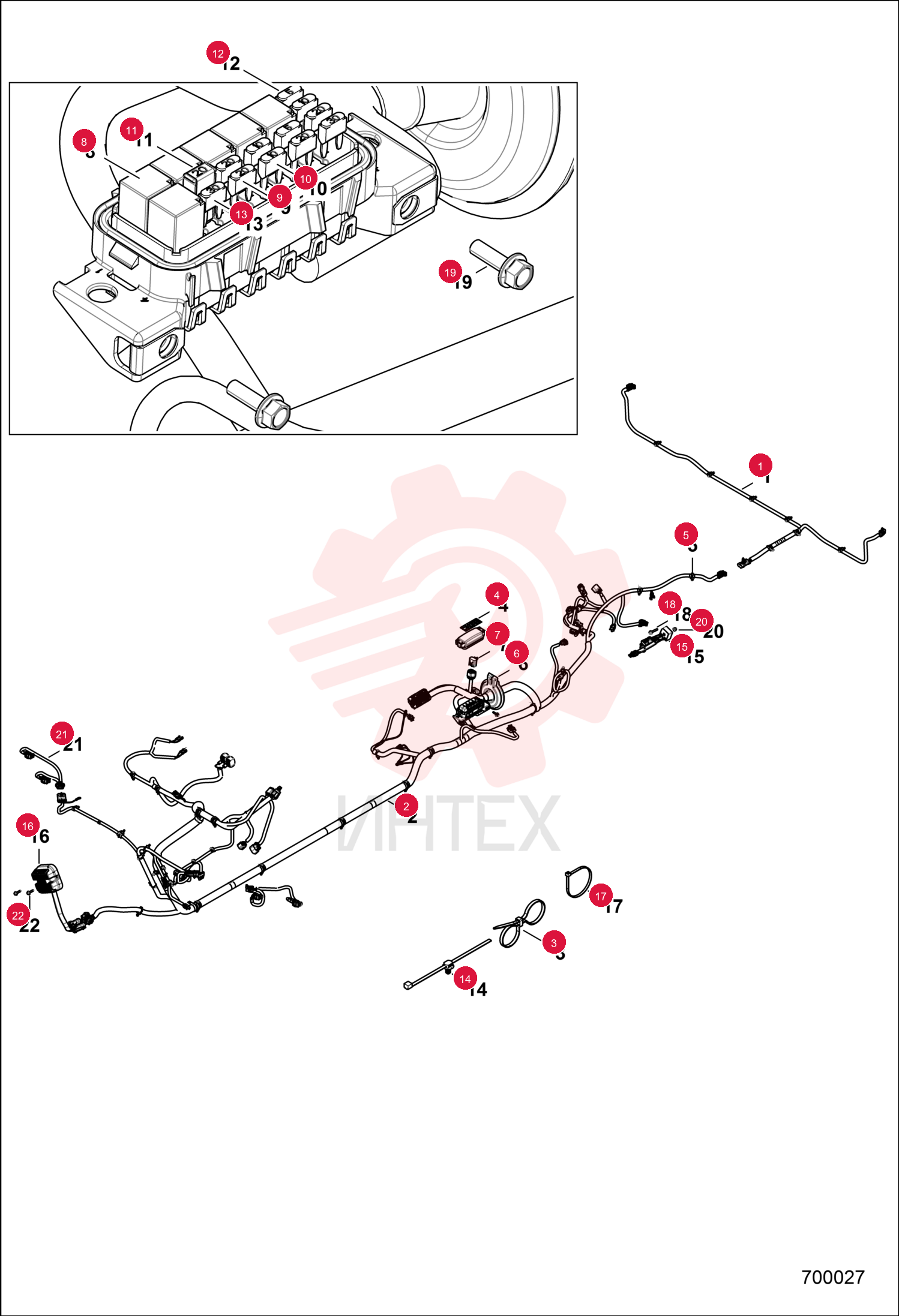

HARNESS, LIGHT REAR 7258345 (4)

HARNESS, LIGHT REAR 7258345 (4)

HARNESS, LIGHT REAR 7258345 (4)

1 7258345

  • 7258345 - HARNESS
  • LIGHT REAR

2 7308663

  • 7308663 - HARNESS CHASSIS

3 7259226

  • 7259226 - TIE
  • CABLE

4 7258346

  • 7258346 - DECAL
  • FUSE RELAY

5 7023400

  • 7023400 - CLIP
  • ROUTING

6 7027659

  • 7027659 - GROMMET
  • HARNESS

7 7017501

  • 7017501 - COVER
  • DIAGNOSTIC W/CLIP

8 7017645

  • 7017645 - RELAY
  • SPST SERIES 303 SEALED

9 6707622

  • 6707622 - FUSE
  • 20A MINI 5

10 6707620

  • 6707620 - FUSE
  • 10A MINI 5

11 7258343

  • 7258343 - BREAKER
  • CIRCUIT

12 7028615

  • 7028615 - SWITCH
  • MOMENTARY HORN

13 7017532

  • 7017532 - FUSE
  • MAIN 30 AMP

14 7023400

  • 7023400 - CLIP
  • ROUTING

15 7016573

  • 7016573 - RELAY
  • SOLID STATE
  • 9A
  • LONG LD

16 7308672

  • 7308672 - REGULATOR VOLTAGE

17 7016245

  • 7016245 - TIE
  • CABLE

18 7023435

  • 7023435 - BOLT
  • FLANGE

19 7016645

  • 7016645 - SCREW

20 7016525

  • 7016525 - NUT

21 7260168

  • 7260168 - HARNESS
  • HEAD LIGHT

22 7258335

  • 7258335 - SCREW
