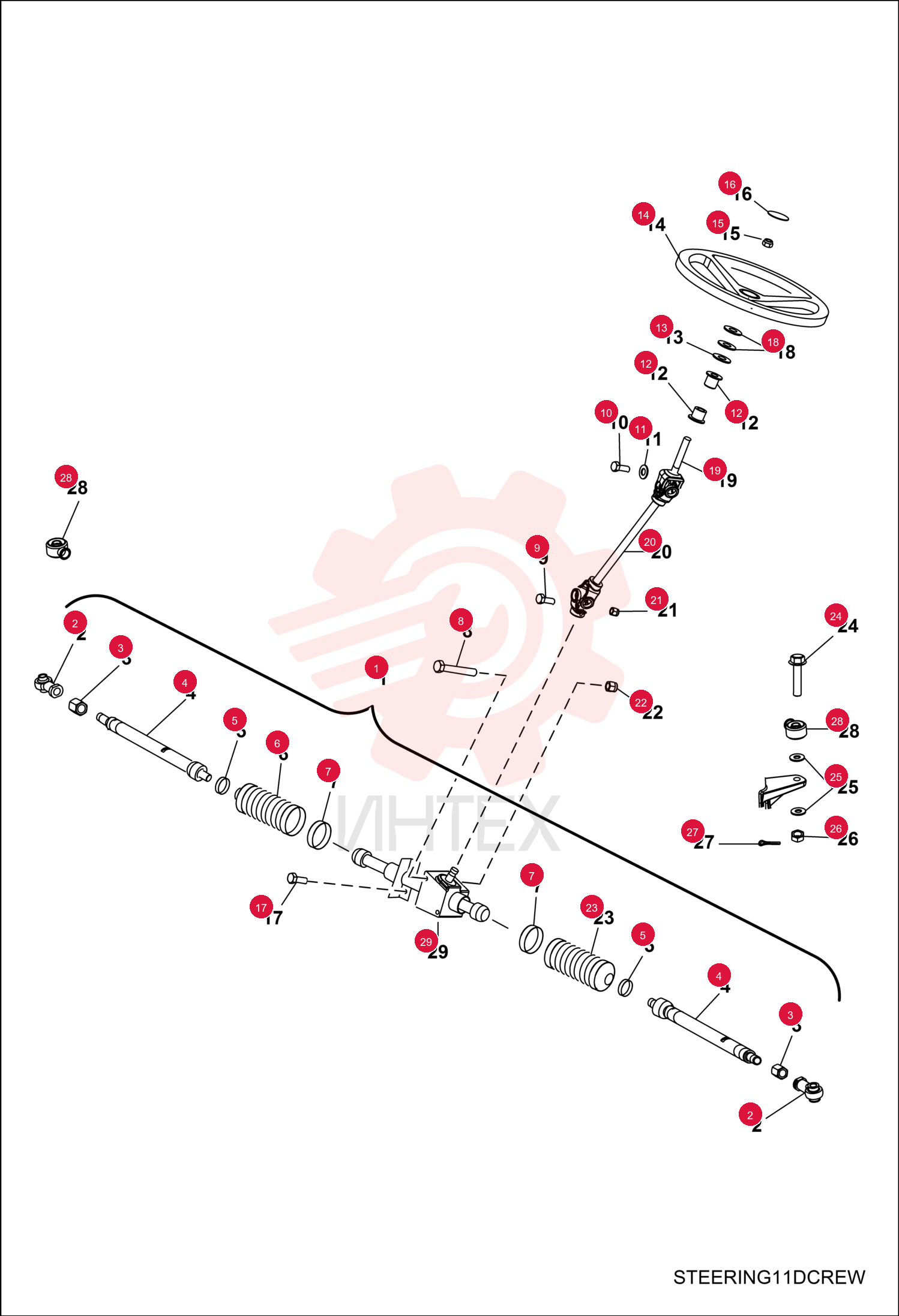

HOUSING, GEARBOX STEERING 7018670 (1)

HOUSING, GEARBOX STEERING 7018670 (1)

HOUSING, GEARBOX STEERING 7018670 (1)

1 7018670

  • 7018670 - HOUSING
  • GEARBOX STEERING
  • Ref. 2-7
  • 23 & 29

2 7016587

  • 7016587 - END
  • ROD TIE
  • Was 7023238

3 7016504

  • 7016504 - NUT
  • Was NLA

4 7023235

  • 7023235 - KIT BOOT RACK LH
  • W/Ref. 5 & 7 - Was NLA

5 7016178

  • 7016178 - BOLT

6 7016594

  • 7016594 - SCREW

7 7016159

  • 7016159 - BOLT

8 7016769

  • 7016769 - WASHER
  • SPRING LOCK

9 7016242

  • 7016242 - BUSHING
  • STEERING SHAFT

10 7016230

  • 7016230 - BUSHING

11 7016847

  • 7016847 - WHEEL
  • STRG
  • 381 mm (15")

12 7016522

  • 7016522 - NUT

13 7016277

  • 7016277 - CAP
  • STEERING WHEEL
  • BOBCAT

14 7016176

  • 7016176 - BOLT

15 7016770

  • 7016770 - WASHER
  • WAVE

16 7016671

  • 7016671 - SHAFT
  • STEERING
  • UPPER

17 7017705

  • 7017705 - SHAFT
  • STEERING LOWER W/JOINTS
  • lower - W/joints

18 7016528

  • 7016528 - NUT

19 7016526

  • 7016526 - NUT

20 7023236

  • 7023236 - KIT BOOT RACK RH
  • W/Ref. 5 & 7 - Was NLA

21 7016167

  • 7016167 - BOLT

22 7016754

  • 7016754 - WASHER

23 7016519

  • 7016519 - NUT

24 7016541

  • 7016541 - PIN
  • COTTER

25 7023237

  • 7023237 - BOOT
  • END ROD TIE
  • Was NLA
