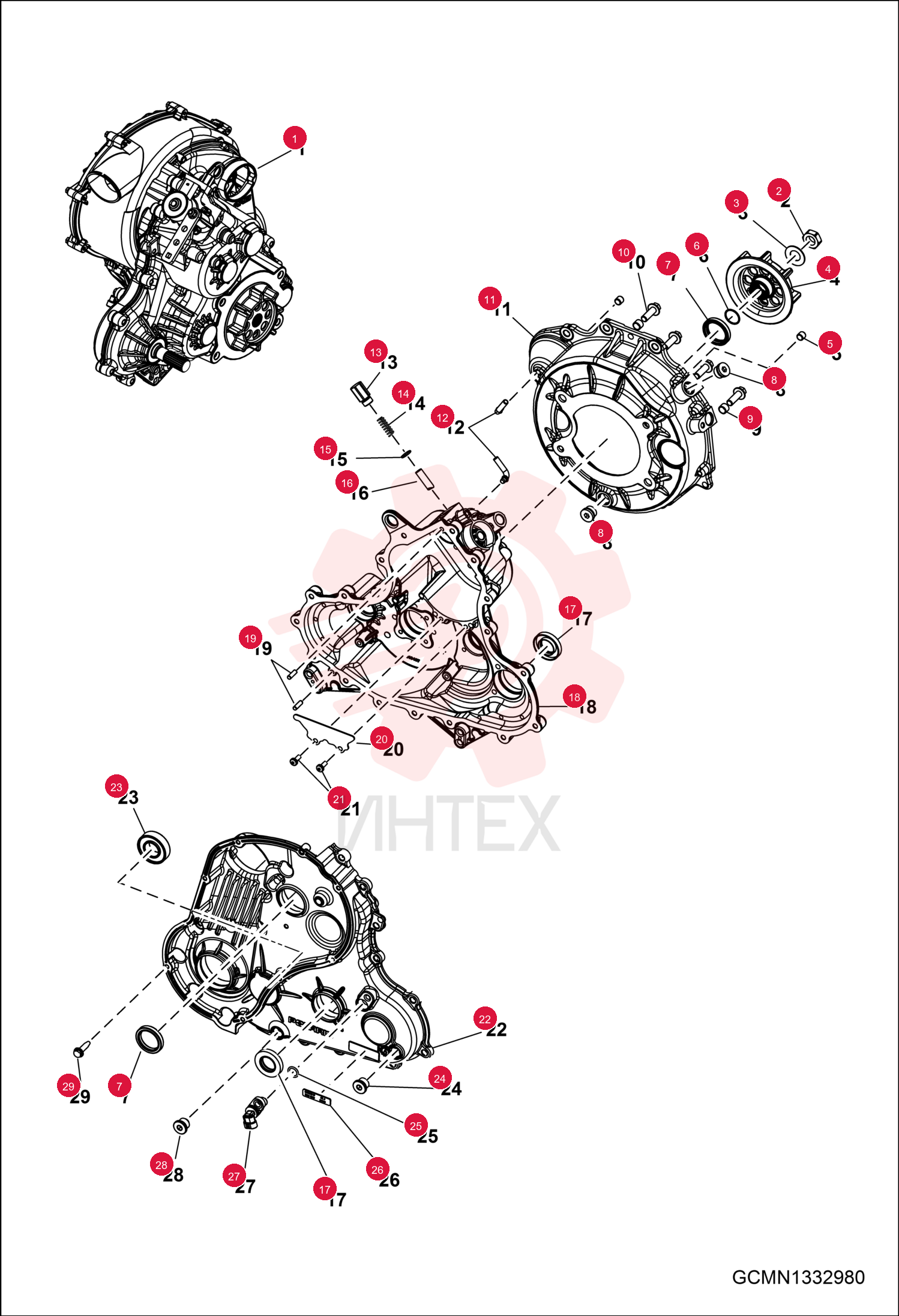

TRANSMISSION, MAIN 7023463 (1)

TRANSMISSION, MAIN 7023463 (1)

TRANSMISSION, MAIN 7023463 (1)

1 7023463

  • 7023463 - TRANSMISSION
  • MAIN
  • for additional components - complete

2 7017602

  • 7017602 - NUT

3 7017753

  • 7017753 - WASHER

4 7020302

  • 7020302 - COUPLER
  • TRANSMISSION

5 7017517

  • 7017517 - PIN
  • DOWL HOL M11X10

6 7017614

  • 7017614 - O-RING

7 7017690

  • 7017690 - SEAL
  • TRIPLE LIP

8 7017638

  • 7017638 - PLUG
  • HEX HOLLOW W/ O-RING
  • hollow - W/ O-ring

9 7017628

  • 7017628 - PIPE
  • KNOCK

10 7017676

  • 7017676 - SCREW

11 7016082

  • 7016082 - BELLOWS
  • BELLHOUSING
  • DIESEL
  • MACH

12 7017745

  • 7017745 - TUBE
  • VENT 90-1/4" HOSE

13 7017635

  • 7017635 - PLUG
  • DETENT

14 7020282

  • 7020282 - SPRING
  • COMPRESSION

15 7017613

  • 7017613 - O-RING

16 7017473

  • 7017473 - BULLET
  • DETENT

17 7017696

  • 7017696 - SEAL
  • VITON TRIPLE LIP

18 7020256

  • 7020256 - HOUSING
  • MAIN

19 7017620

  • 7017620 - PIN
  • DOWEL
  • 6 X 20

20 7017508

  • 7017508 - DEFLECTOR
  • OIL

21 7017678

  • 7017678 - SCREW

22 7020255

  • 7020255 - HOUSING
  • GTO COVER

23 7017441

  • 7017441 - BEARING

24 7017639

  • 7017639 - PLUG
  • SKT HD 1SO 6149 M18 X 1.5

25 7017616

  • 7017616 - O-RING

26 7020276

  • 7020276 - OIL
  • TRANSMISSION

27 7248188

  • 7248188 - SENSOR
  • TRANS SPEED
  • Was 7016666

28 7017640

  • 7017640 - PLUG
  • SKT HEAD W/MAG M18X1.5

29 7017682

  • 7017682 - SCREW
