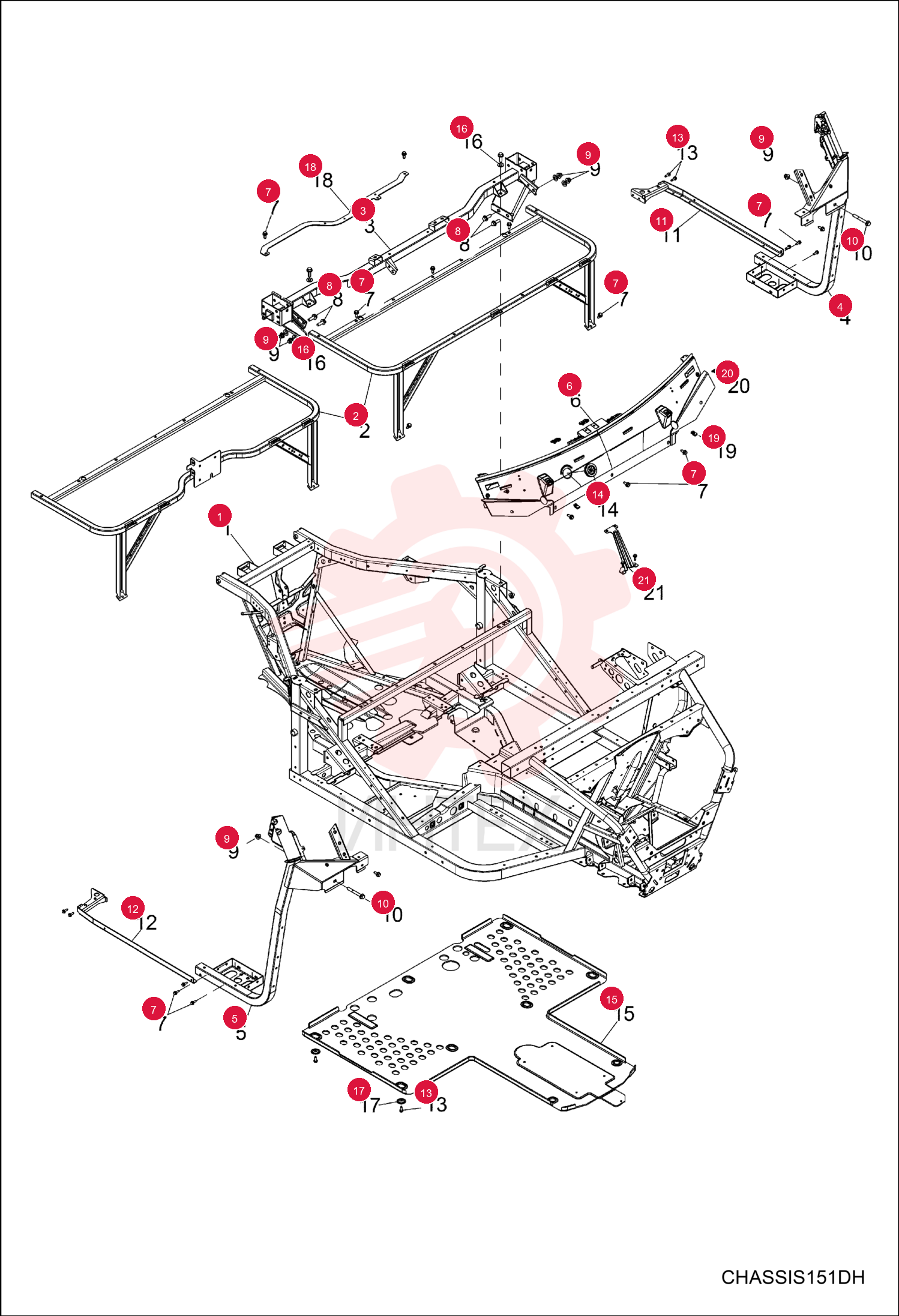

MAIN FRAME 7265120 (2)

MAIN FRAME 7265120 (2)

MAIN FRAME 7265120 (2)

1 7265120

  • 7265120 - MAIN FRAME

2 7265119

  • 7265119 - FRAME

3 7258283

  • 7258283 - FRAME

4 7025521

  • 7025521 - SUPPORT
  • CAB REAR

5 7257100

  • 7257100 - SUPPORT
  • FLOOR LH BLK

6 7257101

  • 7257101 - SUPPORT
  • FLOOR RH BLK

7 7252830

  • 7252830 - SUPPORT
  • WINDOW

8 7016175

  • 7016175 - BOLT

9 7016642

  • 7016642 - SCREW

10 7016518

  • 7016518 - NUT

11 7025497

  • 7025497 - BOLT
  • FLANGE

12 7025528

  • 7025528 - PANEL
  • LOWER

13 7025529

  • 7025529 - PANEL
  • LOWER

14 7016645

  • 7016645 - SCREW

15 7025411

  • 7025411 - GROMMET

16 7025550

  • 7025550 - PLATE
  • SKID

17 7025509

  • 7025509 - WASHER
  • FLAT

18 7016760

  • 7016760 - WASHER
  • DOMED

19 7266584

  • 7266584 - BRACKET
  • SUPPORT

20 7023820

  • 7023820 - NUT

21 7016585

  • 7016585 - RIVET
  • TUFLOK
  • .315
  • .325X.787

22 7258285

  • 7258285 - BRACKET
  • CENTERING
