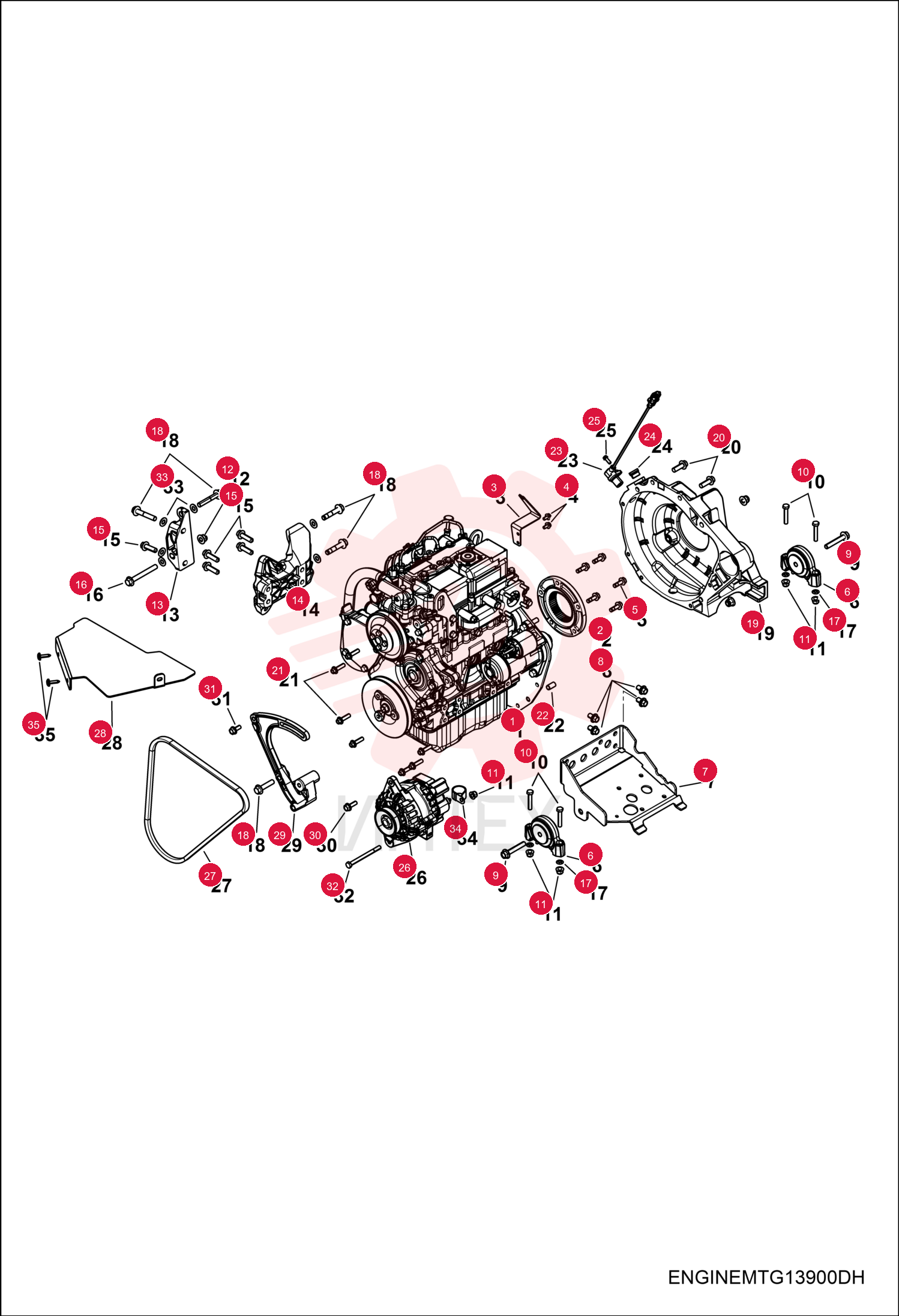

ENGINE UTV 3650

ENGINE UTV 3650

ENGINE UTV 3650

1 7280931REM

  • 7280931REM - ENGINE UTV 3650

2 7280931

  • 7280931 - ENGINE UTV 3650

3 7025354

  • 7025354 - COUPLER

4 7214817

  • 7214817 - COUPLER
  • FLANGE

5 7025365

  • 7025365 - MOUNT
  • CABLE

6 7212034

  • 7212034 - BRACKET
  • CABLE

7 7016625

  • 7016625 - SCREW

8 7024206

  • 7024206 - SCREW

9 7025324

  • 7025324 - MOUNT
  • ISOLATOR

10 7025545

  • 7025545 - MOUNT
  • ENG

11 7016639

  • 7016639 - SCREW

12 7025489

  • 7025489 - BOLT

13 7025491

  • 7025491 - BOLT

14 7016526

  • 7016526 - NUT

15 7016520

  • 7016520 - NUT

16 7260657

  • 7260657 - MOUNT
  • ENG
  • Was 7027856

17 7027687

  • 7027687 - MOUNT
  • ENGINE

18 7025502

  • 7025502 - BOLT
  • FLANGE

19 7025504

  • 7025504 - BOLT
  • FLANGE

20 7025505

  • 7025505 - PALNUT

21 7025503

  • 7025503 - BOLT
  • FLANGE

22 7027498

  • 7027498 - BELLHOUSING
  • W/Ref. 22

23 7020321

  • 7020321 - BOLT

24 7016638

  • 7016638 - SCREW

25 7017517

  • 7017517 - PIN
  • DOWL HOL M11X10

26 7025326

  • 7025326 - SENSOR
  • MAGNETIC

27 7017638

  • 7017638 - PLUG
  • HEX HOLLOW W/ O-RING

28 7025487

  • 7025487 - BOLT
  • FLANGE

29 7025381

  • 7025381 - ALTERNATOR 90 AMP

30 7027653

  • 7027653 - BELT
  • ALT

31 7025549

  • 7025549 - BRACKET
  • COVER
  • Was 7252914

32 7025549

  • 7025549 - BRACKET
  • COVER

33 7016177

  • 7016177 - BOLT

34 7023423

  • 7023423 - BOLT

35 7025499

  • 7025499 - BOLT

36 7025509

  • 7025509 - WASHER
  • FLAT

37 7027722

  • 7027722 - CLAMP
  • WIRE FLEXIBLE

38 7024692

  • 7024692 - BOLT
