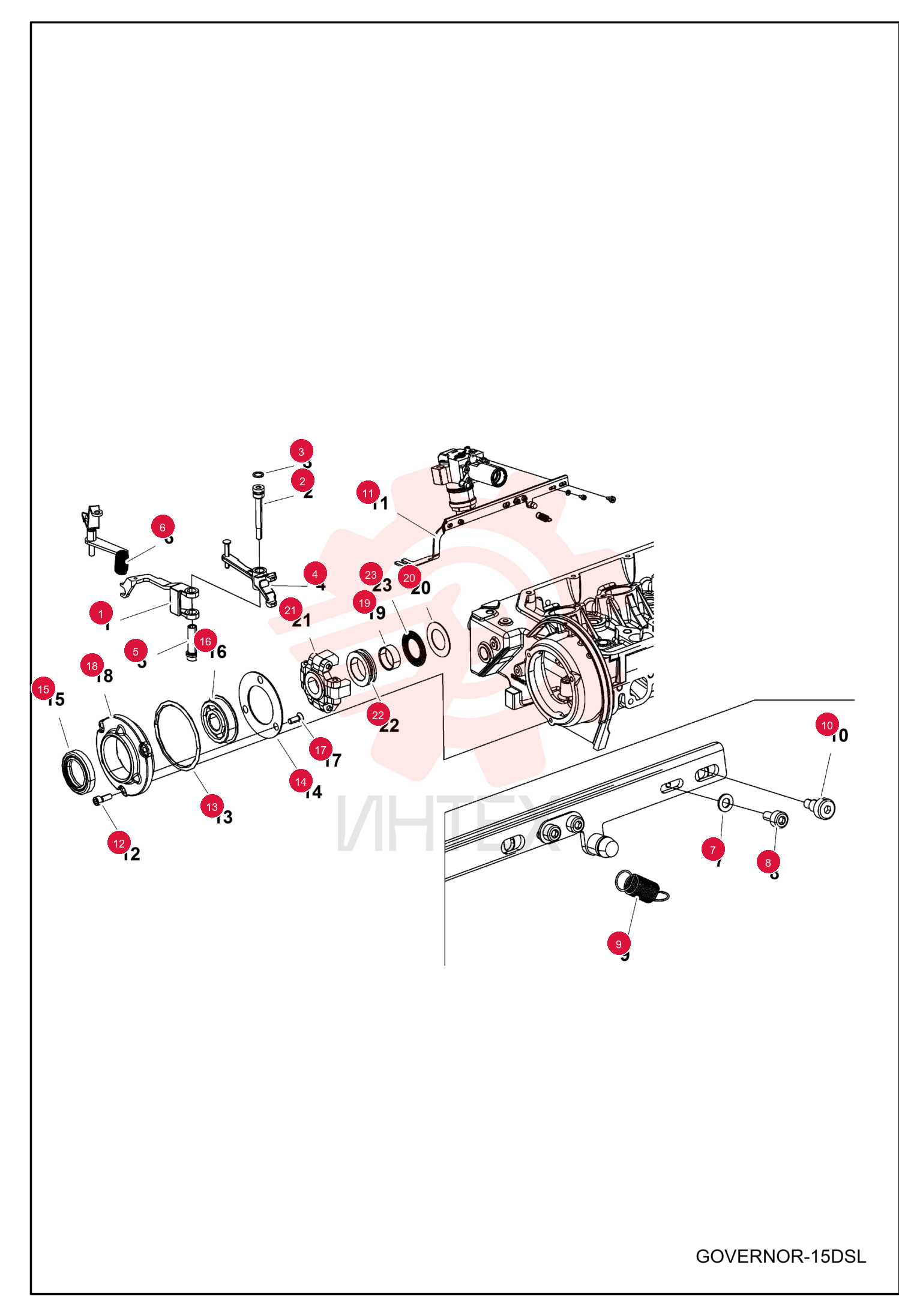

GOVERNOR 7258834 (2)

GOVERNOR 7258834 (2)

GOVERNOR 7258834 (2)

1 7258834

  • 7258834 - GOVERNOR
  • W/Ref. 7 & 8

2 7258835

  • 7258835 - PIN

3 7258836

  • 7258836 - SEAL
  • OIL

4 7258837

  • 7258837 - JOURNAL

5 7258838

  • 7258838 - SLEEVE

6 7258839

  • 7258839 - SPRING
  • GOVERNOR

7 7258840

  • 7258840 - WASHER

8 7258841

  • 7258841 - SCREW

9 7258842

  • 7258842 - SPRING
  • FUEL CONTROL

10 7258843

  • 7258843 - SCREW

11 7258844

  • 7258844 - RACK
  • FUEL
  • W/Ref. 2-5

12 7258632

  • 7258632 - SCREW

13 7258846

  • 7258846 - SEAL
  • OIL

14 7258847

  • 7258847 - PLATE

15 7258848

  • 7258848 - RING
  • SEAL

16 7258849

  • 7258849 - BEARING BALL

17 7258850

  • 7258850 - SCREW

18 7258851

  • 7258851 - COVER

19 7258852

  • 7258852 - SLEEVE

20 7258853

  • 7258853 - WASHER
  • THRUST

21 7258854

  • 7258854 - SUPPORT

22 7258855

  • 7258855 - SLEEVE

23 7258856

  • 7258856 - ROLLER
