418.0
/

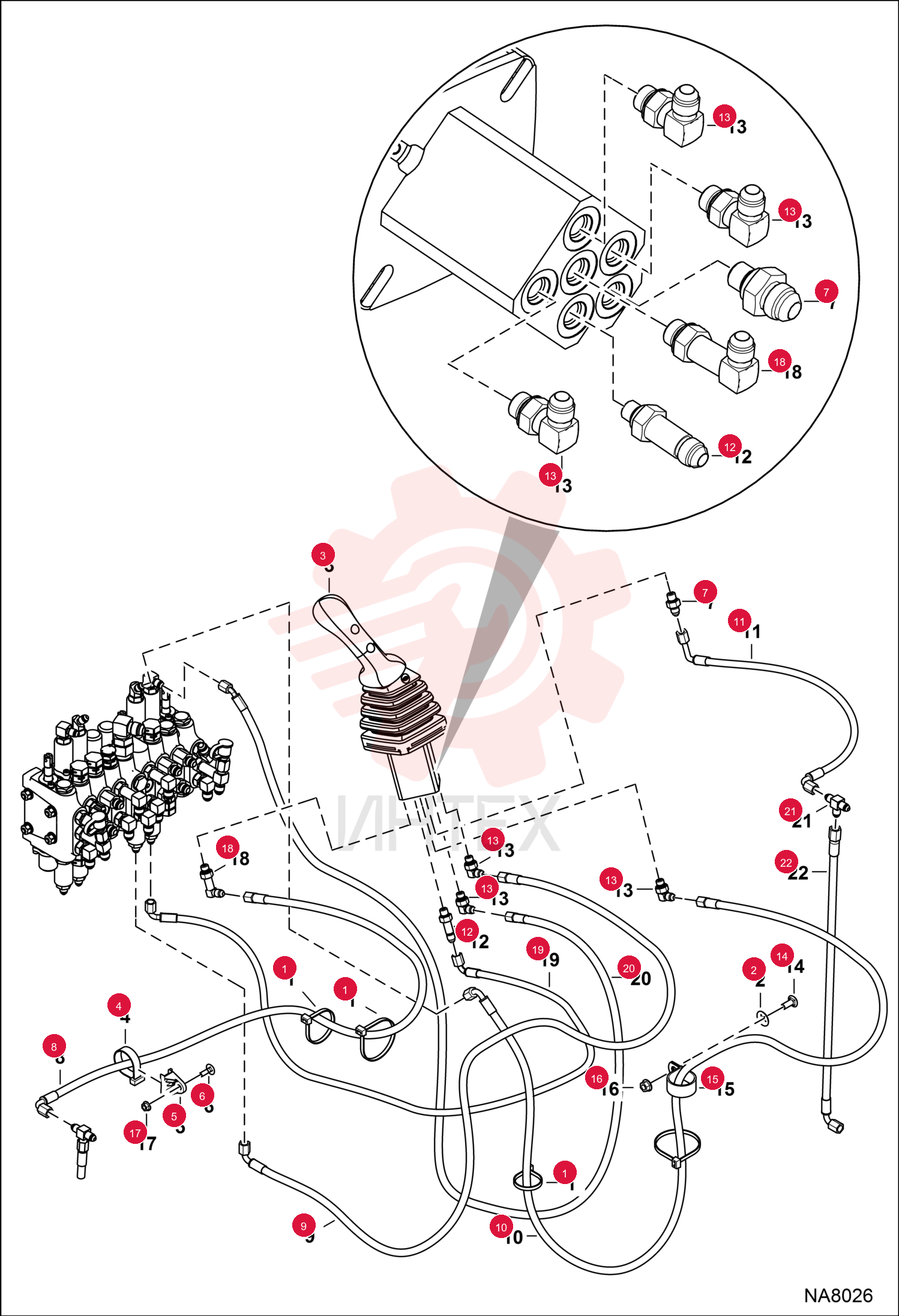

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

STRAP, TIE 6624289 (5)

1 6624289

  • 6624289 - STRAP
  • TIE

2 6675859

  • 6675859 - RETAINER

3 7220730

  • 7220730 - JOYSTICK
  • RH

4 6678669

  • 6678669 - STRAP T250 H/D

5 6678818

  • 6678818 - MOUNT

6 7157353

  • 7157353 - BOLT CARRIAGE 8.8

7 79K4

  • 79K4 - O RING 10

8 15KB0404

  • 15KB0404 - FTG HYD S CONNECTOR

9 7173378

  • 7173378 - HOSE ASSY
  • Was 7142344

10 7345007

  • 7345007 - HOSE HYDRAULIC ASSY
  • Was 7142341

11 7177355

  • 7177355 - HOSE ASSY
  • Was 7142341

12 7177356

  • 7177356 - HOSE ASSY
  • Was 7142343

13 7200430

  • 7200430 - HOSE
  • HYD

14 79K4

  • 79K4 - O RING 10

15 16KB0404

  • 16KB0404 - FITTING
  • HYD CONNECTOR
  • Was 16KB404

16 79K4

  • 79K4 - O RING 10

17 17KB0404

  • 17KB0404 - FTG HYD ELBOW 90
  • Was 17KB404

18 28CM820

  • 28CM820 - BOLT CARRIAGE 8.8

19 30H79

  • 30H79 - CLAMP

20 43DM8

  • 43DM8 - NUT FLANGED HEX

21 51DM6

  • 51DM6 - NUT HX THDLK PREAPPL

22 79K4

  • 79K4 - O RING 10

23 7173375

  • 7173375 - FTG HYD ELBOW 90

24 7345009

  • 7345009 - HOSE HYDRAULIC ASSY

25 7177360

  • 7177360 - HOSE ASSY

26 7177359

  • 7177359 - HOSE ASSY

27 10K3

  • 10K3 - FTG HYDR UNION TEE

28 7200431

  • 7200431 - HOSE
  • HYD
