Bobcat
/
425.0
/

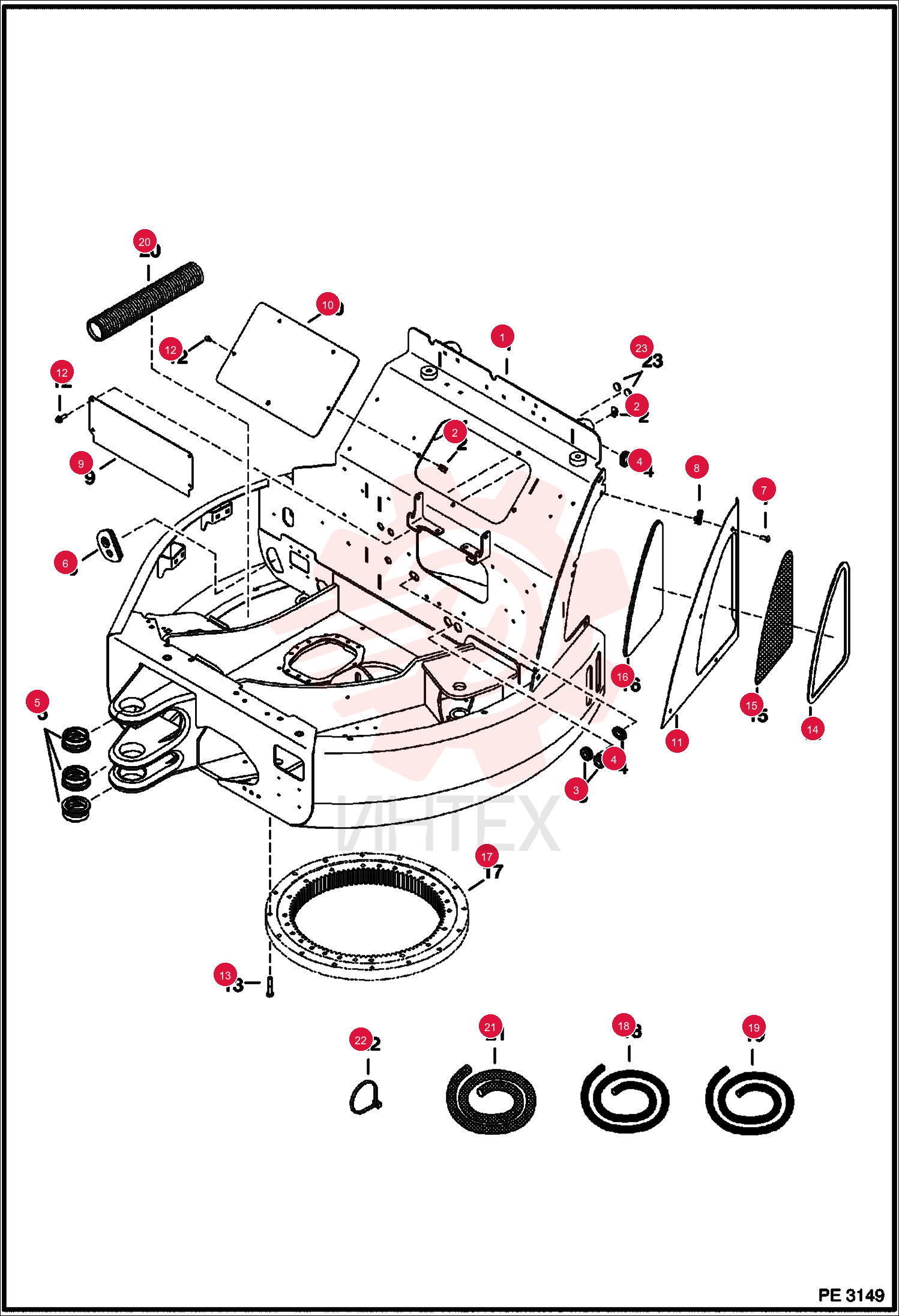

UPPERSTRUCTURE 7122179 (1)

UPPERSTRUCTURE 7122179 (1)

UPPERSTRUCTURE 7122179 (1)

1 7122179

  • 7122179 - UPPERSTRUCTURE

2 6676169

  • 6676169 - NUT

3 6810133

  • 6810133 - GROMMET

4 6681886

  • 6681886 - GROMMET

5 6807956

  • 6807956 - BUSHING

6 7165623

  • 7165623 - GROMMET
  • Was 6815653

7 6817769

  • 6817769 - SCREW

8 6675722

  • 6675722 - NUT

9 7128946

  • 7128946 - COVER PLATE

10 7129696

  • 7129696 - COVER PLATE

11 7137287

  • 7137287 - COVER LH

12 29CM820

  • 29CM820 - SCREW FLNGE HEX CAP

13 55CM1260

  • 55CM1260 - SCREW

14 7130461

  • 7130461 - SCREEN

15 6678952

  • 6678952 - RING
  • SLEW

16 6691060

  • 6691060 - CORD
  • BULK STRIP FILLER /FT
  • bulk - sold per foot

17 6691059

  • 6691059 - CORD
  • BULK CHANNEL LOCKING /FT
  • bulk - sold per foot

18 6643249

  • 6643249 - CONDUIT BULK/FT
  • bulk - sold per foot

19 6624289

  • 6624289 - STRAP
  • TIE

20 6697942

  • 6697942 - PLUG
  • NYLON
