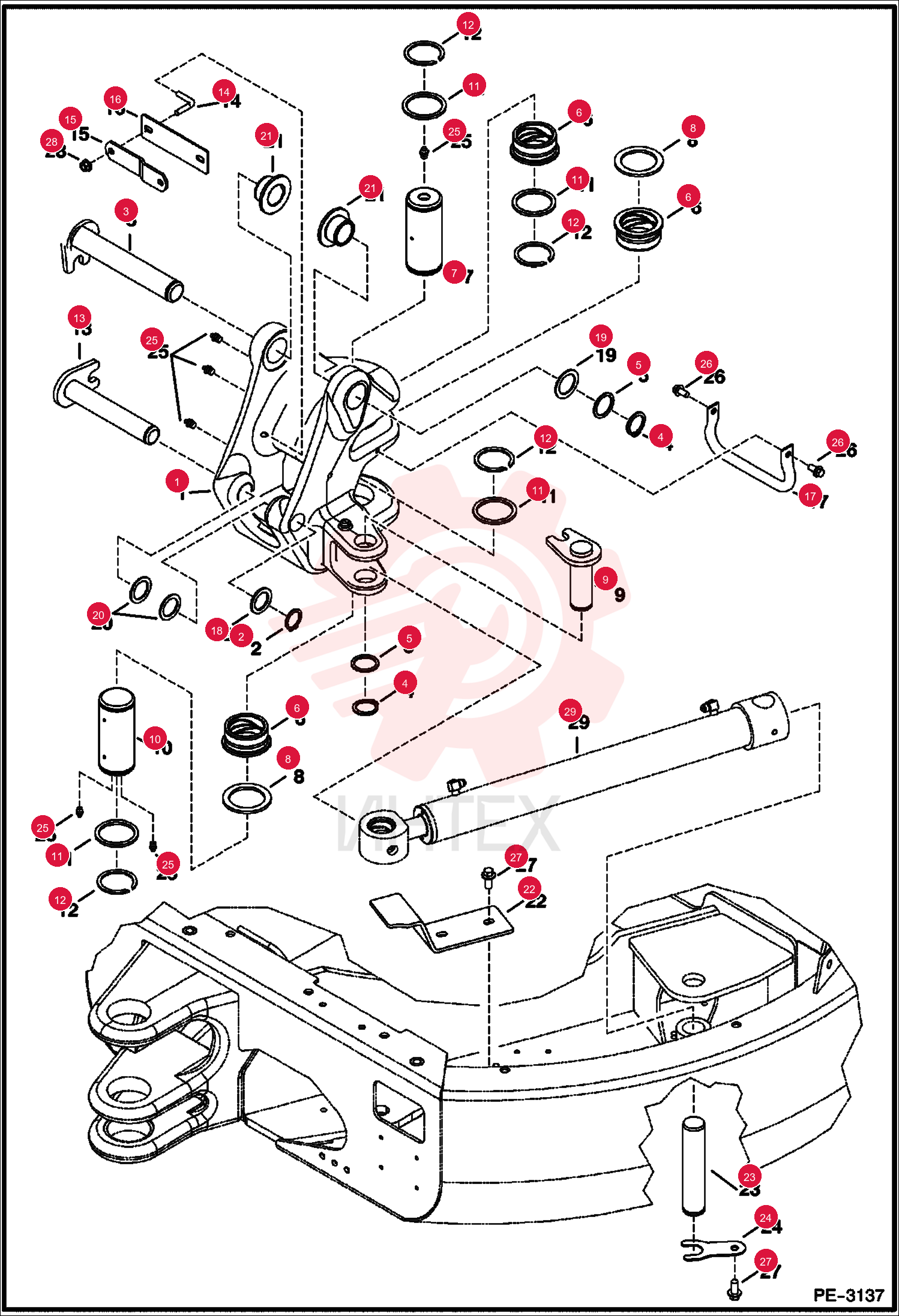

FRAME 6810691 (1)

FRAME 6810691 (1)

FRAME 6810691 (1)

1 6810691

  • 6810691 - FRAME

2 6534154

  • 6534154 - RING
  • RETAINER

3 6589323

  • 6589323 - PIN

4 6665618

  • 6665618 - RING
  • SNAP

5 6666549

  • 6666549 - WASHER

6 6807956

  • 6807956 - BUSHING

7 7135322

  • 7135322 - PIN
  • Do not use Ref. 11 on bottom side with this pin.

8 6807962

  • 6807962 - WASHER

9 6807964

  • 6807964 - PIN

10 7135321

  • 7135321 - PIN
  • Do not use Ref. 11 on bottom side with this pin.

11 6808174

  • 6808174 - WASHER

12 6808175

  • 6808175 - RING
  • RETAINER

13 6808203

  • 6808203 - PIN

14 6808211

  • 6808211 - BOLT

15 6808600

  • 6808600 - BRACKET

16 6808751

  • 6808751 - SHIELD

17 6534111

  • 6534111 - WASHER
  • 5

18 6810704

  • 6810704 - RING
  • SNAP

19 6811636

  • 6811636 - SPACER

20 6815278

  • 6815278 - BUSHING
  • PRESS FIT

21 7125916

  • 7125916 - STOP
  • SWING

22 7128598

  • 7128598 - PIN

23 7128599

  • 7128599 - RETAINER

24 10H25

  • 10H25 - FTG GREASE STRAIGHT

25 29CM1020

  • 29CM1020 - SCREW HEX 10MMX20MM

26 29CM1225

  • 29CM1225 - BOLT

27 51DM10

  • 51DM10 - NUT HX THDLK PREAPPL
