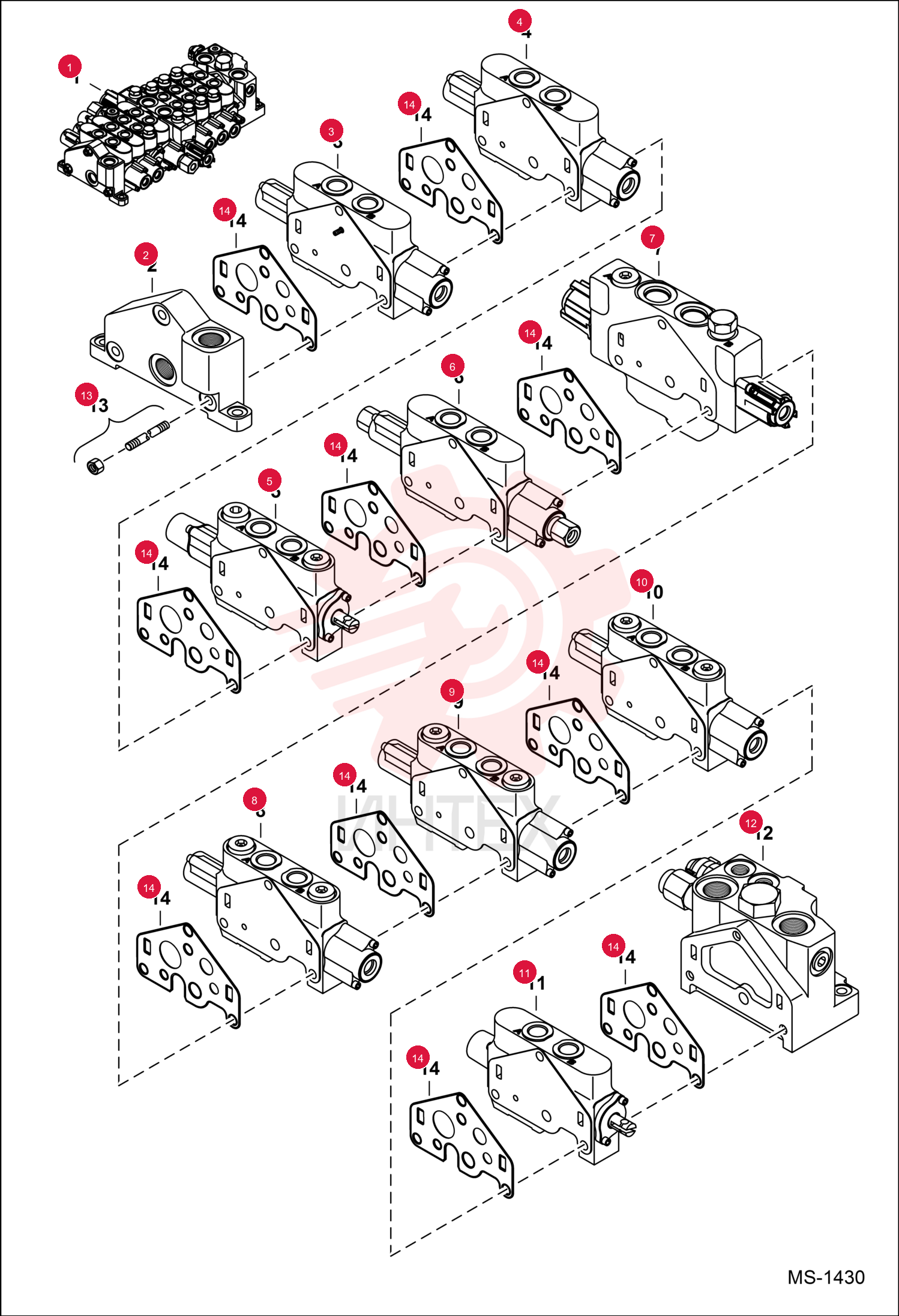

VALVE, CONTROL 6688388 (2)

VALVE, CONTROL 6688388 (2)

VALVE, CONTROL 6688388 (2)

1 6688388

  • 6688388 - VALVE
  • CONTROL
  • Ref. 2-14

2 6691128

  • 6691128 - VALVE SECTION
  • - RH travel

3 6691127

  • 6691127 - VALVE SECTION
  • - LH travel

4 6691126

  • 6691126 - VALVE SECTION
  • - blade

5 6687048

  • 6687048 - VALVE
  • SECTION
  • - slew - Was 6692409

6 6692331

  • 6692331 - VALVE
  • - aux

7 6691123

  • 6691123 - VALVE SECTION
  • - bucket - Was 6691120

8 6691122

  • 6691122 - VALVE SECTION
  • - arm - Was 6691123

9 6691121

  • 6691121 - VALVE SECTION
  • - boom - Was 6691122

10 6691120

  • 6691120 - VALVE SECTION
  • - offset - Was 6691121

11 6691119

  • 6691119 - VALVE
  • SECTION
  • - inlet

12 6691130

  • 6691130 - KIT ROD TIE
  • tie rod

13 6687070

  • 6687070 - GASKET
  • SECTION VALVE
  • Was 6690154
