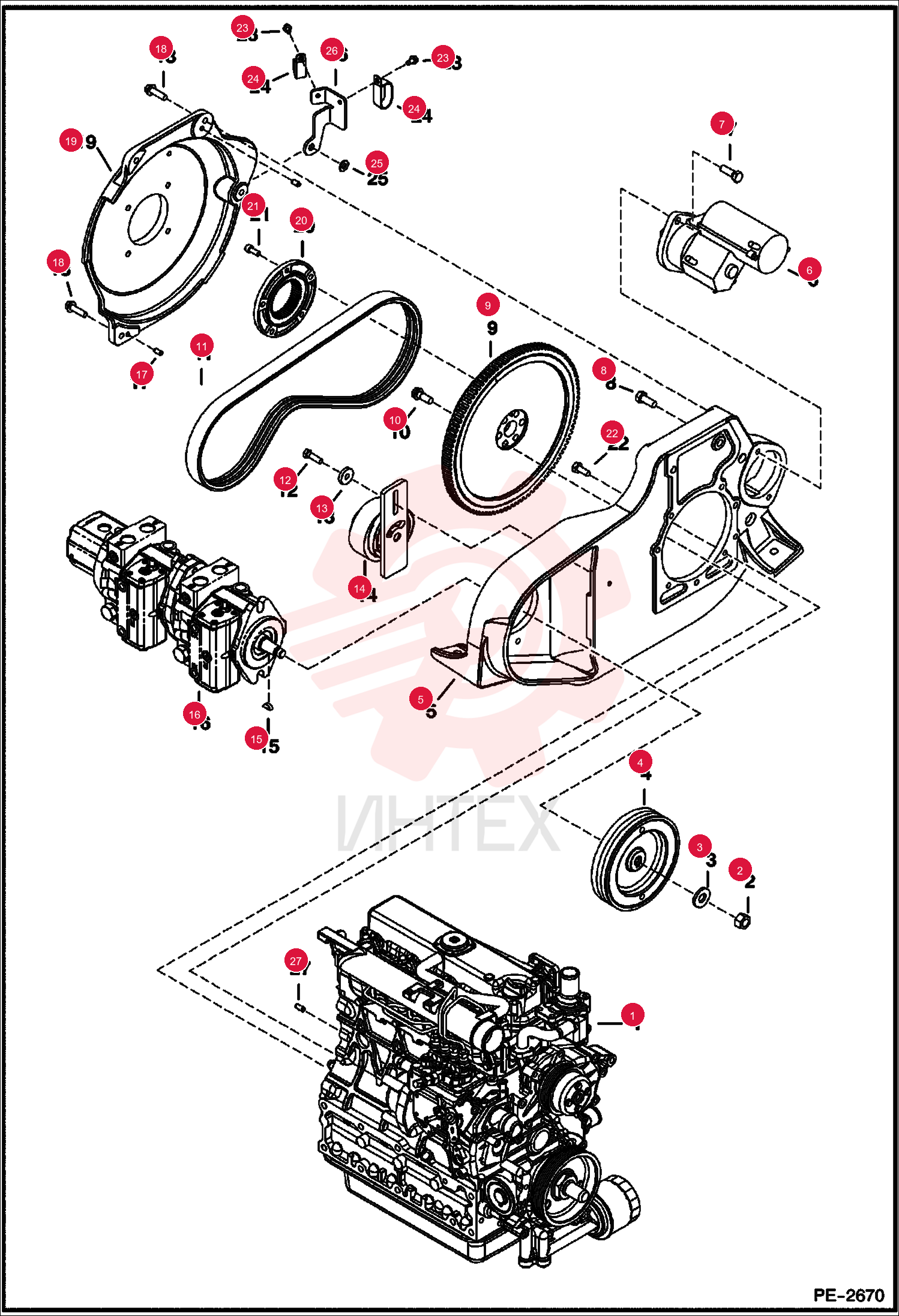

NUT 96D10 (1)

NUT 96D10 (1)

NUT 96D10 (1)

1 96D10

  • 96D10 - NUT

2 27E10

  • 27E10 - WASHER

3 6811701

  • 6811701 - PULLEY

4 7127604

  • 7127604 - MOUNT
  • ENGINE

5 6681858

  • 6681858 - STARTER

6 4CM1235

  • 4CM1235 - BOLT
  • Was 1CM1235

7 6719828

  • 6719828 - BOLT

8 7158130

  • 7158130 - FLYWHEEL ENGINE ASSEMBLY
  • - Was 6811244

9 6598275

  • 6598275 - BOLT
  • Was 6652487

10 6672021

  • 6672021 - BELT
  • DRIVE
  • Was 6811245

11 17C620

  • 17C620 - BOLT

12 6704484

  • 6704484 - WASHER

13 7101660

  • 7101660 - IDLER ASSEMBLY

14 5J806

  • 5J806 - KEY

15 6679754

  • 6679754 - PUMP

16 7101341

  • 7101341 - PIN
  • Was 21JM816

17 29CM1035

  • 29CM1035 - SCREW HEX 10MMX35MM

18 6811732

  • 6811732 - HOUSING

19 6670757

  • 6670757 - COUPLER
  • FLANGE

20 3GM820

  • 3GM820 - SCREW

21 6719825

  • 6719825 - SCREW FLTHD HEX CAP

22 26GM8016

  • 26GM8016 - SCREW SELF TAPPING

23 31H42

  • 31H42 - CLIP

24 15EM100

  • 15EM100 - WASHER

25 7102968

  • 7102968 - BRACKET

26 20JM1025

  • 20JM1025 - DOWEL PIN
  • Use W/ 7127604 mount
