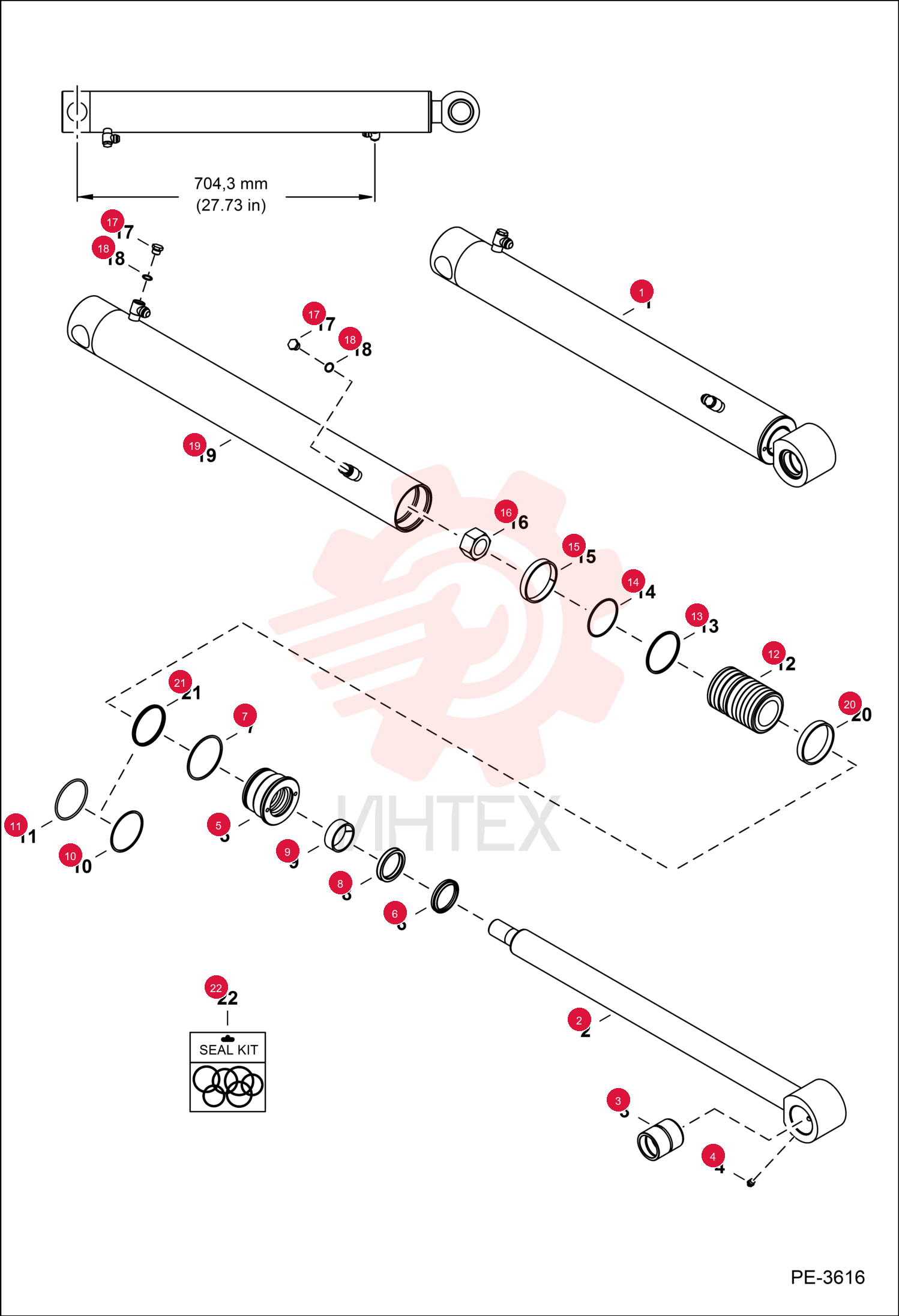

ROD 7146690 (2)
1 7146690
- 7146690 - ROD
- Also Order Ref. 3
- 4 & (2) 6669287 dust seals
2 6812645
- 6812645 - BUSHING
3 10H25
- 10H25 - FTG GREASE STRAIGHT
- straight
4 6818158
- 6818158 - HEAD
5 6686998
- 6686998 - WIPER
- ROD CYL
6 82K236
- 82K236 - O-RING
7 6667328
- 6667328 - SEAL
8 7000772
- 7000772 - RING
- WEAR
- Was 6698134
9 73K234
- 73K234 - RING
- BACK-UP
10 54K40300
- 54K40300 - O-RING
- Was 58K234
11 7147313
- 7147313 - PISTON
12 54K30226
- 54K30226 - O-RING
- Was 25K30226
13 6513466
- 6513466 - PISTON RG
14 7000777
- 7000777 - RING
- WEAR
- Was 6698179
15 6810540
- 6810540 - NUT
16 6812171
- 6812171 - PLUG
- W/Ref. 18
17 75K6
- 75K6 - O-RING
18 6812638
- 6812638 - HOUSING
- Also Order Ref. 20
19 7161470
- 7161470 - SPACER
- add for clearence between shaft and nose casting
20 7161903
- 7161903 - KIT
- SEAL
- Ref. 6-16 - Also Order Ref. 20 if not already used - Was 7156129
