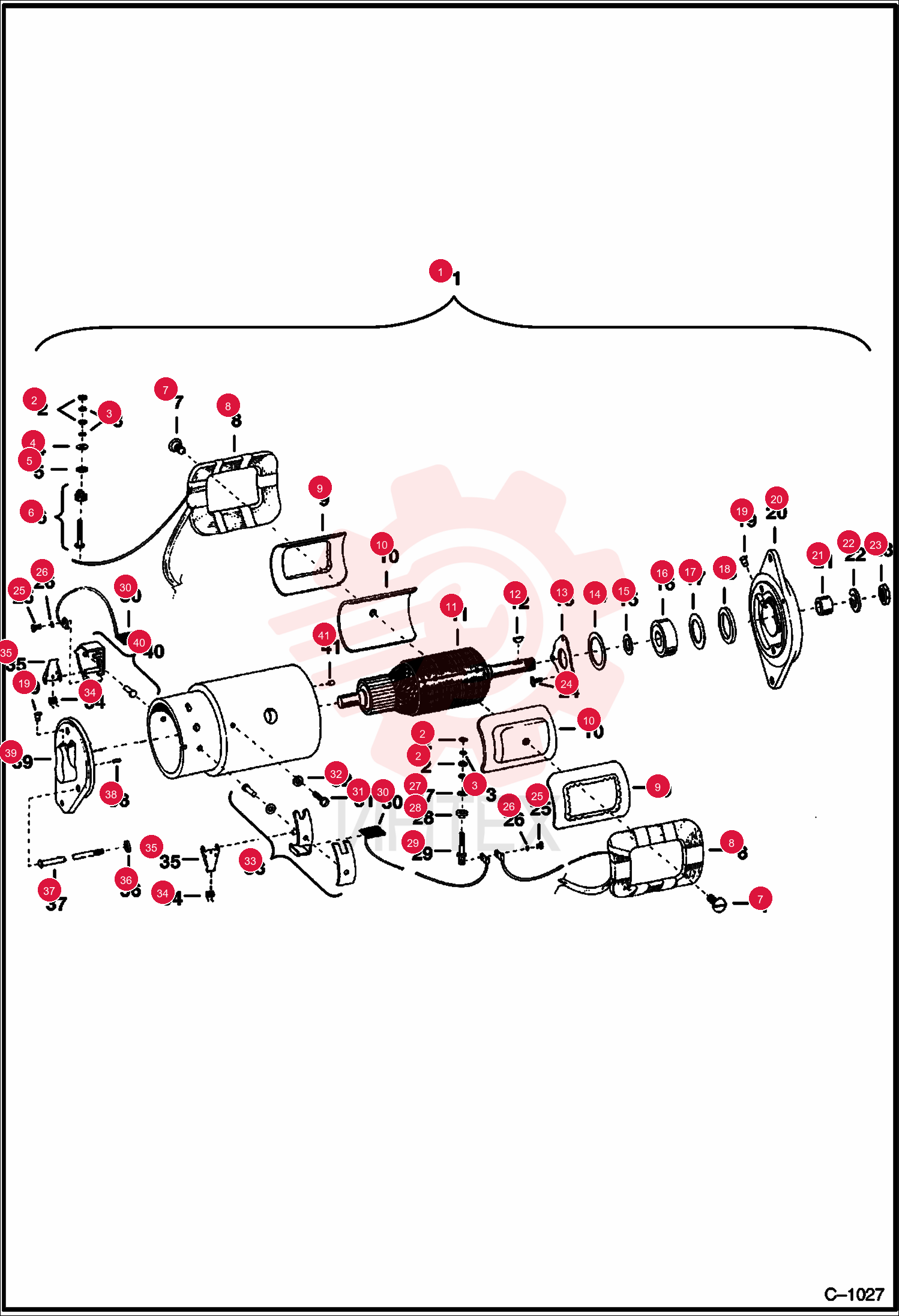

NUT 12D12

NUT 12D12

NUT 12D12

1 12D12

  • 12D12 - NUT
  • terminal

2 863972

  • 863972 - WASHER

3 850329

  • 850329 - WASHER

4 850328

  • 850328 - WASHER
  • insulated

5 850326

  • 850326 - STUD
  • F terminal

6 859377

  • 859377 - SCREW
  • pole shoe

7 861428

  • 861428 - COIL
  • field assembly

8 855630

  • 855630 - INSULATOR
  • field coil

9 855749

  • 855749 - POLE SHOE

10 6J405

  • 6J405 - KEY

11 855622

  • 855622 - GASKET

12 675410

  • 675410 - BEARING
  • ball

13 850316

  • 850316 - PLATE

14 850330

  • 850330 - WASHER
  • felt

15 862643

  • 862643 - FRAME
  • W/Ref. 19

16 850305

  • 850305 - COLLAR
  • spacer

17 4E10

  • 4E10 - WASHER

18 17E6

  • 17E6 - WASHER 10

19 850329

  • 850329 - WASHER

20 4E4

  • 4E4 - WASHER

21 878711

  • 878711 - HOLDER
  • package

22 871542

  • 871542 - SPRING
  • brush

23 880144

  • 880144 - ARM
  • brush

24 4E5

  • 4E5 - WASHER

25 871530

  • 871530 - FRAME
  • W/Ref. 38 & 40

26 878710

  • 878710 - HOLDER
  • package - Ground Brush
