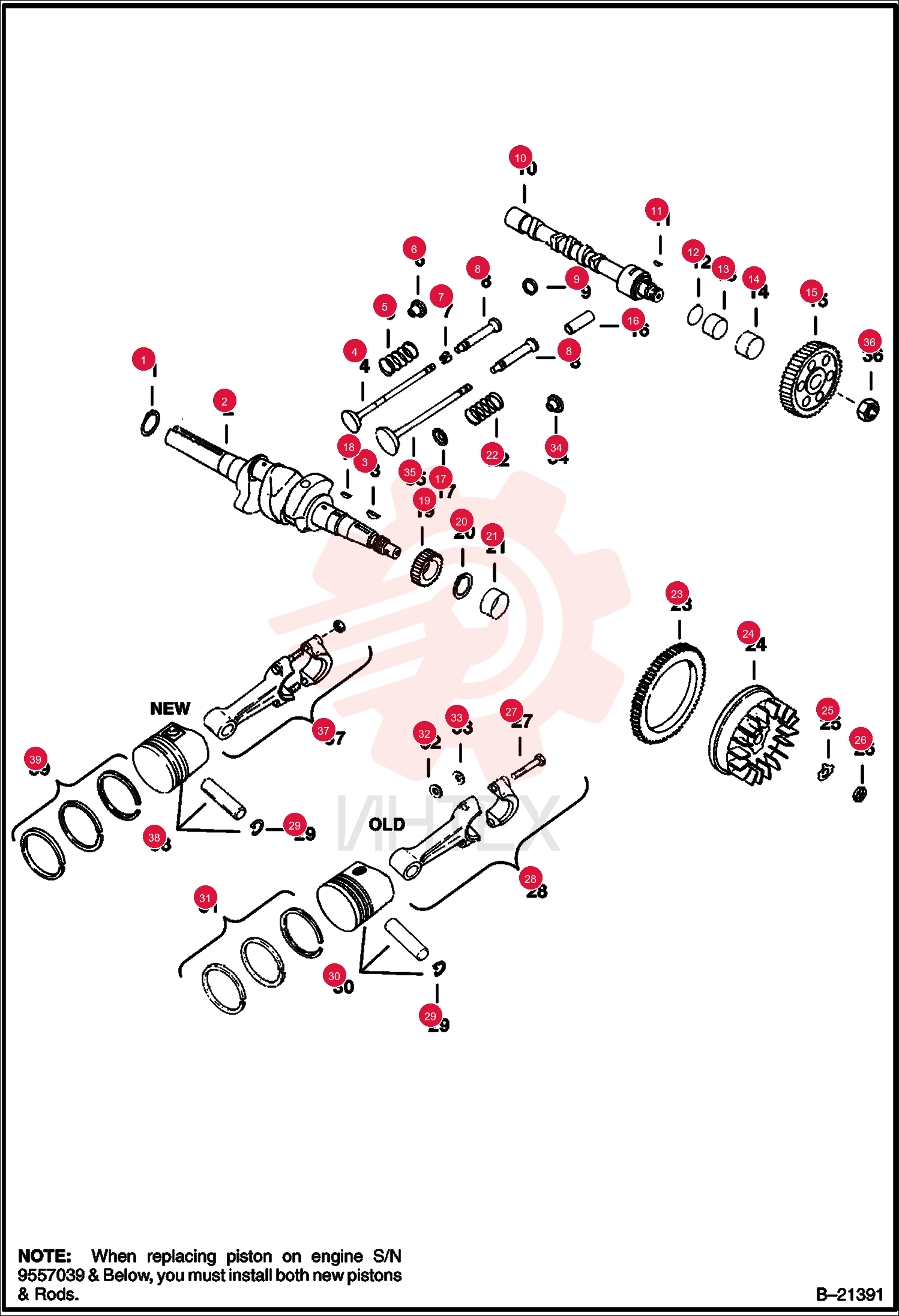

SNAP RING 992753
1 992753
- 992753 - SNAP RING
2 6J808
- 6J808 - KEY
- WOODRUFF
3 6519668
- 6519668 - VALVE
- exhaust
4 6518898
- 6518898 - SPRING
- valve exhaust
5 6632091
- 6632091 - ROTOR
- exhaust valve - Was 6518870
6 6518861
- 6518861 - KEY
7 6518872
- 6518872 - INSERT
- intake valve
8 6J404
- 6J404 - KEY
- WOODRUFF
9 6517232
- 6517232 - PLUG
10 6512183
- 6512183 - BEARING
- front camshaft
11 6518882
- 6518882 - GUIDE
- VALVE
12 6518883
- 6518883 - SEAT
- valve spring
13 5J605
- 5J605 - KEY
14 659065
- 659065 - RING
15 6513701
- 6513701 - BEARING
- .010" (0
- 25mm)
16 6513702
- 6513702 - BEARING
- .020" (0
- 51mm)
17 6512201
- 6512201 - FLYWHEEL
- W/Ring Gear
18 8D16
- 8D16 - NUT
19 6513571
- 6513571 - ROD
- .010" (0
- 25mm) undersized
20 6513570
- 6513570 - ROD
- Std.
21 6513949
- 6513949 - RETAINER
- piston pin
22 6632360
- 6632360 - P AND R ASSY
- W/Rings Std. - W/Ref. 29 & 31 - Was 6514699
23 6632361
- 6632361 - P AND R ASSY
- W/Rings .003" (0
- 08 mm) - W/Ref. 29 & 31 - Was 6514700
24 6632362
- 6632362 - P AND R ASSY
- W/Rings .010" (0
- 25 mm) - W/Ref. 29 7 31 - Was 6514701
25 6632363
- 6632363 - P AND R ASSY
- W/Rings .020" (0
- 51 mm) - W/Ref. 39 & 31 - Was 6514702
26 6632364
- 6632364 - P AND R ASSY
- W/Rings .030" (0
- 76 mm) - W/Ref. 29 & 31 - Was 6514703
27 4E6
- 4E6 - WASHER
28 890414
- 890414 - WASHER
29 6512175
- 6512175 - RETAINER
- valve spring
30 6512176
- 6512176 - VALVE
- RELIEF
31 6654125
- 6654125 - NUT
32 6661129
- 6661129 - PISTONSTD
- std. - W/Ref. 39
33 6661130
- 6661130 - ASSY
- PISTON
- .003" (0
- 08 mm) - W/Ref. 39
34 6661131
- 6661131 - ASSY
- PISTON
- .010" (0
- 25 mm) - W/Ref. 39
35 6661133
- 6661133 - ASSY
- PISTON
- .030" (0
- 76 mm) - W/Ref. 39
36 6661134
- 6661134 - RING SET
- .010" (0
- 25mm)
37 6661135
- 6661135 - RING SET
- .020" (0
- 51mm)
38 6661136
- 6661136 - RING SET
- .030" (0
- 76mm)
39 6661181
- 6661181 - RING SET
- std.
