Bobcat
/
533
/

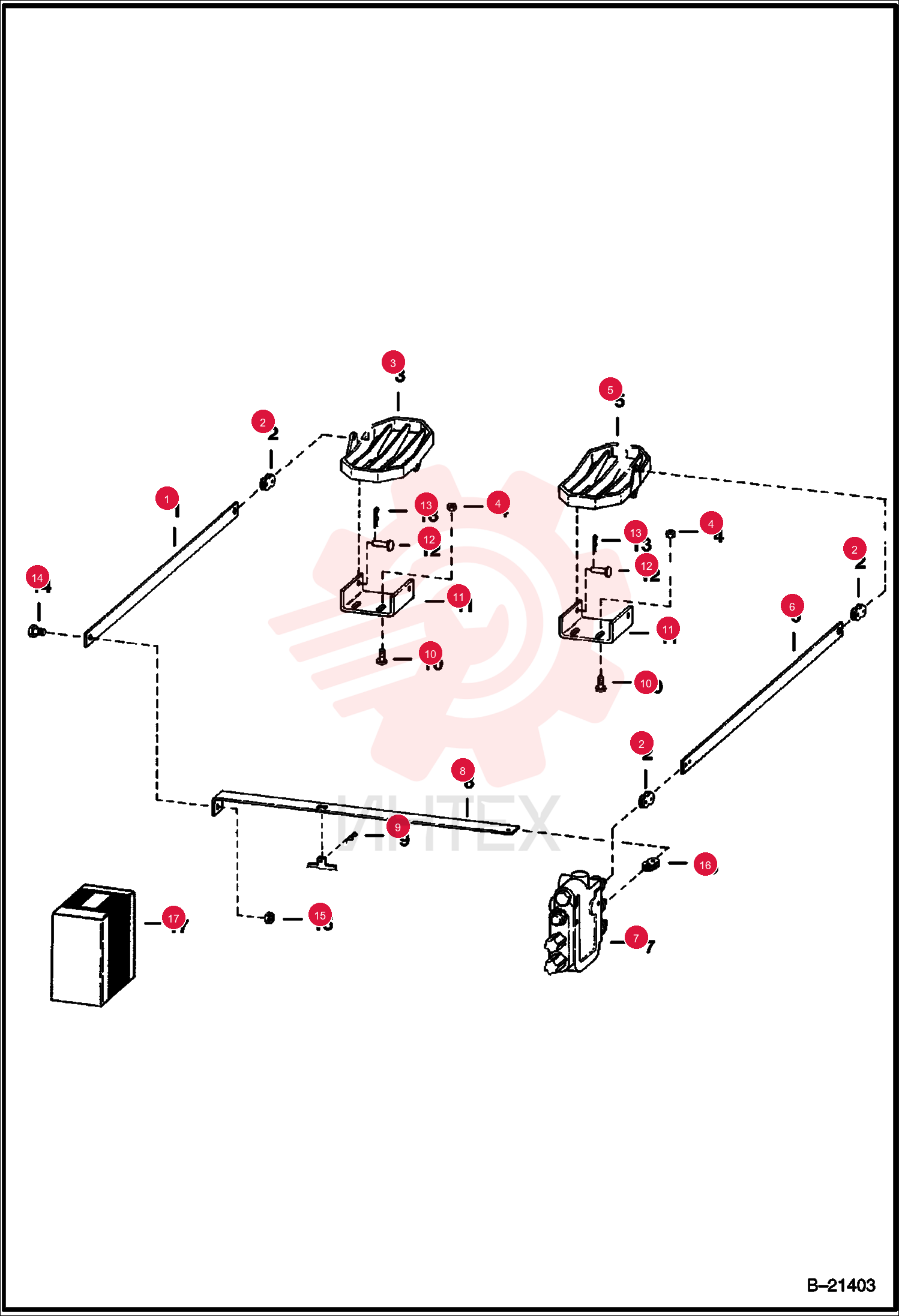

LINK 6552711

LINK 6552711

LINK 6552711

1 6552711

  • 6552711 - LINK

2 6515186

  • 6515186 - CONNECTOR LINK

3 6552669

  • 6552669 - PEDAL

4 57D6

  • 57D6 - NUT HEX FLNG GR8

5 6552670

  • 6552670 - PEDAL

6 6552713

  • 6552713 - LINK

7 6552710

  • 6552710 - LINK

8 1318565

  • 1318565 - PIN 5

9 37C616

  • 37C616 - BOLT
  • Was 6704349

10 6552838

  • 6552838 - CHANNEL

11 1737762

  • 1737762 - PIN

12 1306637

  • 1306637 - PIN HAIR

13 17C612

  • 17C612 - SCREW HEX CAP

14 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

15 6558077

  • 6558077 - LINK
  • CONNECTING

16 6560111

  • 6560111 - KIT
  • PEDAL
  • pedal - To change to new style pedals
